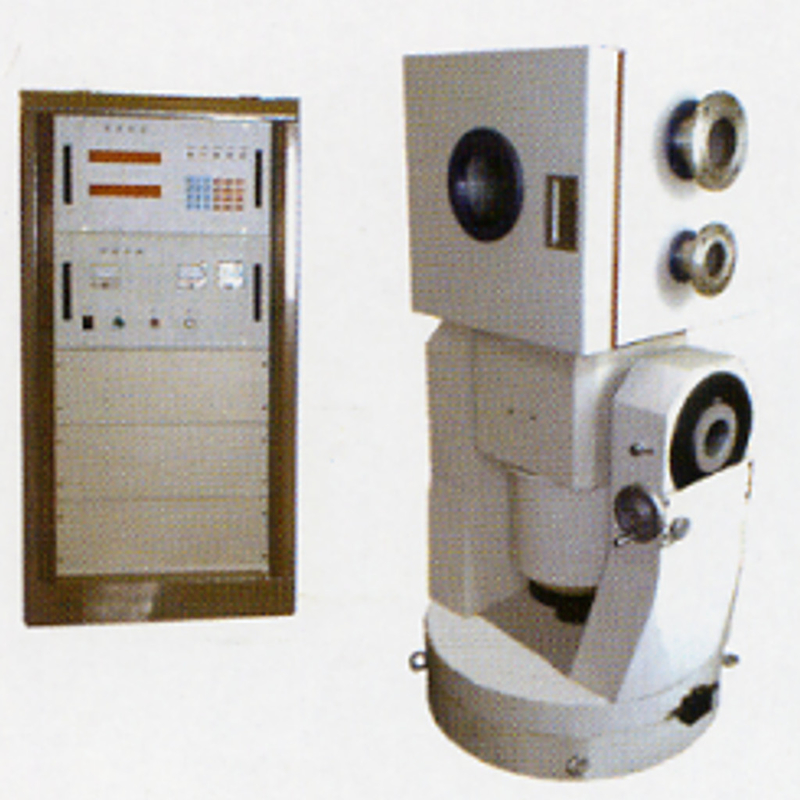

2TS350 dual axis tilting type turntable with temperature chamber could apply to high accuracy test of the dynamic and static parameters of all kinds of dual free degree inertial device and system, and it could proceed full temperature test.
| Turntable | |
| Load capacity | 16kg |
| Load size | 200mm x 300mm |
| Table facet diameter | Ø350mm |
| Table facet flatness | 0.01mm |
| Table facet jerk value | 0.01mm |
| Inclination rotary accuracy | ±2″ |
| Working mode |
Inner loop: position, rate, sway; outer loop: manual position |
| Angular position measure accuracy | Inner: ±3″ Outer: ±5″ |
| Angular position measure resolution | 0.36″ |
| Angular position measure repeatibility | ±3″ |
| Angular position control accuracy | ±3″ |
| rate range | 0.001°/s~600°/s |
| rate accuracy | ±5 x 10-1(360° interval) |
| rate smoothness | ±1 x 10-1(1° interval) |
| Max angular acceleration | 200°/s2 |
| Temperature chamber | |
| Temperature control range | -55°c~+85°c |
| Temperature accuracy and smoothness | ±0.2°c |
| Temperature control uniformity | ±0.5°c(random 5 points distribution) |
| Temperature rise and drop rate | 2°c/min(freon refrigeration) |
