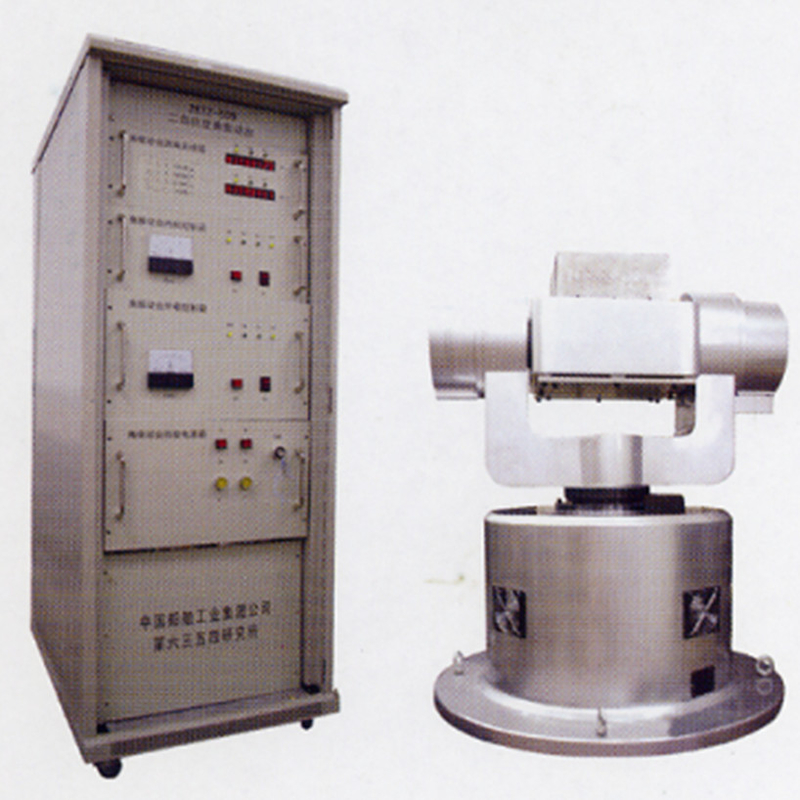

dual axis angular vibration turntable precision 2-axis vibration test bench
It is mainly used to simulate the angular vibration environment to test the bearing ability, tracking accuracy, resonance point etc of image-stabilization platform and so on test subject.
General features
| Load capacity | 30kg |
| Max measured object size | 350mm x 350mm x 350mm |
| Two axis intersection | ≤Ø0.35mm |
| Axis perpendicularity | 2’’ |
| Rotary angle range | ±20° |
| Working mode | Position, vibration and make zero |
Performance index
| Inner ring | Outer ring | |
| Angular position measure accuracy | ±3.6’’ | ±3.6’’ |
| Angular position measure resolution | 0.36’’ | 0.36’’ |
| Angular position measure repeatability | ±2’’ | ±2’’ |
| Angular position control accuracy | ±5’’ | ±5’’ |
| Angular vibration frequency | ≥35Hz | ≥10Hz |
| Max angular amplitude | ±20° | ±10° |
| Angular vibration waveform distortion degree | <5% | <5% |
| Max angular rate | 150°/s | 120°/s |
| Max angular acceleration | 5000°/s2 | 2000°/s2 |
