2 Axis Position Rate Turntable 10kg With Temperature Chamber

2 Axis Position Rate Turntable 10kg With Temperature Chamber
Features Gallery Product Description Request A Quote
Load Capacity: ≥10kg
Table Facet Diameter: Ø320mm
Table Facet Flatness: ≤0.01mm
Table Facet Jerk Value: ≤0.01mm
Rotary Accuracy: ±2''
Slip Rings: User Signal 50 Rings/1A
Angular Position Measure Accuracy: ±5''
Rate Range: ±0.0005°/s~±500°/s
High Light:

2 Axis Position Rate Turntable


Position Rate Turntable 10kg


Temperature Chamber Position Rate Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: TD-300
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 6 month
Payment Terms: T/T
Supply Ability: 1 pcs in 6 month
Product Description

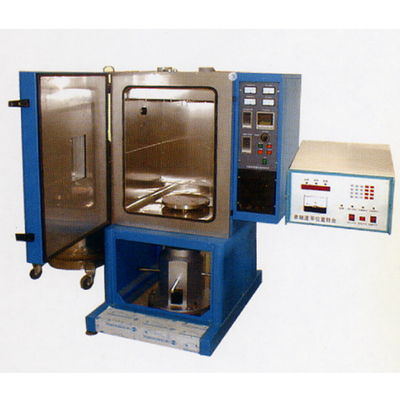

2 axis rate position turntable with temperature chamber price


It is mainly used to rate test and sway test of inertial device under high-low temperature. Temperature chamber adopts liquid nitrogen cooling method, it could proceed quiet and convenient tests. It owns protection function of over-rate, over-current and over-voltage emergency power off.


Load capacity ≥10kg
Table facet diameter Ø320mm
Table facet flatness ≤0.01mm
Table facet jerk value ≤0.01mm
Inclination rotary accuracy ±2’’
Rotary angle range Continuous infinite
Working mode position, rate, sine angle vibration
Slip rings User signal 50 rings/1A
Turntable control method Automatic and manual
Angular position measure accuracy ±5’’
Angular position measure repeatibility ±2″
rate range ±0.0005°/s~±500°/s
rate accuracy 5x10-3(360° interval)
rate smoothness 5x10-3(360° interval)
rate resolution 0.0001°/s
rate acceleration 0~±450°/s2
Sine angle vibration
Frequency range 0.1Hz~5Hz
Sine angle vibration rate range ±0.01°/s~±20°/s
Max rate acceleration ±800°/s2
Oscillogram degree of distortion ≤5%
Temperature chamber
Effective chamber working volume 500x500x500mm
Temperature range -70°c~+100°c
Temperature uniformity ≤1.5°c
Temperature bias ≤0.5°c
Temperature rise and drop rate ≥±5°c/min(with 15kg payload)
Temperature rise and drop method liquid nitrogen cooling
