Single axis position turntable low cost position test bench

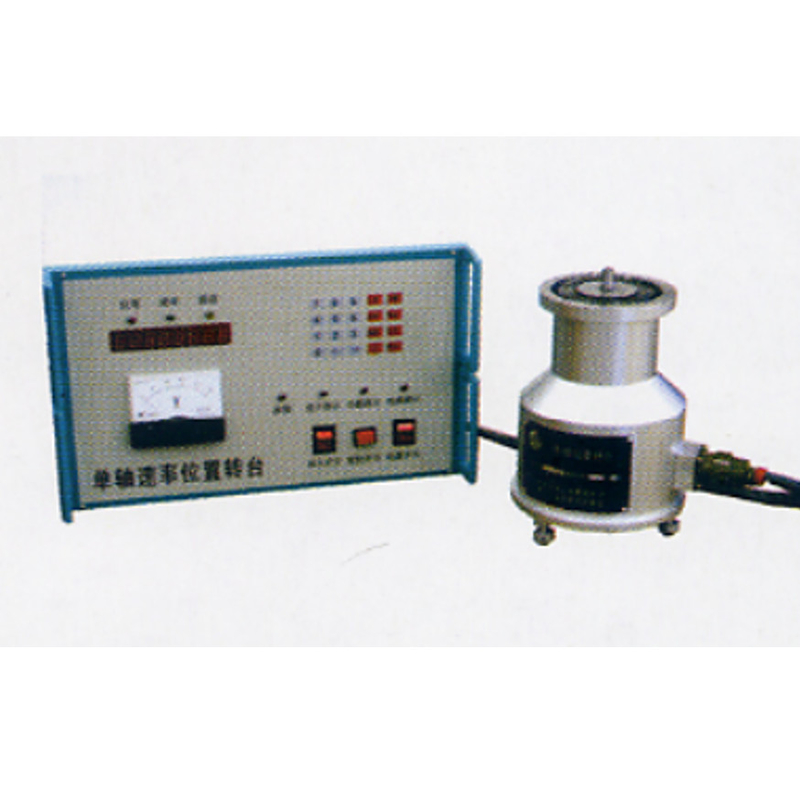

Single axis position turntable owns angular position and angular rate functions. The control cabinet equipped with RS-232 serial port could be controlled by remote computer or by control cabinet keyboard, could control turntable state and gather data. According to customer’s test requirements, turntable is also equipped with mechanical interface and mating connector tool. It could proceed calibration and test of angular sensor.
Main feature
| item | High accuracy angular displacement calibrator | Single axis position turntable |
| Load capacity | 5kg | |
| Table facet size | Ø256mm | |
| Rotary angle range | Continuous infinite | Continuous infinite |
| Working mode | Automatic, position | Position, rate |
| Machine body weight | Appr 70kg | |
| Machine body outline size | 400x400x500mm | |
| Control cabinet size | 1600x488x600mm | |
| Computer port | RS232 | RS232 |
| Angular position measure accuracy | ±10″ | ±5″ |
| Angular position measure resolution | ±0.36″ | ±0.36″ |
| Angular position measure repeatability | ±5″ | ±5″ |
| Angular control accuracy | ±2″ | ±2″ |
| rate range | 1°/s~10°/s | 1°/s~50°/s |
