High Stability Fog Gyro Compass Low Drift Single Axis Noise Isolation

1
MOQ
High Stability Fog Gyro Compass Low Drift Single Axis Noise Isolation
Features Gallery Product Description Request A Quote
Features
Specifications
Scale Factor Nonlinear: ≤5ppm
Power Supply: -5,+5v
Measuring Range: ±500°/s
Random Walk: ≤0.0008 º/√h
Power: 6w
High Light:

High Stability Fog Gyro Compass

,

Fog Gyro Compass Low Drift

Basic Infomation
Brand Name: avic
Model Number: F98A
Payment & Shipping Terms
Packaging Details: sponge+ box
Delivery Time: 20 days for sample
Payment Terms: T/T
Supply Ability: 50/month
Product Description

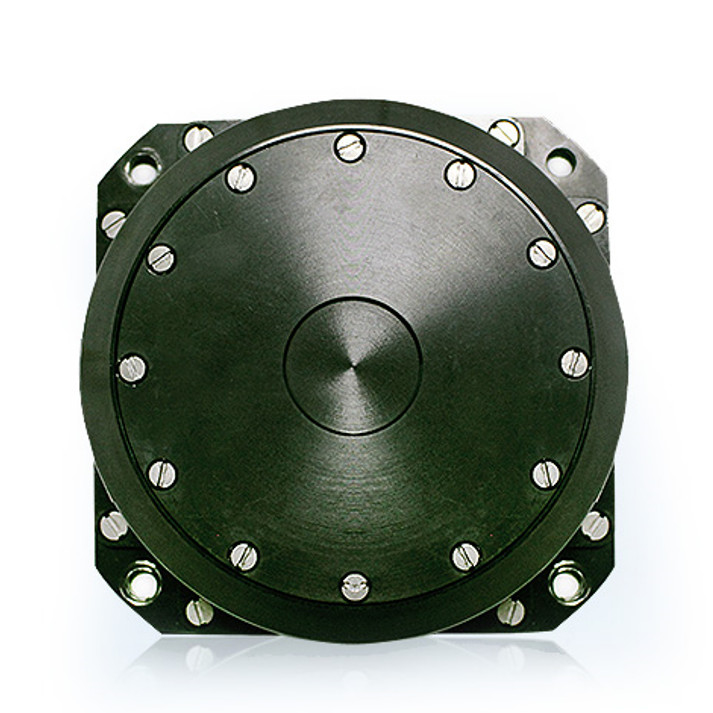

FIBER OPTIC GYRO SINGLE AXIS FIBER GYRO LOW DRIFT OPTIC GYRO



Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range



Applications

●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics

●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigation

High Stability Fog Gyro Compass Low Drift Single Axis Noise Isolation 0

Performance Characteristics



Project unit F98A F98B F98C F98D
Measuring range º/s -500~+500 -500~+500 -500~+500 -500~+500
Zero offset stability º/h ≤ 0.008 ≤ 0.02 ≤ 0.05 ≤ 0.08
Zero bias repeatability º/h ≤0.008 ≤ 0.02 ≤0.05 ≤0.08
Random walk coefficient º/√h ≤0.0008 ≤0.002 ≤0.005 ≤0.008
Scale factorNonlinear ppm ≤ 20 ≤ 30 ≤ 40 ≤ 50
Scale factorRepeatability ppm ≤ 20 ≤ 30 ≤ 40 ≤ 50
Scale factorAsymmetry ppm ≤ 20 ≤ 30 ≤ 40 ≤ 50
Start Time s ≤1
bandwidth Hz >200
power supply V -5,+5
power W ≤6
Operating temperature -40~+65
storage temperature -45~+85
vibration Hz,g2/Hz 20~2000,0.06
Shock g,ms 30,11
Data refresh rate Hz 200~500
Baud rate bps 115200~921600
outputmethod / Broadcast (default) / triggered (custom)
Interface level / RS-422
Connector / J30J-15TJL
shape size mm Φ98×38



Dimensions

High Stability Fog Gyro Compass Low Drift Single Axis Noise Isolation 1
