products details

Home Products

Fiber Optic Gyro

FOG 1 Axis Fiber Gyroscope Long Lifespan Precise North Seeking

Name: FOG 1 Axis Fiber Gyroscope Long Lifespan Precise North Seeking
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: F120A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	F120A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Measuring Range:

-500~+500º/s

Zero Bias Stability:

≤ 0.003º/h

Zero Bias Repeatability:

≤ 0.003º/h

Scale FactorNonlinear:

≤5ppm

Power Supply:

-5,+5v

Power:

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

1 Axis Fiber Gyroscope

Fiber Gyroscope Long Lifespan

fog gyroscope North Seeking

Product Description

Precise north seeking FOG 1 axis fiber gyro low drift optical gyro

Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range

Performance Characteristics

Project	unit	F120A	F120B	F120C	F120D
Measuring range	º/s	-500~+500	-500~+500	-500~+500	-500~+500
Zero offset stability	º/h	≤ 0.003	≤ 0.008	≤ 0.01	≤ 0.03
Zero bias repeatability	º/h	≤0.003	≤ 0.008	≤0.01	≤0.03
Random walk coefficient	º/√h	≤0.0004	≤0.0008	≤0.001	≤0.003
Scale factorNonlinear	ppm	≤5	≤10	≤20	≤ 30
Scale factorRepeatability	ppm	≤ 5	≤10	≤20	≤ 30
Scale factorAsymmetry	ppm	≤5	≤10	≤20	≤30
Start Time	s	≤1
bandwidth	Hz	＞100
power supply	V	-5,+5
power	W	≤6
Operating temperature	℃	-40~+65
storage temperature	℃	-45~+85
vibration	Hz,g2/Hz	20～2000,0.06
Shock	g,ms	30,11
Data refresh rate	Hz	200~500
Baud rate	bps	115200~921600
outputmethod	/	Broadcast (default) / triggered (custom)
Interface level	/	RS-422
Connector	/	J30J-15TJL
shape size	mm	Φ120×39.5

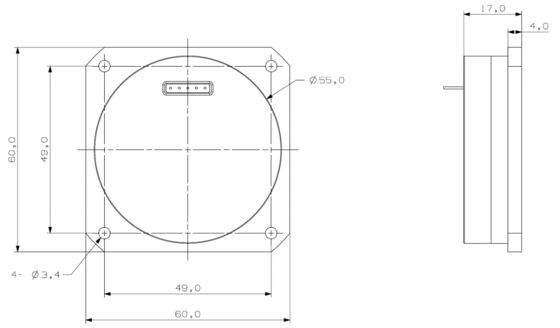

Dimensions

FOG 1 Axis Fiber Gyroscope Long Lifespan Precise North Seeking 0
