UAV / AUV / Helicopter Fiber Optic Gyro 3 In 1 Combined FOG

Name: UAV / AUV / Helicopter Fiber Optic Gyro 3 In 1 Combined FOG
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 30G
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	30G
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Range Of Measured Angular Rate, Deg/sec:

±300

Bias Drift:

0.01

Scale Factor Repeatability，%:

0.001

Magnetic Sensitivity:

0.03º/h/Gs

Random Walk, Deg:

0.001

Bandwidth, Hz:

100

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

AUV Fiber Optic Gyro

UAV Fiber Optic Gyro

Helicopter Fiber Optic Gyro

Product Description

3 in 1 gyro combined FOG three single axis fiber optic gyro

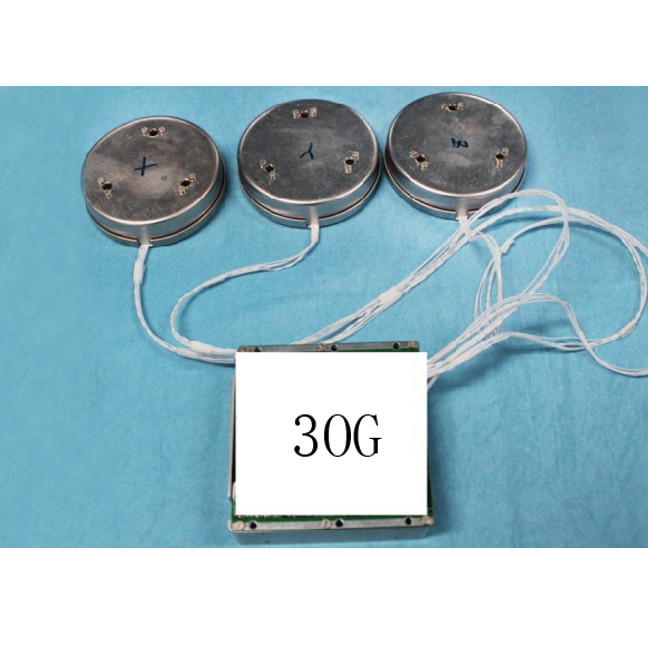

The 3OG consists of body and heads, there are lines between the head and the body, the lines’ bending radius is demanded not less than 30mm. The gyros are recommended for using in an enclosed environment, and keep the gyros dried, otherwise, it will do damage to the precision and service life of gyros.

Applications

●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics

●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigation

Performance Characteristics

1	Parameter
2	Range of measured angular rate, deg/sec	±300
3	Bias drift at fixed temperature, deg/h	0.01
4	Bias drift at temperature range from -40℃to +60℃, deg/h	0.02
5	Scale factor repeatability,%	0.001
6	Magnetic sensitivity	0.03º/h/Gs
7	Random walk, deg/	0.001
8	Bandwidth, Hz	100
9	Power consumption, W	7
10	Start up power consumption,W	10 (without power off in first 3 secs)
11	Power supply	5V±0.2
12	Start up time, min	1
13	Operational temperature	-40℃to +60℃
14	Dimensions, mm	92×27(head)96×96×33(body)
15	Weight(net), kg	1.5
16	Output	RS422/RS485
17	Shock	30g 11msec half sin
18	Vibration	20-2000 Hz 6g RMS

Dimensions
