F60 single axis fiber gyro.pdf
angular speed sensor low bias angular inertial meter small size angle gyro

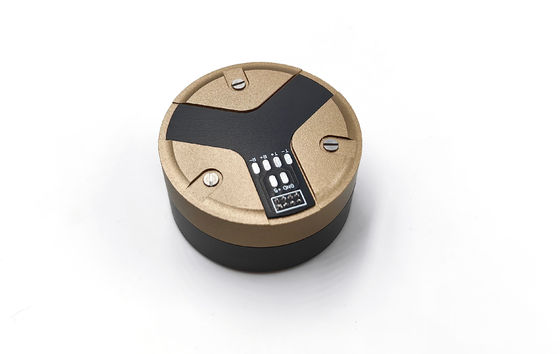

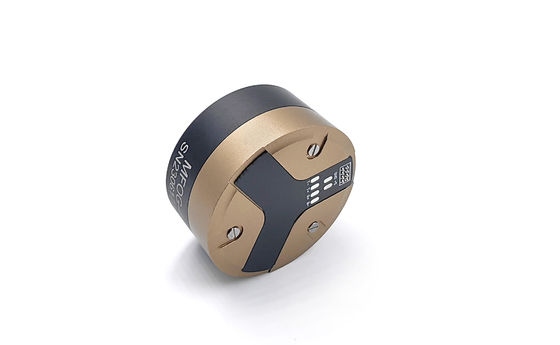

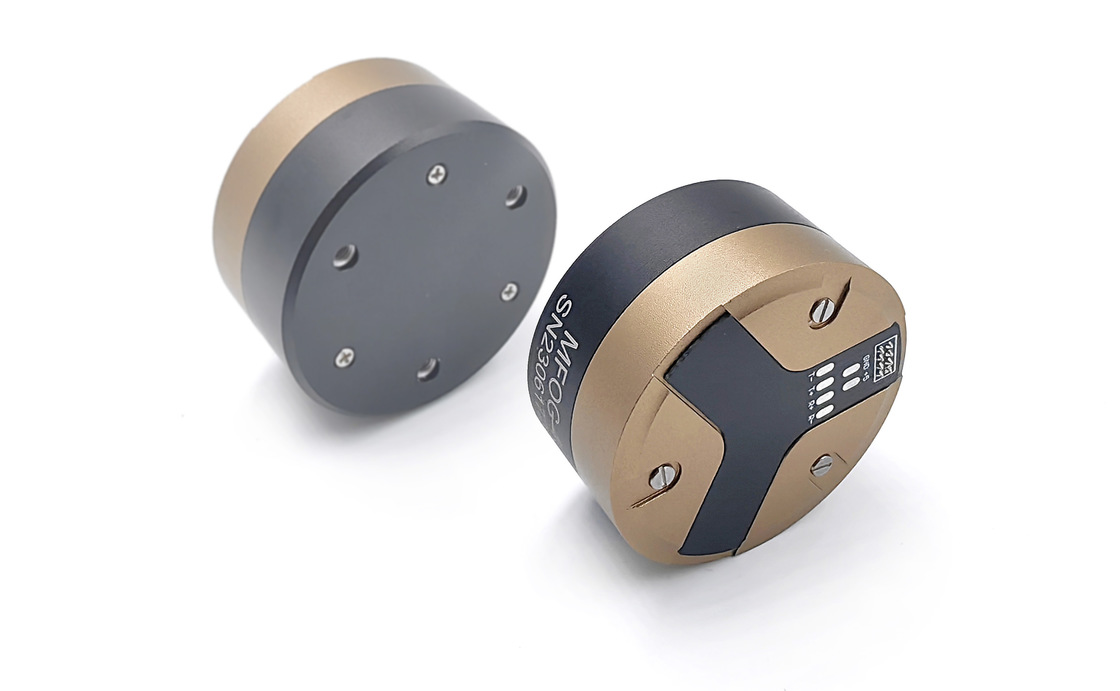

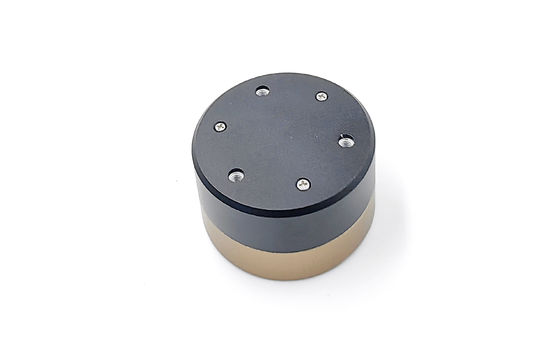

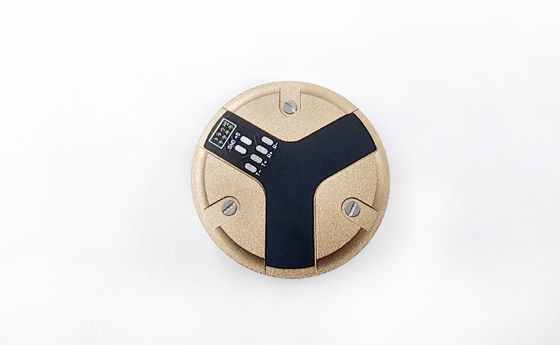

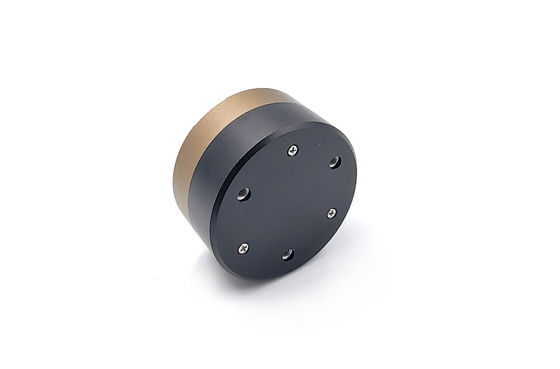

F60 single-axis fiber optic gyroscope is an all-solid-state medium-precision angular rate inertial sensor device integrating light, machine and electricity. The product has the characteristics of high precision, small size, light weight, reliability and high cost performance.
The zero-bias stability of the product is less than or equal to 0.3°/h (10s smooth), the response frequency bandwidth is ±5V DC power supply, the power is less than 4W, and the RS422 digital communication method is adopted, which is convenient for users to use. It is an ideal inertial device to replace the traditional mechanical gyroscope.
Application areas: applications in medium-precision inertial navigation systems, positioning and orientation systems, attitude measurement systems, servo stabilization systems, etc.
Project | unit | F60A | F60B | F60C | F60D |
Measuring range | º/s | -800~+800 | |||
Zero offset stability | º/h | ≤ 0.06 | ≤ 0.1 | ≤ 0.3 | ≤ 1.5 |
Zero bias repeatability | º/h | ≤ 0.06 | ≤ 0.1 | ≤ 0.3 | ≤ 1.5 |
Random walk coefficient | º/√h | ≤ 0.006 | ≤ 0.01 | ≤ 0.03 | ≤ 0.5 |
Scale factorNonlinear | ppm | ≤ 50 | ≤ 60 | ≤70 | ≤150 |
Scale factorRepeatability | ppm | ≤ 50 | ≤ 60 | ≤70 | ≤150 |
Scale factorAsymmetry | ppm | ≤ 50 | ≤ 60 | ≤ 70 | ≤150 |
Start Time | s | ≤1 | |||
bandwidth | Hz | >200 | |||
power supply | V | -5,+5 | |||
power | W | ≤6 | |||
Operating temperature | ℃ | -40~+65 | |||
storage temperature | ℃ | -45~+85 | |||
vibration | Hz,g2/Hz | 20~2000,0.06 | |||
Shock | g,ms | 30,11 | |||
Data refresh rate | Hz | 200~2000 | |||
Baud rate | bps | 115200~921600 | |||
outputmethod | / | Broadcast (default) / triggered (custom) | |||
Interface level | / | RS-422 | |||
Connector | / | J30J-15TJL | |||
shape size | mm | Φ60×32 |
