Cost-Effective Fiber Optic Gyroscope for Industrial Automation

Name: Cost-Effective Fiber Optic Gyroscope for Industrial Automation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Range:

±350°/s

Zero Bias Repatability:

≤1°/h

Zero Bias Stability:

≤1°/h (10s Smoothing)

Output Drive Voltage:

≥5Vpp

Scale Factor:

6±0.6mv/°/S

Dimensions:

60*60*17(mm*mm*mm)

Working Temperature:

-45ºC~+70ºC

Baud Rate:

921600 (Customizable)

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

Integrated Fog Gyro

Three Axis Fog Gyro

Product Description

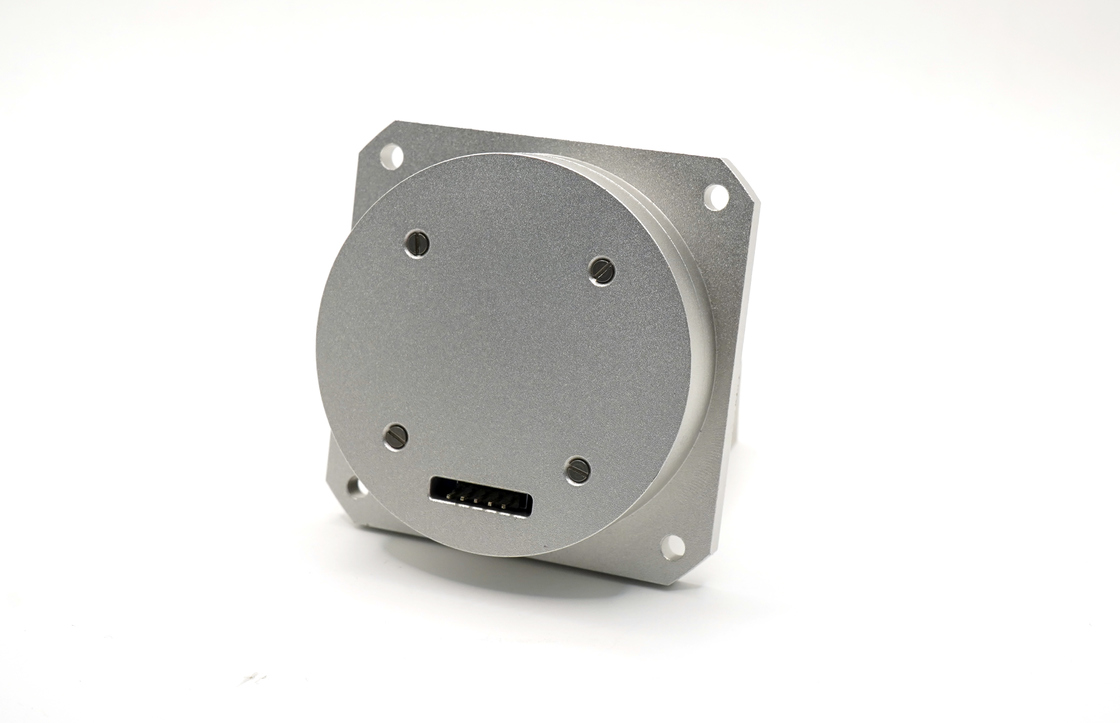

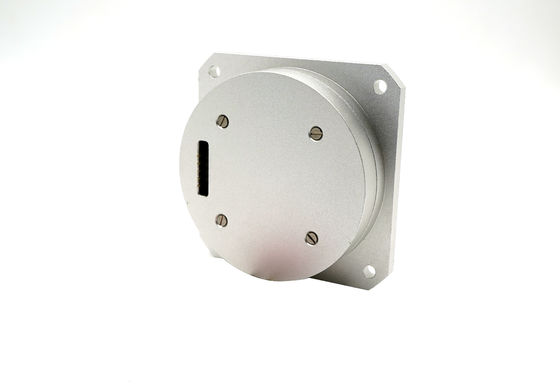

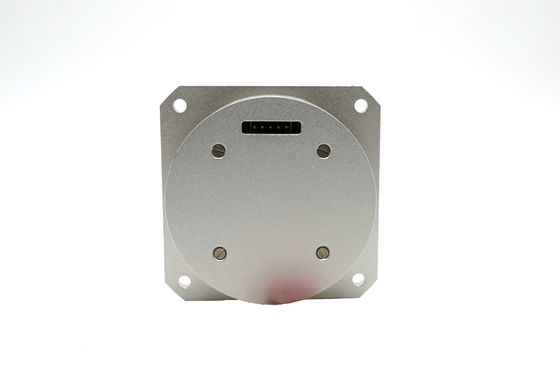

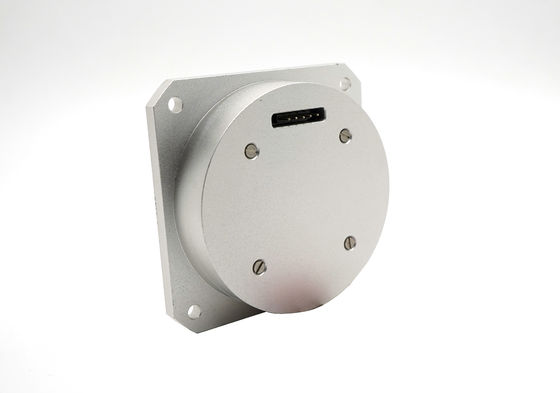

Cost-Effective Fiber Optic Gyroscope for Industrial Automation

The MFOG-103 represents a new generation of high-end micro-nano fiber optic gyroscopes, offering exceptional performance with ARW ≤0.02°/√h, bias repeatability ≤1°/h, and bandwidth ≥1000Hz for accurate angular rate detection. Designed for long-term operation (≥15 years) and MTBF ≥100,000h, it delivers unmatched reliability. Fully compatible with Fizoptika VG103, it's ideal for navigation-grade IMUs, UAV flight control, and marine positioning systems.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Dimensions

60 mm * 60 mm * 17 mm (including flange, excluding plug)

Weight

≤80g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

20g, frequency range: 20Hz to 2000Hz

Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

Mechanical and Electrical Interfaces

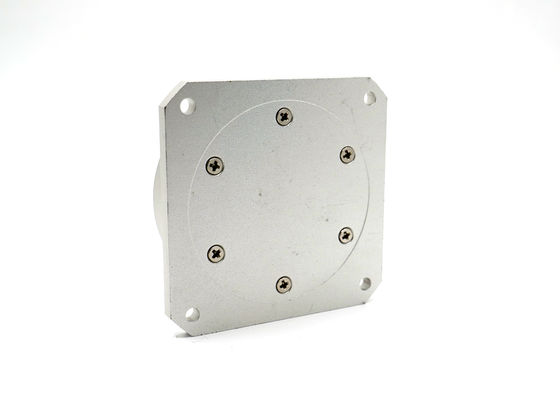

The bottom surface of the product is the installation surface.
