Strong Stability and Fast Start Time Fiber Optical Gyroscope Measuring Instrument

Brand Name:	Firepower
Model Number:	MFOG-40A
MOQ:	1
Price:	1350 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Shock:

30g,11ms

Power Supply:

5±0.15V

Zero Bias Stability:

<1°/H (10s.1siama)

Working Temperature:

-45ºC~+70ºC

Power Consumption:

1.5W

Start Time:

≤2s

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

Pilot Driving 1 Axis Turntable

1 Axis Turntable Digital

Digital Display Positioning Turntable

Product Description

Strong Stability and Fast Start Time Fiber Optical Gyroscope Measuring Instrument

Product Description

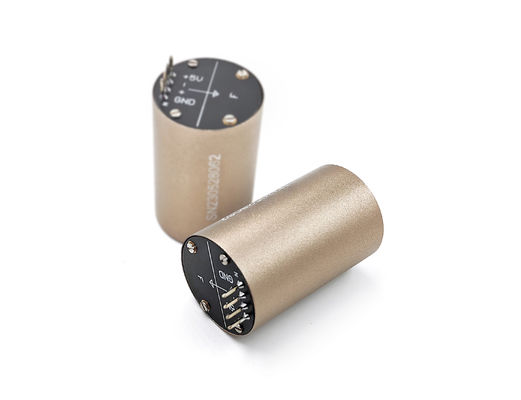

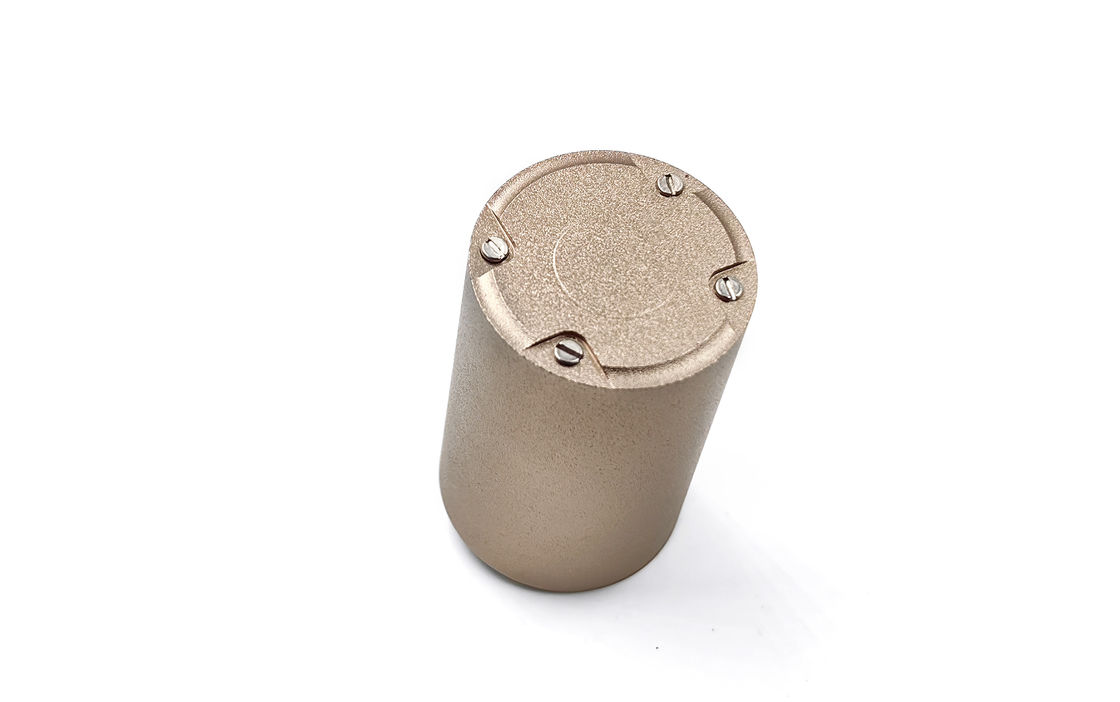

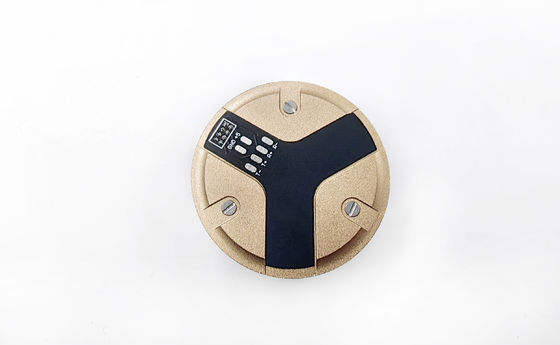

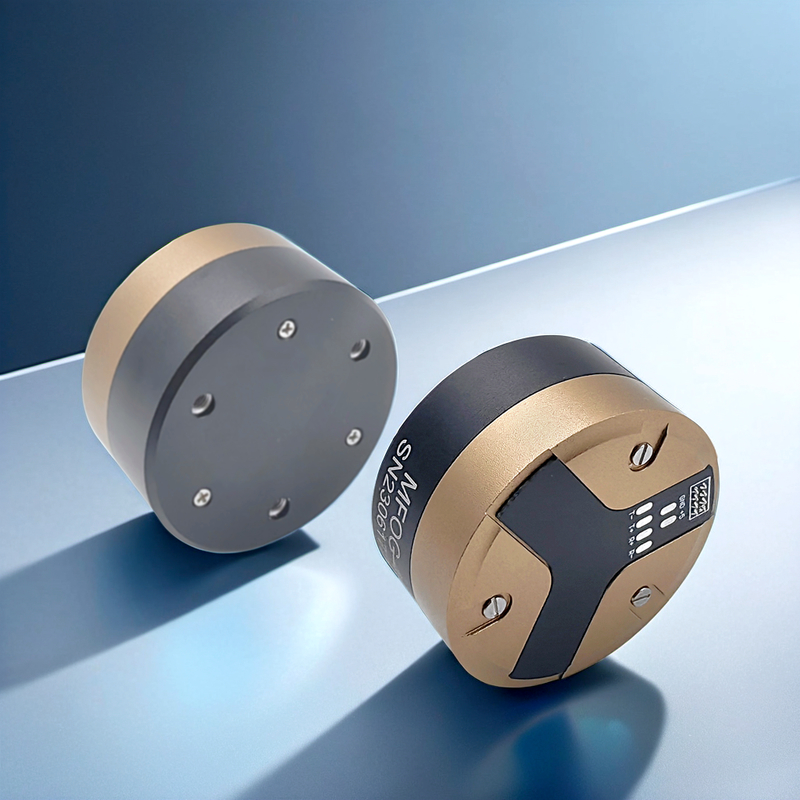

The MFOG-40 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams. Comprising optical path components, circuit components, and structural components, this product features a simple structure with no moving or wear parts, offering fast start-up, compact size, and lightweight design. Ideal for attitude control and measurement applications in various carriers.

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±500
2	Scale Factor (LSB/o/s)	3600
3	Scale factor nonlinearity (ppm)	≤300
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H1/2)	≤0.05
7	Zero-bias stability at full temperature (10s, 1σ, -40 ºC ~ + 65 ºC, °/H)	≤5
8	3dB Bandwidth (Hz)	≥400
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤1.5
11	Dimension (mm)	φ40X20.5

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, the company manufactures MEMS gyros, inertial navigation systems, vibration sensors, communication products, and test equipment.

As an innovation-driven enterprise, Firepower possesses China's leading production capabilities for inertial navigation and communication products. The company focuses on scientific research and technological innovation, developing autonomous navigation products with independent intellectual property rights. These products are widely used in civilian vehicle and ship navigation, providing critical information such as position, 3D attitude, and speed through proprietary array algorithms.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control throughout production:

Production according to agreed technical requirements
Full testing according to methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms for customer convenience.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months warranty, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: What is final price?

A: Standard products follow price table; customized products require quotation based on specifications.

Q: How to choose product?

A: Selection options:

Choose from standard products on our platform
Request modifications to standard products
Provide specific technical requirements
Explain application for suitable product recommendations
