FOGFiber Optic Gyro Fizoptika VG1703 Replacement Angular Rate Sensor

Name: FOGFiber Optic Gyro Fizoptika VG1703 Replacement Angular Rate Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Storage Temperature:

-55℃～+75℃

Measuring Range:

-150°/s~+150°/s

Bandwidth:

300 Hz

Power:

1.5w

Interface:

RS-232/RS-422

Axis:

One

Bias Stability:

≤1º/h

Zero Bias Repeatability:

≤1º/h

Packaging Details:

sponge+box

Supply Ability:

1000/month

Highlight:

Fiber Optic Gyro 1s Start Time

FOGs Fiber Optic Gyro

fiber gyro Medium Precision

Product Description

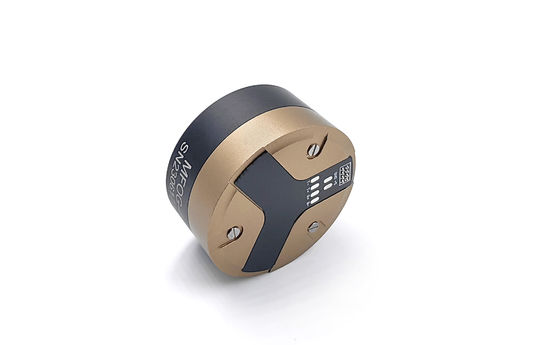

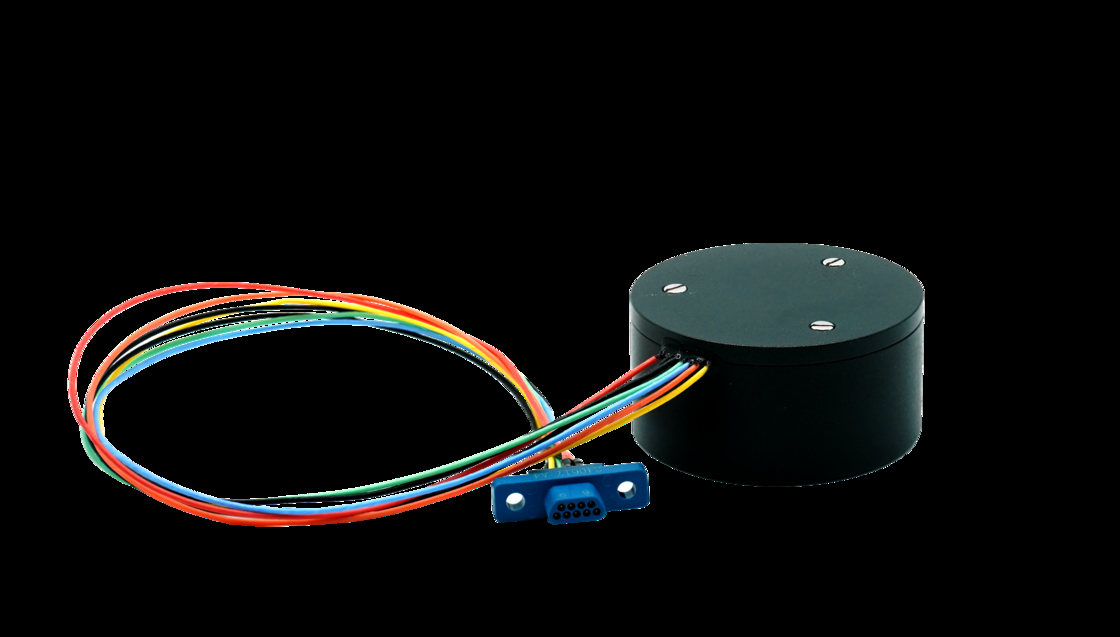

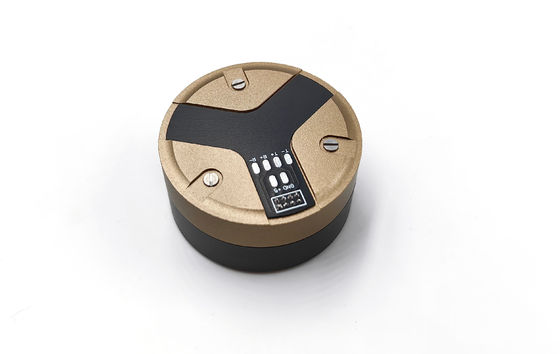

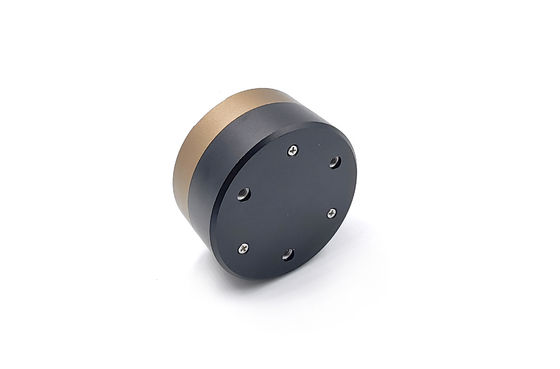

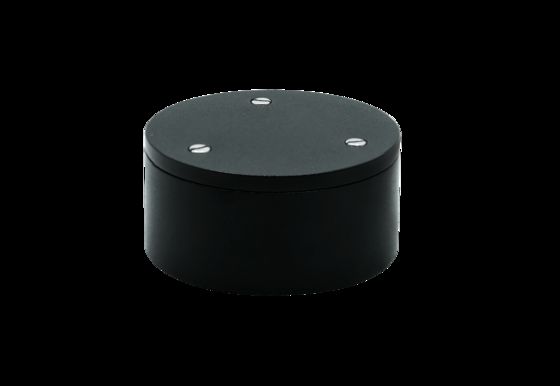

MFOG-1703 Fiber Optic Gyro – Medium Precision Instrument

The MFOG-1703 is a high-performance micro-nano fiber optic gyroscope engineered to deliver exceptional stability and precision. Designed as a drop-in replacement for the Fizoptika VG1703, it combines miniaturized optical technology with robust mechanical design. Its lightweight structure (≤40g) and wide operating temperature range (-40°C to +70°C) make it ideal for UAVs, robotics, and navigation platforms where compactness and reliability are essential.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell, and other structural components

Physical Specifications

Dimensions: φ40mm × 20mm (cylindrical)
Weight: ≤40g

Environmental Specifications

Operating Temperature: -40°C to +70°C
Storage Temperature: -55°C to +85°C
Random Vibration: 20g, 20Hz–2000Hz

Performance Parameters

Parameter	Specification
Range (°/s)	±150
Scale factor (mV/°/s)	12±1.2
Zero-bias stability (10s, 1σ, °/h)	≤1
Zero-bias repeatability (1σ, °/h)	≤1
Angular random walk (°/h^1/2)	≤0.02
Zero-bias temperature sensitivity (µV/°C)	≤1
Scale factor temperature sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450
Impact (g)	1200, 1ms, half sine
Power supply (V)	5±0.25
Power consumption (W)	≤1

External Power Supply Requirements

Parameter	Specification
Voltage	4.75V–5.25V
Ripple	20mV
Current	0.2A
