Home Products

Fiber Optic Gyro

500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor

Name: 500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: F98-01
Price: 10000.00 USD
Availability: InStock

Brand Name:	A-VIC
Model Number:	F98-01
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Gyro

Baud Rate:

115200~921600

Data Refresh Rate:

200~500Hz

Shock:

30,11

Bandwidth:

>200Hz

Zero Bias Repeatability:

≤0.008º/√h

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

500Hz Fiber Optic Gyro

Fiber Optic Gyro Transducer

Selection Fog Gyro Sensor

Product Description

Fiber Optic Gyro Transducer, Fiber optic gyro meter, Selection fog fiber optic gyro sensor

Applications

●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics

●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigation

Performance Characteristics

No.	Parameter						F98-400		Unit	Remarks
1	Maximum angular rate						±400		°/s
2	Scale factor						1650000× (1±10%)		SP/°/s
3	Scale factor nonlinearity in room temperature						≤20		ppm	@25℃
4	Scale factor repeatability in room temperature						≤20		ppm	@25℃
5	Scale factor repeatability in full temperature						≤50		ppm	-40℃~+70℃
6	Bias stability in room temperature						≤0.02		10s 1σ,°/h	@25℃
7	Bias repeatability in room temperature						≤0.01		1σ,°/h	Bias
8	Bias repeatability in tull temperature						≤0.03		1σ,°/h	-40℃~+70℃
9	Bias stability in changing temperature						≤0.015		100s 1σ,°/h	0.3℃/min,-40℃~+70℃
10	Random walk						≤0.003		°/
11	Activation time						0		min
12	Bias value during vibration/before vibration/after vibration						≤0.05		°/h
13	Bias value before/after vibration)						≤0.05		°/h
14	Magnetic sensitivity						≤0.01		°/h/Gs
15	Threshold value						≤0.02		°/h
16	Vibration	20Hz～2000Hz							Hz/10min
		X	Y		Z
	Vibration spectrum
17	Impact	15g(3times)						Half sine wave/11ms
		±X		±Y		±Z

Dimensions

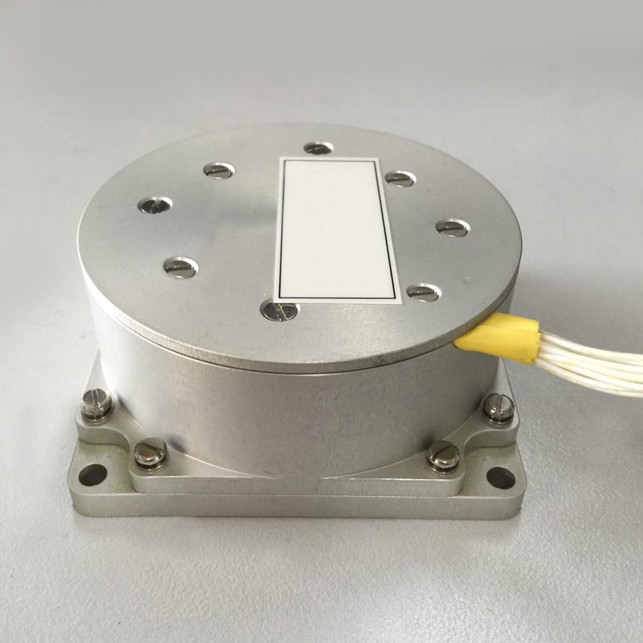

500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor 0

Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range

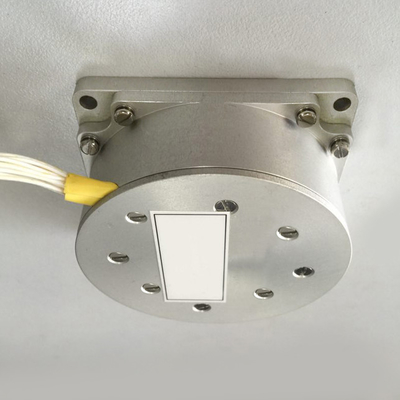

500hz Fiber Optic Gyro Transducer Meter Selection Fog Gyro Sensor 1
