Nanoscale Miniaturized Small Size Micro-Nano Fiber Optic Gyroscope

Name

Nanoscale Miniaturized Small Size Micro-Nano Fiber Optic Gyroscope

Brand Name: Firepower
Model Number: MFOG-40
MOQ: 1
Price: 1317
Payment Terms: T/T
Supply Ability: 100
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
±300°/S
Scale Factor:
3600lsb/°/S
Scale Factor Nolinearity:
≤500ppm
Zero-Bias Stability:
≤0.5°/H, 10s, 1σ
Power Supply:
5±0.15V
Power Consumption:
≤1.5W
Packaging Details:
Sponge&Box
Supply Ability:
100
Highlight:

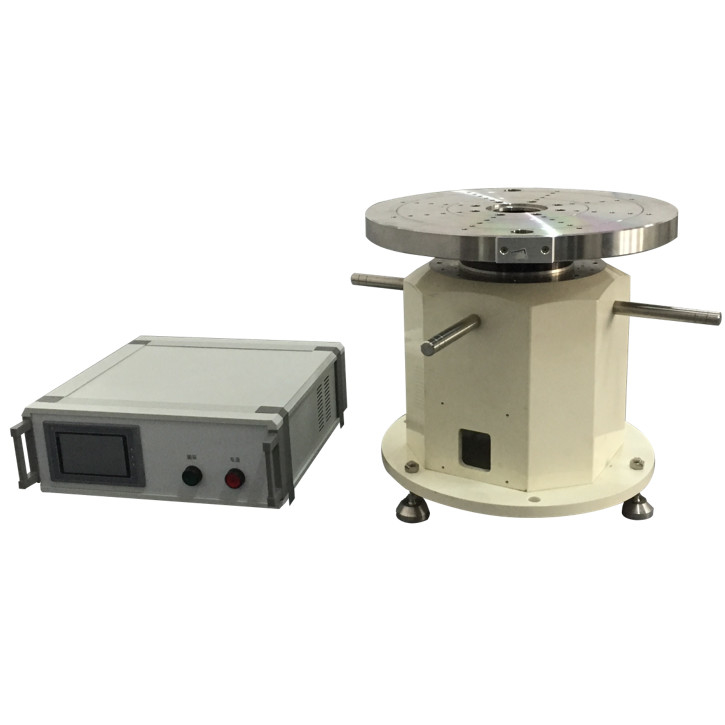

320mm Table 1 Axis Turntable

,

Position Rate 1 Axis Turntable

,

Swing Tests 1 Axis Turntable

Product Description

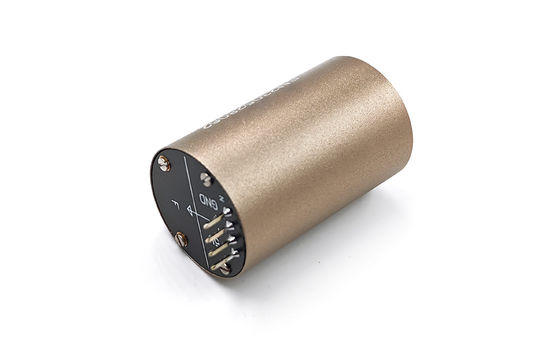

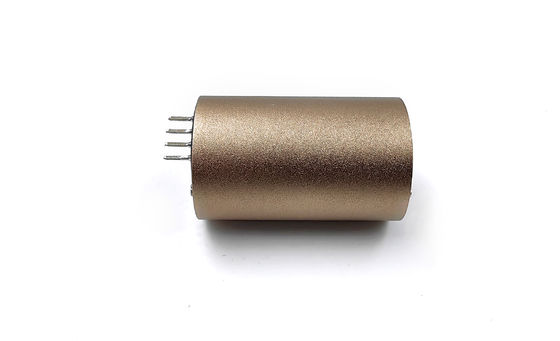

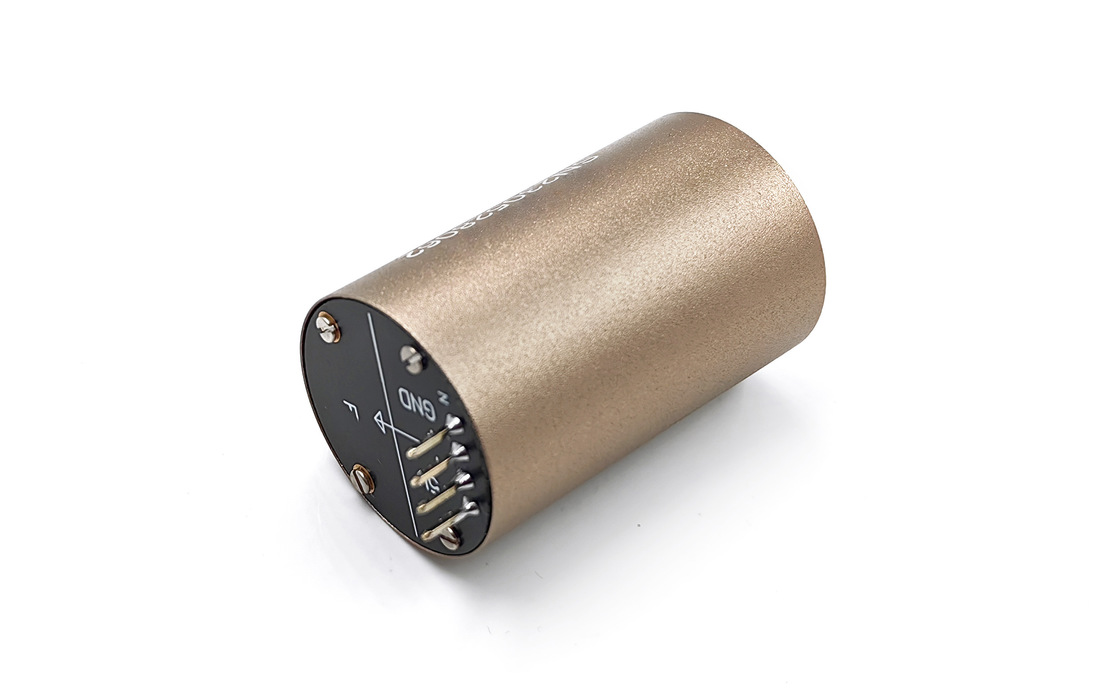

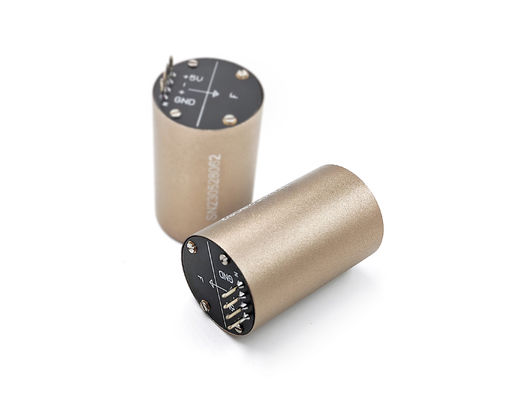

Nanoscale Miniaturized Small Size Micro-Nano Fiber Optic Gyroscope
Product Description
The MFOG-40 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it incorporates various micro-nano fiber devices to detect, process, and feedback the phase difference generated by two counter-propagating light beams.
This product consists of optical path components, circuit components, and structural components. Key features include:
  • Simple structure with no moving or wear parts
  • Fast startup capability
  • Compact size and lightweight design
  • Suitable for carrier attitude control and measurement applications
Technical Parameters
Project Performance indicators
Range (°/s) ±300
Scale Factor (LSB/°/s) 3600
Scale factor nonlinearity (ppm) ≤500
Zero-bias stability (10s, 1σ, °/H) ≤0.5
Zero-bias repeatability (1σ, °/H) ≤0.5
Angular random walk (°/H1/2) ≤0.02
Zero-bias stability at full temperature (10s, 1σ, -40℃~+65℃, °/H) ≤1.5
3dB Bandwidth (Hz) ≥300
Power supply (V) 5+0.15
Power Consumption (W) ≤1.5
Dimension (mm) φ40*20
