Miniaturized Micro-Nano Fiber Optic Gyro for Smart Watches

Name: Miniaturized Micro-Nano Fiber Optic Gyro for Smart Watches
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	1317
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Multi-function Turntable

Measuring Range:

±300°/S

Scale Factor:

3600lsb/°/S

Scale Factor Nolinearity:

≤500ppm

Zero-Bias Stability:

≤0.5°/H, 10s, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

10Hz Inertial Navigation Device Turntable

Inertial Navigation Device Turntable 3″

Product Description

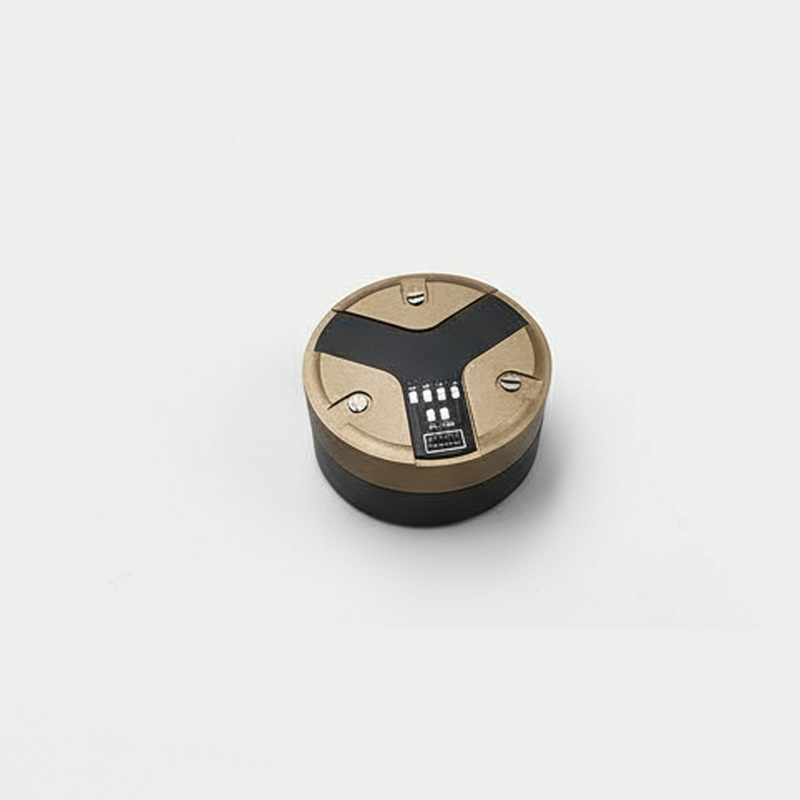

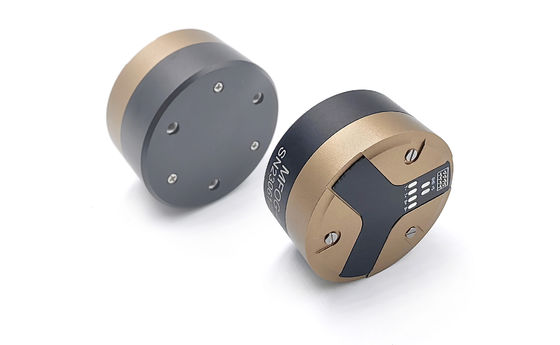

Miniaturized Micro-Nano Fiber Optic Gyro for Smart Watches

Product Description

The MFOG-40 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

This compact gyroscope consists of optical path components, circuit components, and structural components. It features a simple design with no moving or wear parts, offering fast startup, small size, and lightweight construction. Ideal for attitude control and measurement applications in various carriers.

Technical Parameters

Project	Performance indicators
Range (°/s)	±300
Scale Factor (LSB/ o /s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H 1/2	≤0.02
Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimension (mm)	φ40X20

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment.

With automated production lines in Xi'an, Shenzhen, and Zhuhai, Firepower leads in inertial navigation and communication product manufacturing. The company focuses on scientific research and technological innovation, developing autonomous navigation products with independent intellectual property rights for civilian vehicles and ships.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control:

Production according to agreed technical requirements
Full testing according to methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms for your convenience.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months warranty, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton box with sponge; batch orders use wooden box.

Q: What is final price?

A: Standard products as per price table; customized products priced upon consultation.

Q: How to choose product?

A: Selection options:

Choose from our standard products
Modify standard product specifications
Provide comprehensive technical requirements
Describe application for suitable product recommendation
