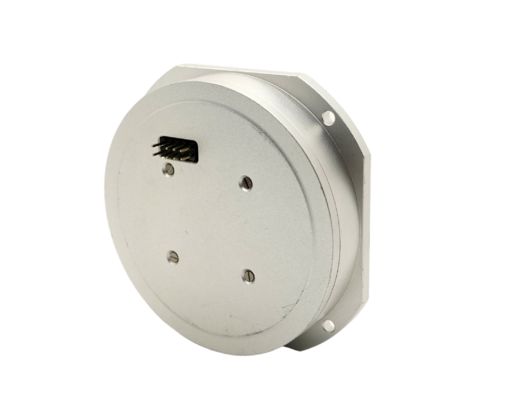

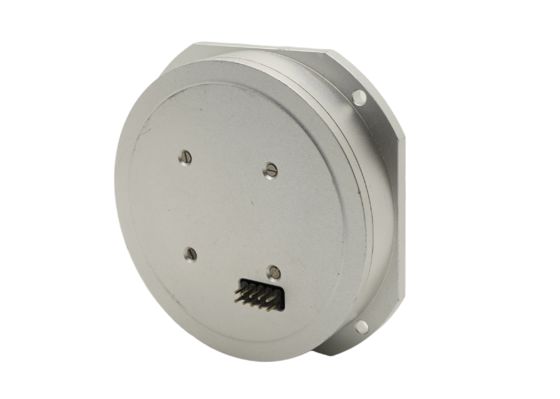

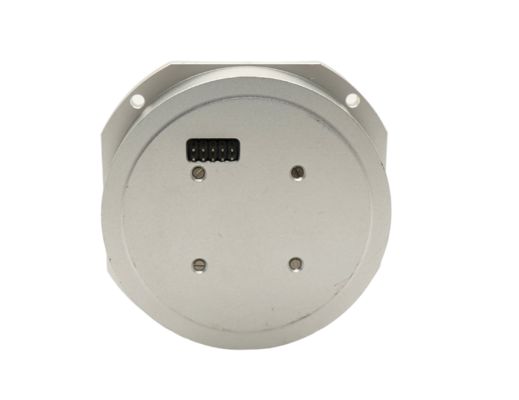

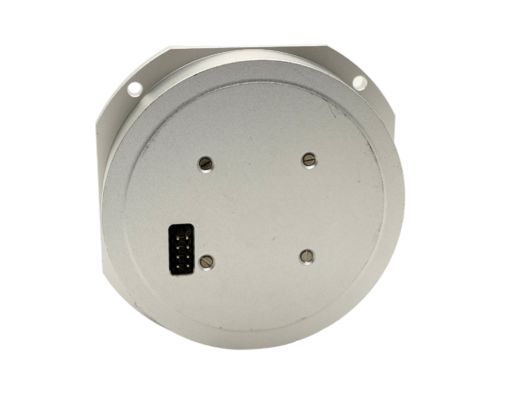

Single Axial Fiber Optic Gyroscope VG910 for UAV Navigation

Name: Single Axial Fiber Optic Gyroscope VG910 for UAV Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 800 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	800USD
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Bias Stability （10s）:

≤0.8°/h

Bias Repeatability Test 6 Times:

≤0.8°/h

Angle Random Walk:

≤0.02°/h

Weight:

≤150g.

Size:

82mm × 82mm × 19.5mm

Power Consumption:

≤1.5W

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

Single Axial Fiber Optic Gyroscope

High Accuracy Fiber Optic Gyroscope

Closed Loop Fiber Optic Gyro

Product Description

Single Axial Fiber Optic Gyroscope - High Accuracy Fiber Optic Gyro

The MFOG-910 micro-nano fiber optic gyroscope delivers aerospace-grade performance in a compact, lightweight package. Utilizing the Sagnac interferometric principle, it provides precise angular rate data critical for flight attitude and orientation measurement. Designed for durability in harsh environments, this maintenance-free unit withstands high vibration and extreme temperature ranges.

Key Applications

Satellite orientation systems, UAV stabilization, aircraft navigation, and other precision motion control applications.

Primary Components

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton and structural housing

Physical Specifications

Dimensions: 82mm * 82mm * 19.5mm (without plug)

Weight: ≤150g

Operating Temperature: -40℃ to +70℃

Storage Temperature: -55℃ to +85℃

Random Vibration: 20g, 20Hz to 2000Hz

Performance Parameters

Serial No.	Project	Performance Indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years)	≥15
13	MTBF	≥100000

Mechanical and Electrical Interfaces

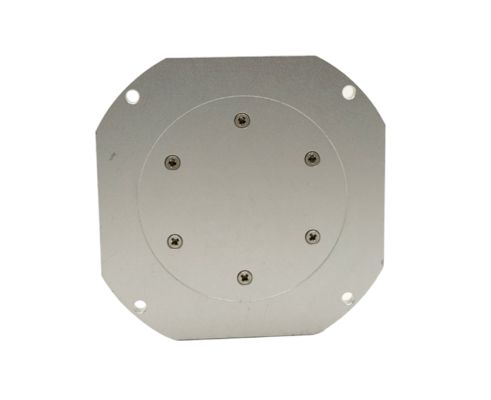

The product's bottom surface serves as the installation surface. Below are the dimensional specifications and installation interface details:
