Low Bias Stability Fiber Optic Gyro Single Axis Open Loop Fiber Optic Gyro Sensor

Name: Low Bias Stability Fiber Optic Gyro Single Axis Open Loop Fiber Optic Gyro Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 6,250.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Price:	2500~10000 USD
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Zero Bias Stability:

≤2°/h

Zero-bias Stability (:

≤2°/h

Random Walk:

≤0.04°/√h(1σ)

Size:

24X51.6mm

Storage Temperature:

-55~+85℃

Applications:

Aircraft Flight Control And Navigation

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

Single Axis Fiber Optic Gyro Sensor

Close Loop Fiber Optic Gyro

FOG Fiber Optic Gyro Sensor

Product Description

Low Bias Stability Fiber Optic Gyro Single Axis Open Loop Fiber Optic Gyro Sensor

Built for rugged industrial and field applications, the MFOG-091A combines precision optical technology with robust mechanical design. It maintains accurate performance under vibration (20g, 20-2000Hz) and extreme temperatures. With fast startup, simple structure, and long service life, it is the ideal alternative to Fizoptika VG091 for marine, mining, and vehicle stabilization systems.

Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Appearance and Dimensions

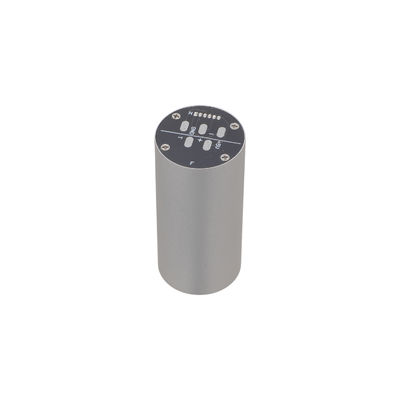

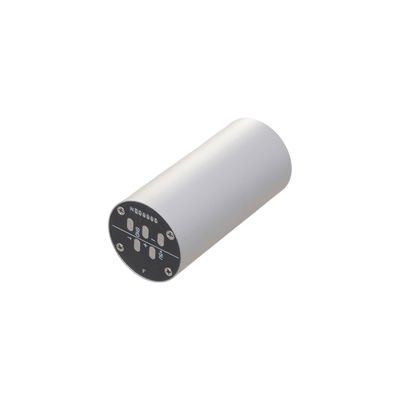

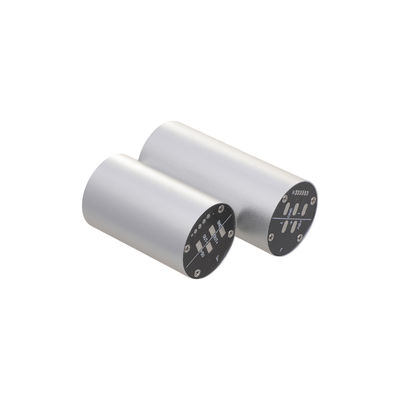

The product is cylindrical, with overall dimensions of φ24mm × 51.6mm

Weight

≤30g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

Random vibration level: 20g, frequency range: 20Hz to 2000Hz

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor	7±0.7mv/o/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H 1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	Bandwidth 3dB Band Width (Hz)	≥450
9	Power supply (V)	5±0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24×51.6

Mechanical and Electrical Interfaces

Mechanical Interface

The cylindrical surface of the product is the installation surface, and the clamp is used for installation.

Power Requirements

	+5V
Voltage	4.85V to 5.15V
Ripple	20mV
Electric current	0.2A

Electrical Interface

The MFOG-091A micro-nano fiber optic gyroscope is electrically connected to the outside through the bonding pad.

Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground

Output impedance 1 kΩ, differential analog voltage output.

Figure 2: Node Definition
