Inertial Angular Rate Sensor , Optical Sagnac Effect Three Axis Gyro Sensor

Inertial Angular Rate Sensor , Optical Sagnac Effect Three Axis Gyro Sensor
Features Gallery Product Description Request A Quote
Start Time: 3s
Zero Bias: ≤2º/h
Zero Bias Stability: ≤0.1º/h
Zero-bias Repeatability: ≤0.1º/h
Scale Factor Nonlinearity: ≤50ppm
Dynamic Range: ±500º/s
High Light:

Sagnac Effect Fiber Optic Gyroscope


50ppm Angular Rate Sensor


Optical Three Axis Gyro Sensor

Basic Infomation
Place of Origin: China
Brand Name: AVIC
Certification: Military standard
Model Number: F060
Payment & Shipping Terms
Packaging Details: sponge+ box
Delivery Time: 20 days for sample
Payment Terms: T/T
Supply Ability: 50/month
Product Description

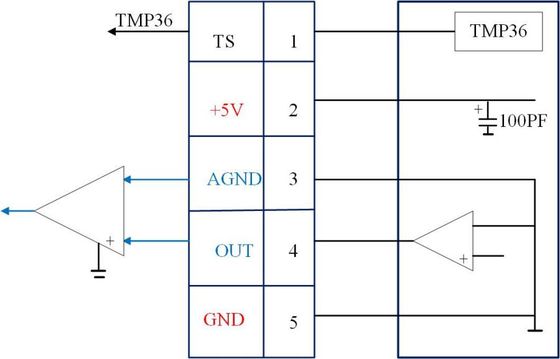

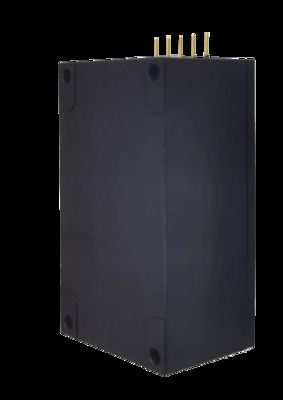

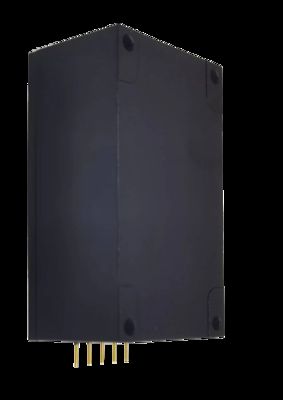

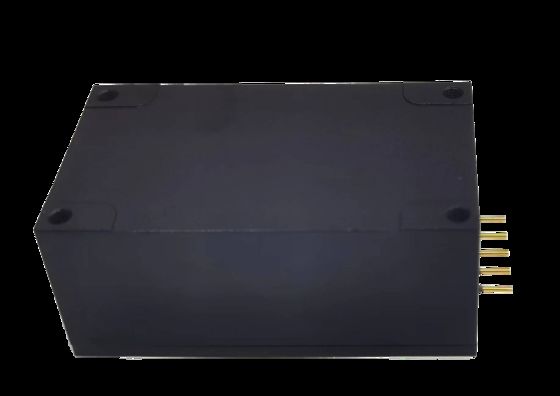

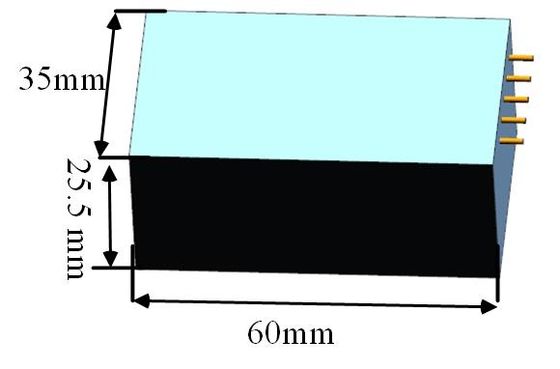

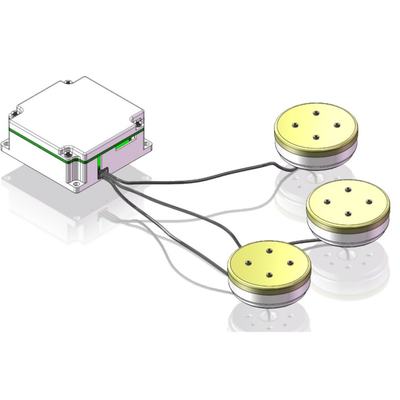

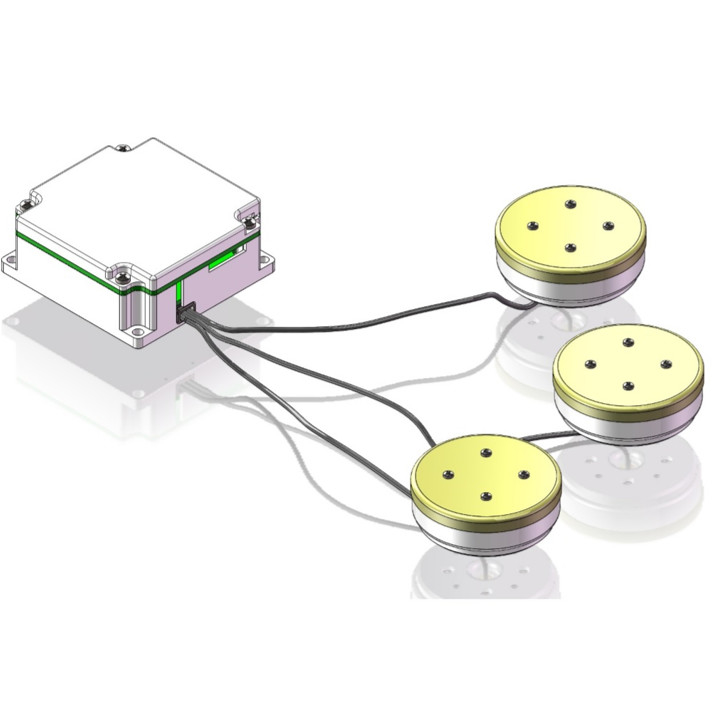

Three-Axis Fiber Optic Gyroscope Inertial Angular Rate Sensor Optical Sagnac Effect Gyro Sensor


This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis of the product. The angular rate sensing unit of the product is an optical fiber ring, and a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and anticlockwise propagating light caused by the external physical angular rate, which is sensed by the optical fiber ring,At the same time, the voltage signal converted from the optical path difference signal is used for closed-loop feedback and control to realize the modulation and demodulation of the signal and achieve the purpose of high-precision angular velocity signal detection.



Performance Characteristics

Serial number Test item Unit Technical requirements
1 Start time s 3 (the accuracy index is met after 15 s)
2 Zero bias º/h ≤2

Zero bias stability

(10 s smoothing, 1σ)

º/h ≤0.1
4 Zero-bias repeatability º/h ≤0.1
5 Random walk coefficient º/h1/2 ≤0.01
6 Scale factor nonlinearity ppm ≤50
7 Scale factor repeatability ppm ≤50
9 Operating temperature -40~+60
10 Storage temperature -50~+70
11 Dynamic range º/s ±500
12 Supply voltage V +5V
13 Bandwidth Hz >500
14 Steady-state power consumption W ≤6
