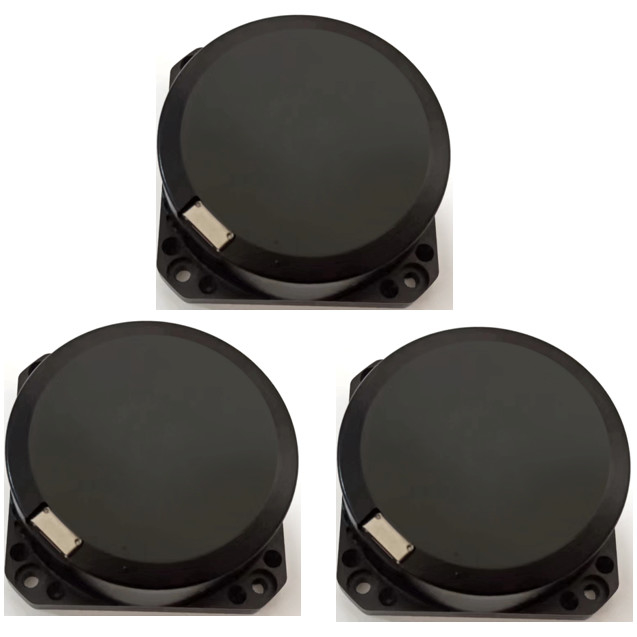

Inertial Angular Rate Sensor , Closed Loop Optical Sagnac Effect Gyroscope

1
MOQ
negotiable
Price
Inertial Angular Rate Sensor , Closed Loop Optical Sagnac Effect Gyroscope
Features Gallery Product Description Request A Quote
Features
Specifications
Size: 98×98×35mm
Start Time: ≤3 Min
Zero Bias Stability: ≤0.02°/h
Zero-bias Repeatability: ≤0.02°/h
Random Walk Coefficient: ≤0.001º/h1/2
Scale Factor Nonlinearity: ≤20ppm
High Light:

Sagnac Effect Angular Rate Sensor

,

20ppm Gyro Sensor

,

Optical Sagnac Effect Gyroscope

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: F98B
Payment & Shipping Terms
Packaging Details: Sponge+ box
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 200/MONTH
Product Description

Inertial Angular Rate Sensor Optical Sagnac Effect Gyroscope Closed-Loop Gyro Sensor



This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis of the product. An angular rate sensing unit of the product is an optical fiber ring, a digital closed-loop detection circuit is used for extracting the optical path difference of clockwise and counterclockwise propagation light caused by external physical angular rate and sensed by the optical fiber ring, and meanwhile, the optical path difference signal is converted into a voltage signal for closed-loop feedback and control, so that the modulation and demodulation of the signal are realized, and the purpose of high-precision angular rate signal detection is achieved.



Serial number Test item Unit Technical requirements
1 Overall dimensions mm 98×98×35
2 Start time min ≤3
3

Zero bias stability

(10 s smoothing, 1σ)

º/h ≤0.02
4 Zero-bias repeatability º/h ≤0.02
5 Random walk coefficient º/h1/2 ≤0.001
6 Scale factor nonlinearity ppm ≤20
7 Scale factor repeatability ppm ≤20
8 Operating temperature -40~+60
9 Storage temperature -50~+70
10 Dynamic range (°)/s ±300
11 Supply voltage V +5V
12 Steady-state power consumption W <4

Size

Overall dimension (mm): (98 ± 0.1) × (98 ± 0.1) × (35 ± 0.1) (L × W × H);

Installation dimension (mm): (80 ± 0.1) × (80 ± 0.1) (L × W), Φ5.4mm × 4

Inertial Angular Rate Sensor , Closed Loop Optical Sagnac Effect Gyroscope 0

Electrical connection interface



Point number

Definition

Comment

1,9 +5V Power supply input
2,10 GND Power ground
5 RXD+ Gyro differential sorting and correcting
13 RXD- Gyro differential gating negative
6 TXD+ Gyro differential output positive
14 TXD+ Gyro differential output negative
3,4,7,8,11,12,15 —— Reserved
