2deg/H 10s Micro Gyro 500deg/S Range Optic Gyro Better Than Fog And Mems Gyro

1
MOQ
negotiable
Price
2deg/H 10s Micro Gyro 500deg/S Range Optic Gyro Better Than Fog And Mems Gyro
Features Gallery Product Description Request A Quote
Features
Specifications
Axis: One
Range: ±500 °/s
Scale Factor: 3600 LSB/o/s
Scale Factor Nonlinearity: ≤300 Ppm
Zero-bias Stability (10s, 1σ, °/H): ≤2
Bias (10s,1σ): ≤1.5 °/h
Angular Random Walk (°/H1/2: ≤0.05
High Light:

2deg/H Micro Gyro

,

500deg/S Optic Gyro

,

One Axis Fiber Optic Gyro

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Certification: CE
Model Number: FCG40
Payment & Shipping Terms
Packaging Details: Sponge+ box
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100/MONTH
Product Description

2deg/H 10s, 1σ Micro Gyro 500deg/S Range Optic Gyro Better Than Fog And Mems Gyro

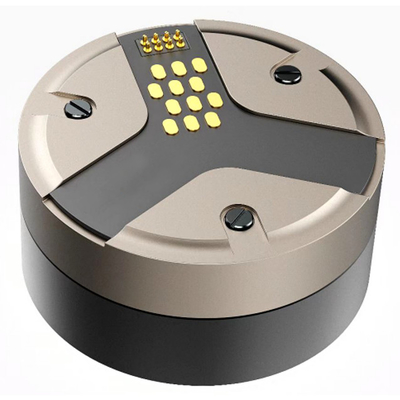

FOG-40 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.



Table 1 Main Performance Parameters



Serial number Project Performance indicators
1 Range (°/s) ±500
2 Scale Factor (LSB/o/s) 3600
3 Scale factor nonlinearity (ppm) ≤300
4 Zero-bias stability (10s, 1σ, °/H) ≤2
5 Zero-bias repeatability (1σ, °/H) ≤2
6 Angular random walk (°/H1/2 ≤0.05
7 Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H) ≤5
8 3dB Bandwidth (Hz) ≥400
9 Power supply (V) 5+0.15
10 Power Consumption (W) ≤1.5
11 Dimension (mm) φ40X20.5

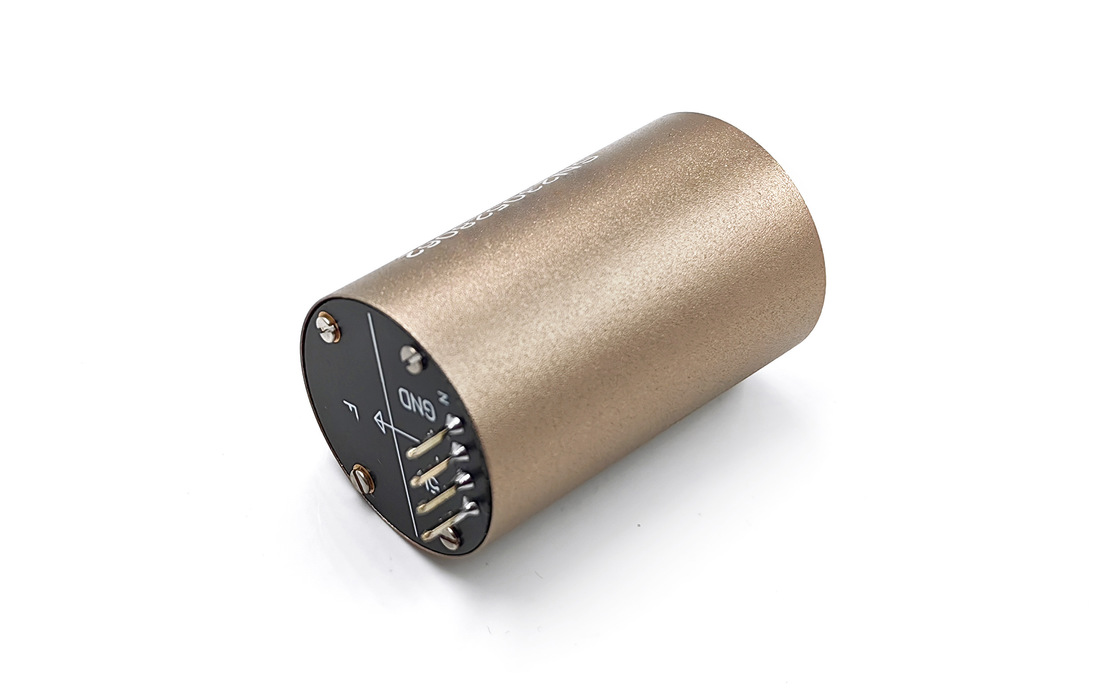

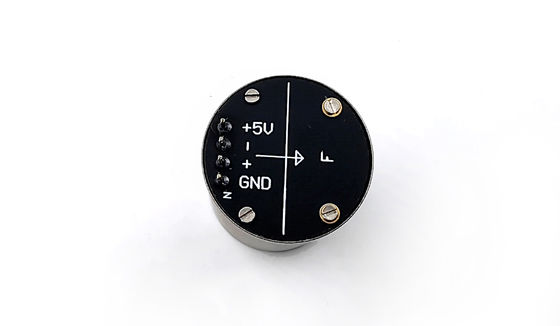

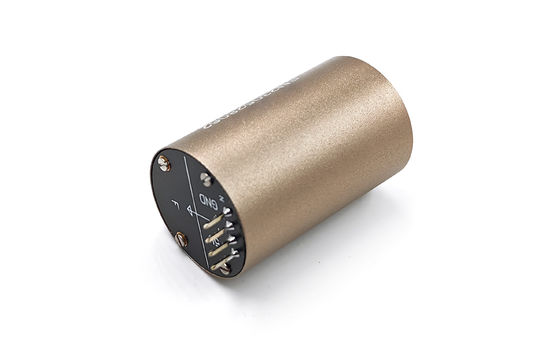

FOG-24 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics with digital output, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

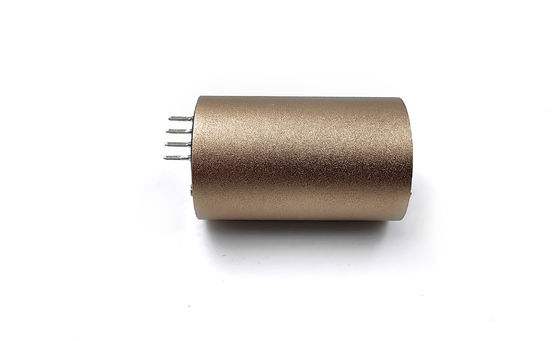

The product is cylindrical, with overall dimensions of φ24 mm × 40mm
Weight≤40g.
Operating temperature -40℃~+65℃.
Storage temperature -55℃~+85℃.
Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.



Installation dimension
