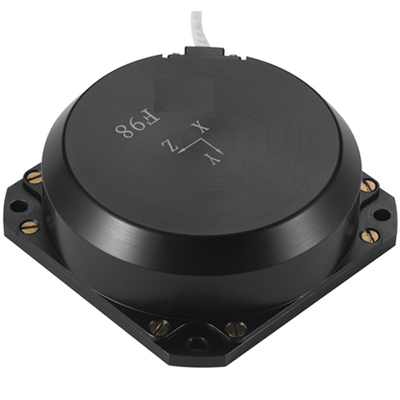

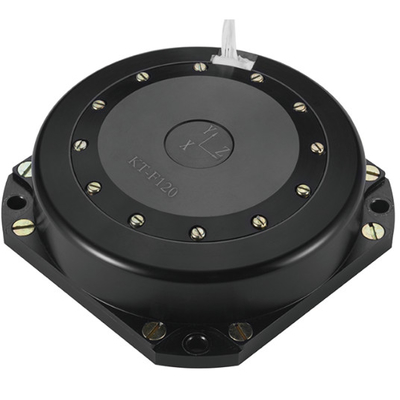

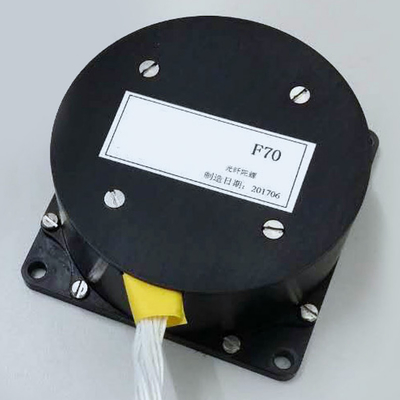

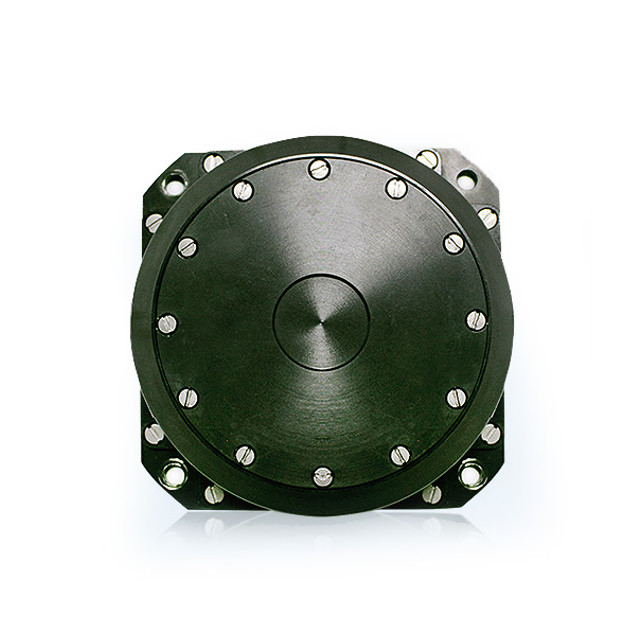

High Precision Single Axis Gyro 10ppm Scale Factor Repeatability

1
MOQ
7350 USD
Price
High Precision Single Axis Gyro 10ppm Scale Factor Repeatability
Features Gallery Product Description Request A Quote
Features
Specifications
Dimensions (mm): 70×70×32
Weight (g): <290
Start Time (s): 5
Random Walk Coefficient(º)/h1/2: ≤0.005
Bias Drift (°) / H (10s Smooth) -45~ + 70: ≤0.1
Scale Factor Repeatability (ppm): ≤10
Bias Drift (°) / H (10s Smooth, Fix Temperature): ≤0.02
Scale Factor Non-linearity (ppm): ≤10
High Light:

10ppm Single Axis Gyro

,

High Precision Single Axis Gyro

,

0.03degree/h Fiber Optic Gyro

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE
Model Number: F70-98
Payment & Shipping Terms
Packaging Details: 1KG
Delivery Time: 1 weeks for sample
Payment Terms: 100% in advance
Supply Ability: 100 pcs/month
Product Description

High-Precision Single Axis Gyro with ≤10ppm Scale Factor Repeatability and ≤0.03°/h Bias Repeatability

Product Description:

This product is a sensor based on the optical Sagnac effect, used to measure the rotation of a carrier along the sensitive axis. The digital closed-loop detection circuit is responsible for extracting the optical path difference of clockwise light caused by the detected angular velocity. The voltage signal of the optical path signal is modulated and demodulated. The whole process is a closed-loop feedback, which helps achieve the real-time angular velocity signal detection.



Features:

  • Fiber Optic Gyro: Single Axis Gyroscope
  • Bias drift (°) / h (10s smooth, fix temperature): ≤0.02
  • Application: Angular Speed Measure
  • Scale factor repeatability (ppm): ≤10
  • Bias repeatability (°) / h: ≤0.03
  • Scale factor non-linearity (ppm): ≤10


Applications:

The products have a wide range of applications, such as photoelectric cranes, cranes, flying platforms, inertial navigation systems, inertial measurement systems, optics, photographic instruments, platform stabilization devices, and inertial measurement instruments.

The products enjoy wide popularity due to their reliability, stability, affordability and convenience.

Their versatile applications make them a great choice for different purposes such as photography, industrial tasks, navigation tasks, and so on.



Technical Parameters:

Parameter Value
Dynamic range (°) / s ±500
Operate temperature (℃) -40~+70
Bias drift (°) / h (10s smooth) -45~ + 70: ≤0.1
Bias drift (°) / h (10s smooth, fix temperature) ≤0.02
Steady-state power consumption (full temperature) (W) <4
Bias repeatability (°) / h ≤0.03
Weight (g) <290
Scale factor repeatability (ppm) ≤10
Dimensions (mm) 70×70×32
Application Angular Speed Measure


Support and Services:

We offer technical support and services for our Fiber Optic Gyro product. Our team of experts provides comprehensive support to ensure that our customers receive the best experience possible. Our services include:

  • Installation and setup assistance
  • Troubleshooting and diagnostics
  • In-depth training and guidance
  • Hardware and software updates
  • Maintenance and repair services
  • Fault analysis and resolution
  • Technical consultations


Packing and Shipping:

Packaging and Shipping for Fiber Optic Gyro

The Fiber Optic Gyro should be securely packed for transport. Packaging materials should be chosen according to the product specifications and in consultation with the customer. The packaging should provide adequate protection against shock, vibration, and moisture.

The Fiber Optic Gyro should be shipped in accordance with the customer’s instructions, or in accordance with any applicable laws, regulations, or standards.

The Fiber Optic Gyro should be labeled clearly with the customer’s name, address, and contact information. All packages should be marked “FRAGILE” and handled with care.



FAQ:

Q1:What is the brand name of Fiber Optic Gyro?

A1: The brand name of Fiber Optic Gyro is avic.

Q2:What is the Model Number of Fiber Optic Gyro?

A2: The Model Number of Fiber Optic Gyro is F70-98.

Q3:Where is Fiber Optic Gyro produced?

A3: Fiber Optic Gyro is produced in China.

Q4:What is the certification of Fiber Optic Gyro?

A4: The certification of Fiber Optic Gyro is CE.

Q5:How many can be ordered for Fiber Optic Gyro at least? And how much per piece?

A5: The minimum order quantity of Fiber Optic Gyro is 1 and the price per piece is 7350 USD.
