Single Axis Digital Fiber Optic Gyro Low Bias

Name: Single Axis Digital Fiber Optic Gyro Low Bias
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Measuring Range:

-150°/s

Zero-bias Repeatability:

<1°/h

Zero-bias Stability:

<1°/h

Bandwidth:

>300Hz

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

f50b fiber optic gyro

low bias fiber optic gyro

rs422 fog gyro

Product Description

Single Axis Digital Fiber Optic Gyro Low Bias

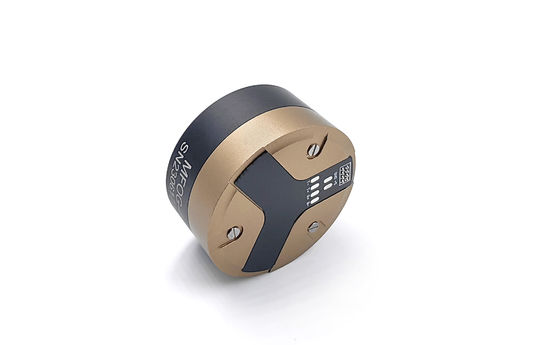

The MFOG-1703 adopts micro-nano fiber integration technology, achieving high accuracy in an ultra-compact cylindrical package (φ40*20mm). Weighing less than 40g and designed with no moving parts, it ensures long-term stability and zero wear. It is functionally equivalent to Fizoptika VG1703, ideal for small aerial or marine platforms.

Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

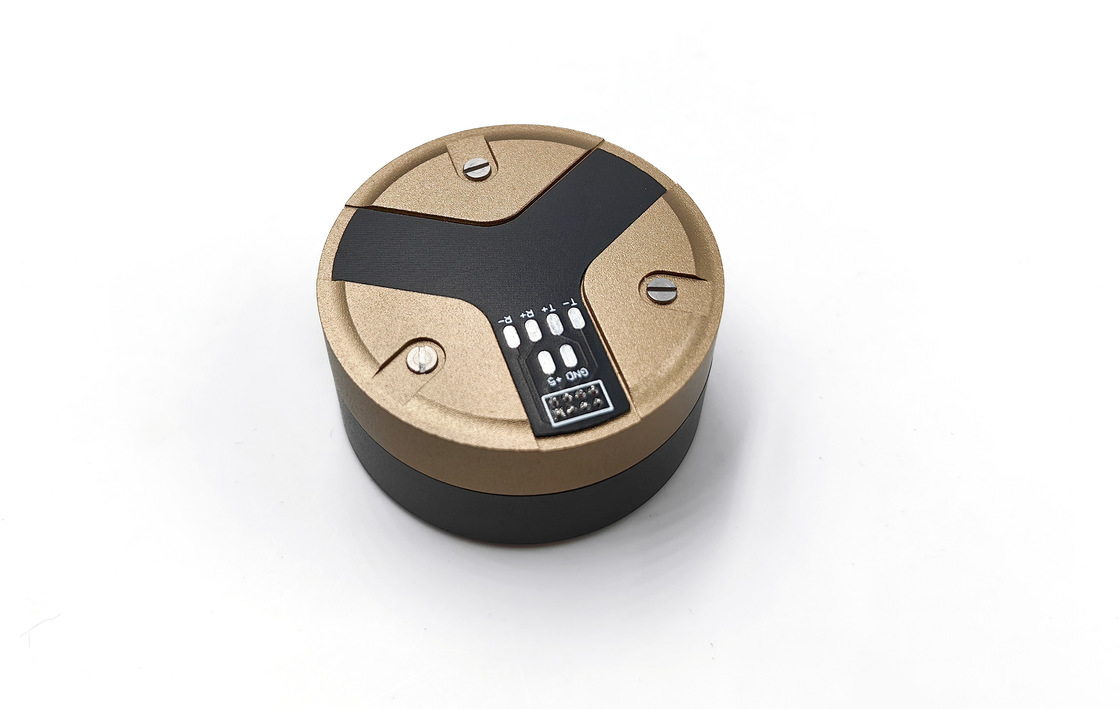

Appearance and Dimensions

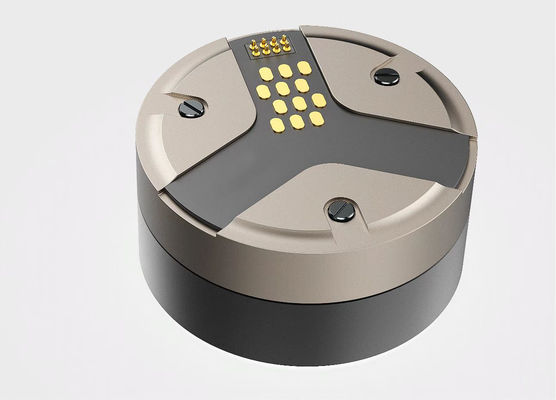

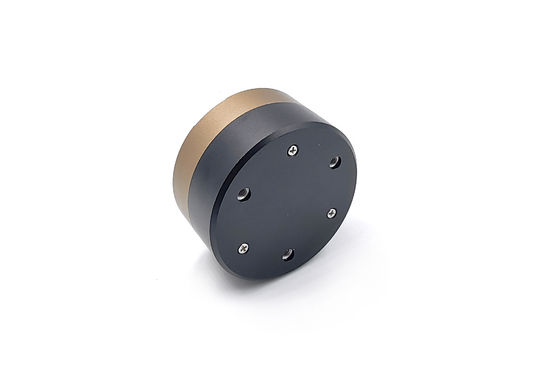

The product is cylindrical with overall dimension of φ40mm * 20mm, and 3 M3 threads on the bottom are connected with the outside.

Weight

≤40g

Operating Temperature

-40℃~+70℃

Storage Temperature

-55℃~+85℃

Random Vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/ °/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h 1/2)	≤0.02
6	Zero-bias temperature sensitivity (uV/° C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/° C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power supply (V)	5+0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 * 20
