Single Axis Temperature Chamber Turntable 50kg Payload Rate Table

1
MOQ
Single Axis Temperature Chamber Turntable 50kg Payload Rate Table
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Multi-function Turntable
Load Capacity: 50kg
Table Size: Φ 500mm
Table Facet Flatness: 0.02 Mm
Runout Of Table End Face: 0.05mm
Magnetic Flux Leakage: Less Than 1mT
Rotation Accuracy: ± 3 ″
System Bandwidth: 5~ 100Hz
High Light:

Temperature Chamber Turntable

,

Single Axis Turntable

,

50kg Single Axis Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 1LT-300W
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

Precise Single-Axis Multi-Function Rate Turntable For Ins Gyro Test

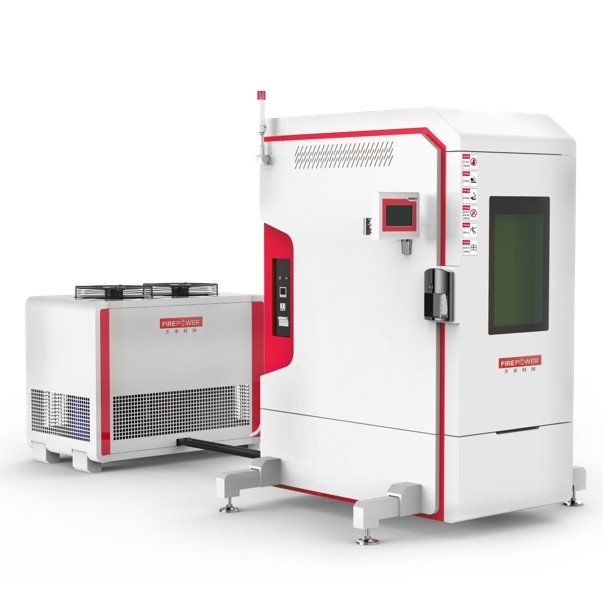

The single-axis temperature box turntable is composed of a single-axis turntable with horizontal rotation and a workbench installed in the temperature box . The cooling of the temperature box adopts an independent external cooling device . The turntable is fixed on the vibration isolation frame . The data acquisition of the test product and the external control of the operation of the device shall be carried out by the operator through the system for transmitting control commands and data acquisition located on the operator console . The product has position control , rate control and computer automatic status control and data acquisition , processing and display functions , with speed limit setting and

overspeed protection and temperature control functions .

(The temperature control accuracy and working temperature range of the temperature box can be customized according to customer requirements , the maximum can be customized -70~ 150 configuration)



1LT300-W 1LT400-W 1LT500-W 1LT600-W 1LT700-W Unit
  Vertical horizontal rotation /
30/50 50/70 30 30/50 50/70 Kg(Optional)
Φ500 Φ700 Φ300 Φ500 Φ700 mm
0.02 0.03 0.03 0.03 0.03 mm
350 650 350 650 850 mm
±1~3 ±1~3 ±1~3 ±1~3 ±1~3
±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 °
±1~3 ±1~3 ±1~3 ±1~3 ±1~3
0.0001 0.0001 0.0001 0.0001 0.0001 °
0.001〜10000 0.001〜3000 0.001〜10000 0.001〜3000 0.001〜2000 °/s

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

°/s

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1° Average

10 ° Average 360 ° Average

4500 3000 10000 3000 3000 °/s2
Optional Optional Optional Optional Optional /
0.0001 0.0001 0.0001 0.0001 0.0001 °
10~50 10~50 10~50 10~50 10~50 Optioanl
5~80Hz 5~80Hz 5~100Hz 5~100Hz 5~100Hz Hz(Optional)
≤±0.03 ≤±0.01 ≤±0.03 ≤±0.03 ≤±0.03 V
-60~+100 -60~+100 -60~+100 -70~+100 -70~+100
±0.5 ±0.5 ±0.5 ±0.5 ±0.5
2 2 2 2 2
