Product Name: Multi-function Turntable
Load Capacity: 50kg
Table Size: Φ 500mm
Table Facet Flatness: 0.02 Mm
Runout Of Table End Face: 0.05mm
Magnetic Flux Leakage: Less Than 1mT
Rotation Accuracy: ± 3 ″
System Bandwidth: 5~ 100Hz
High Light:

Precision Two Axis Turntable

,

multi-function Two Axis Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 2LT300
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

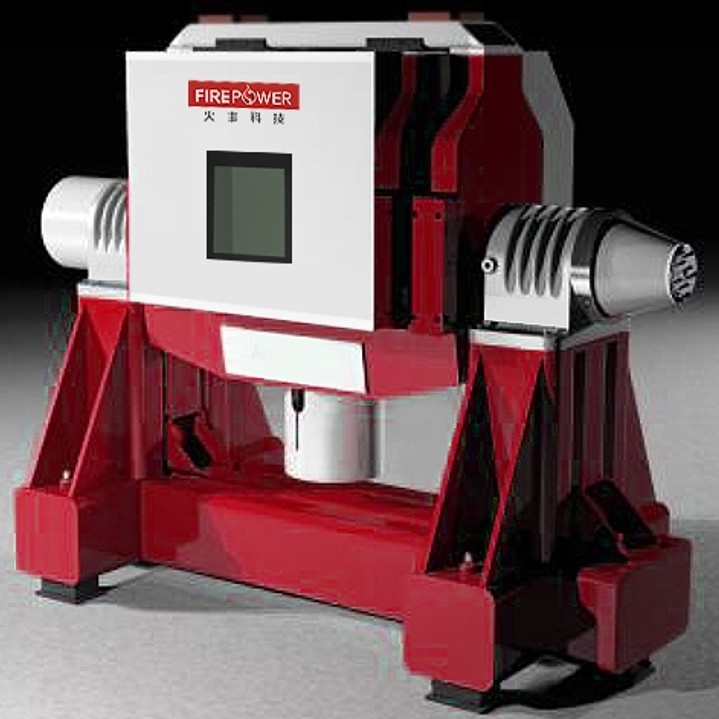

Two Axis Turntable Provide Angular Position / Angular Rate / Angular Acceleration



The two-axis turntable is a kind of precision test equipment , which can provide the angular position , angular rate and angular acceleration motion excitation of two orthogonal axes to realize the test and evaluation of the measured parts such as gyro , inertial measurement device and accelerometer, and can also realize the dynamic motion simulation , servo , simulation and angular vibration of

the two rotation directions in space .



1) Control system: high-performance control unit , high-precision Angle measuring system , PWM digital servo amplifier, direct drive servo motor.

2) Main components: support , drive motor, power amplifier, Angle measuring element , AD/ DA card , etc . (all use high-performance products) .

3 ) Structure: vertical , horizontal .





Index 2LT300 2LT400 2LT500 2LT600 2LT700 Unit





Angular rate range



Structural form



Vertical horizontal rotation



/
Mesa material



Stainless steel/aluminum alloy optional



Kg
Maximum load weight 30~50 30~50 30~50 30~60 50~70 mm(Optional)
Table size Φ300 Φ400 Φ500 Φ600 Φ700 mm
Mesa flatness 0.02 0.02 0.05 0.05 0.05 mm
Table height 400 540 640 740 840 mm
Rotation accuracy ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″ (Optional)
Angular position range ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 °
Angular position accuracy ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″ (Optional)
Angular resolution 0.0001 0.0001 0.0001 0.0001 0.0001 °
  0.001〜10000 0.001〜2000 0.001〜1500 0.001〜1000 0.001〜1000 °/s



Speed smoothness

Angular rate accuracy



ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

°/s


1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1° Average

10 ° Average 360 ° Average

Maximum angular

acceleration

Inner10000 Inner14500 Inner13000 Inner12000 Inner12000
Outer3000 Outer2000 Outer1000 O t r500 Outer500
Rocking function Optional Optional Optional Optional Optional °/s2
Rate resolution 0.0001 0.0001 0.0001 0.0001 0.0001 customizable
Slip ring number 10~72 10~72 10~72 10~72 10~72 Customizable
System bandwidth 5~80Hz 5~80Hz 5~100Hz 5~100Hz 5~100Hz °
Slip-ring voice ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 Optioanl
Leakage flux ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 Hz(Optional)
