Product Name: Multi-function Turntable
Load Capacity: 30kg
Table Size: Φ 320mm
Table Facet Flatness: 0.02 Mm
Runout Of Table End Face: 0.05mm
Magnetic Flux Leakage: Less Than 1mT
Rotation Accuracy: ± 3 ″
Swing Range: 0 ° ~ ± 45 °
High Light:

Single Axis Turntable


Multi-Function Turntable 30kg


Single Axis Turntable 30kg

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: TD-320
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

Single Axis Multi-Function Turntable Rate Load 30kg

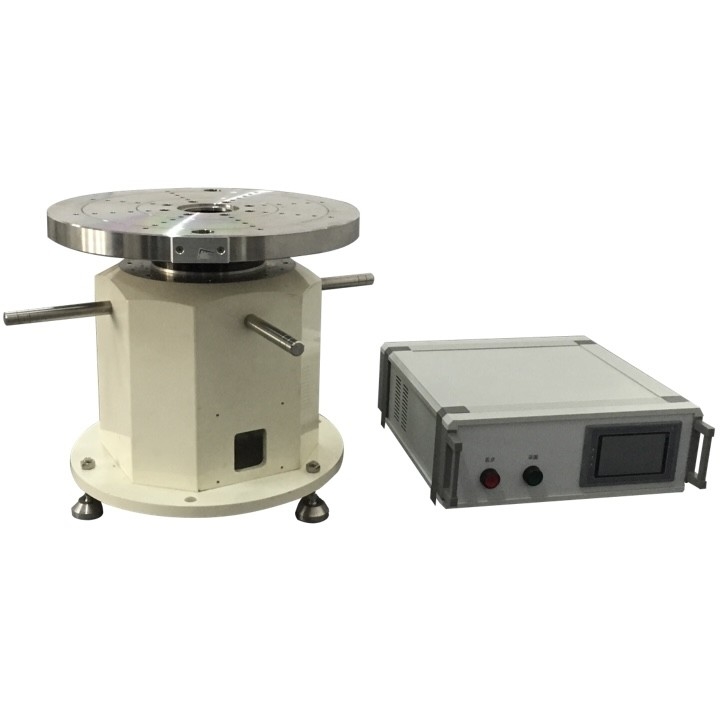

TD-320/450 single-axis multi-function turntable is used for various position, rate and swing tests and detection of rate gyroscope and its inertial measurement unit. The turntable can also be used for the performance test of inertial navigation devices and inertial navigation systems under high and low temperature conditions after the temperature control box, temperature control system and auxiliary shaft are purchased.


Main technical indicators

1. Table top of mechanical table body

① Table top material: stainless steel

② Maximum load weight of table top: 30 Kg

③ Table size: Φ 320mm

④ Flatness of table: 0.02 mm

⑤ Runout of table end face: 0.05mm

⑥ Mounting screw hole on the table: 25 mm (radial shape, 5 holes × 8 lines evenly distributed)

⑦Magnetic flux leakage: less than 1mT

2. Rotation accuracy of shafting: ± 3 ″

3. Angular position range: 0.0000 ° ~ ± 359.9999 °

4. Angular position accuracy: ± 3 ″

5. Angular resolution 0.0001 °

6. Angular rate range 0.001 °/s ~ 1000 °/s

7. Angular rate accuracy and rate stability

① ω < 1 °/s 5 × 10-3(1 ° average)

② 1 °/s < ω < 10 °/s 5 × 10-4(10 ° average)

③ 10 °/s < ω 5 × 10-5(360 ° average)

8. Angular acceleration range: 1 °/s2~ 100 °/s2(initial default: 10 °/s)

9. Maximum angular acceleration 300 °/s2

10. Swing range: 0 ° ~ ± 45 °

11. Swing cycle: 2S ~ 20s

12. Bandwidth of control system: 10Hz (-3dB)

13. Reliability

① Continuous working time: 48h

② Mean time between failures 2000h

14. The slip ring adopts 30 loops, including 2A/20 loops (twisted pair shielded wire) and 3A/10 loops (unshielded wire).

15. Temperature control box system (optional)

① Size of working cavity shall not be less than W500mm × H500mm × D500mm

② Temperature control range: -45 ℃ ~ 85 ℃

③ Temperature control accuracy: ± 1 ℃

④ Heating and cooling rate: ± 2 ℃/min (average in the whole process)

16. The turntable computer has the ability to store the data related to the operation of the turntable, such as time, turntable position and angular rate, and has the ability to output data in real time through the serial port. The output frequency is ≥ 5Hz. Capable of controlling the operation of the turntable and the temperature through an external computer (through a serial port). Communication protocol: RS232 9.6Kbs. The rear panel of the electric control box is provided with a standard RS232 serial interface.


The main functions are as follows:

  1. Position control, speed control and swing control functions;
  2. It has the functions of computer automatic state control, data acquisition, processing and display.
  3.  with speed limit setting and overspeed protection functions;
  4.  The full temperature test can be carried out after the temperature control box, temperature control system and auxiliary shaft are equipped.
