Dual-Axis Motion Simulation Turntable For Angular Testing

1
MOQ
Dual-Axis Motion Simulation Turntable For Angular Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Multi-function Turntable
Load Capacity: 50kg
Table Size: Φ 500mm
Table Facet Flatnes: 0.02 Mm
Runout Of Table End Face: 0.05mm
Magnetic Flux Leakage: Less Than 1mT
Rotation Accuracy: ± 3 ″
System Bandwidth: 5~ 100Hz
High Light:

Angular Testing Motion Simulation Turntable

,

Dual Axis Motion Simulation Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 2LT400
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

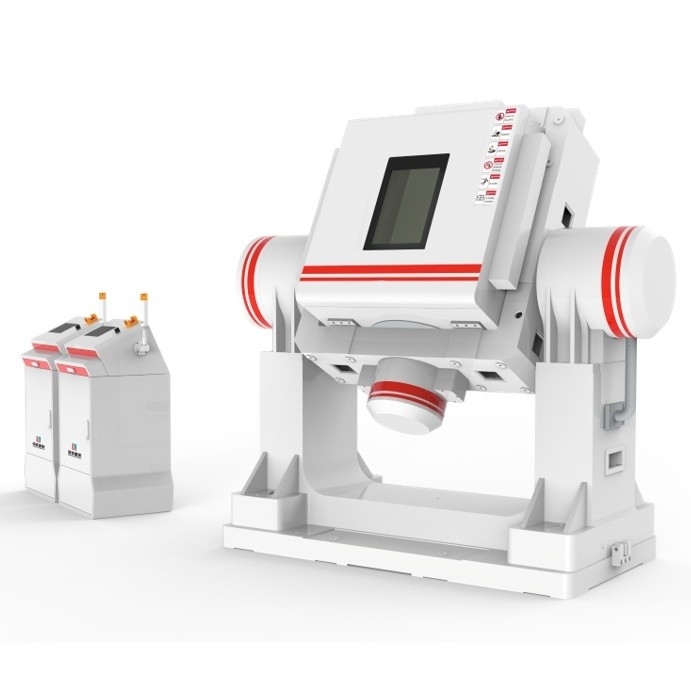

Dual-Axis Motion Simulation Turntable for Angular Testing



Two-axis temperature turntable with temperature chamber is composed of three parts: mechanical platform body, measurement and control system and temperature control system . The platform body adopts U-T structure form and precision mechanical shafting , internal orientation and external pitching , with position and speed movement functions , providing accurate single axis and double axis positioning and rate reference for the measured load. The temperature control box provides high and low temperature test environment for the load. Used for static testing and calibration of inertial element components and inertial navigation systems .



About product





                        Index           2LT300       2LT400        2LT500       2LT600       2LT700           Unit





Angular rate range



Structural form



Vertical horizontal rotation





/
Mesa material





Stainless steel/aluminum alloy optional





Kg
Maximum load weight 30~50 30~50 30~50 30~60 50~70 mm(Optional)
Table size Φ300 Φ400 Φ500 Φ600 Φ700 mm
Mesa flatness 0.02 0.02 0.05 0.05 0.05 mm
Table height 400 540 640 740 840 mm
Rotation accuracy ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″ (Optional)
Angular position range ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 ±0〜 ±360 °
Angular position accuracy ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″ (Optional)
Angular resolution 0.0001 0.0001 0.0001 0.0001 0.0001 °
  0.001〜10000 0.001〜2000 0.001〜1500 0.001〜1000 0.001〜1000 °/s



Speed smoothness

Angular rate accuracy



ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

ω<1

1<ω<10

10<ω

°/s


1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1° Average

10 ° Average 360 ° Average

Maximum angular

acceleration

Inner10000 Inner14500 Inner13000 Inner12000 Inner12000
Outer3000 Outer2000 Outer1000 O t r500 Outer500
Rocking function Optional Optional Optional Optional Optional °/s2
Rate resolution 0.0001 0.0001 0.0001 0.0001 0.0001 customizable
Slip ring number 10~72 10~72 10~72 10~72 10~72 Customizable
System bandwidth 5~80Hz 5~80Hz 5~100Hz 5~100Hz 5~100Hz °
Slip-ring voice ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 ≤±0.03 Optioanl
Leakage flux ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 Hz(Optional)



About company



HONG KONG AVIONICS TECHNOLOGY CO., LIMITED focuses on China's aerospace electronics export services, including gyro, accelerometer, satellite navigation, inertia turntable, test equipment for the main business, the company core team who graduated from the domestic well-known university of science and technology, and aerospace technology, aerospace science and industry, China's electricity, China north, ordnance industry, heavy industry, national defense science and technology university of science and technology research institutions such as a strategic partner, To provide users with professional product consulting, customized services, quality control services.



R&D and Innovation

In order to let customers have a better use experience, we have been working hard.



In the process of cooperation with customers, we provide customers with the support they need, for customers in the process of purchase, use may put forward any requirements, questions, provide a full range of solutions, so that customers buy, use more convenient.



Over the years we pay attention to the internal quality of products, through rigorous work, to create a unique performance of the product. To this end, we have established our own RESEARCH and development center, and constantly enrich and expand its strength.



We have a group of professional skills, industry experience of high-quality management and R & D technical personnel.

Company and Harbin industrial university, national university of defense technology, south China university of technology and other advanced education has established the manufacture-learning-research cooperation, undertaken the national key projects and major projects of production, study and study and so on more than 20 projects of science and technology, developed more than 100 high technology products, research and development of the attached transfer machine type inertial navigation system is to obtain X contest.



Development strategy

"One mind, Two merge, Three forces, five modernizations"



"One mind" :

Firm in the original aspiration of "serving the country by aviation", earnestly fulfilling the mission of "making China an aviation power";



"Two merge" :

Implementing a new development model of "military-civilian integration" and "industrial integration";



"Three forces" :

To become a world-class aviation enterprise group with "leading innovation, advanced cultural strength and excellent competitiveness";



"Five Modernizations" :

Adhere to the development path and principle of "intensive operation, accurate management, market-oriented reform, systematic development, international win-win".
