Three-Axis Test Turntable with High Load Capacity for Gyro Calibration and Testing
Product Description

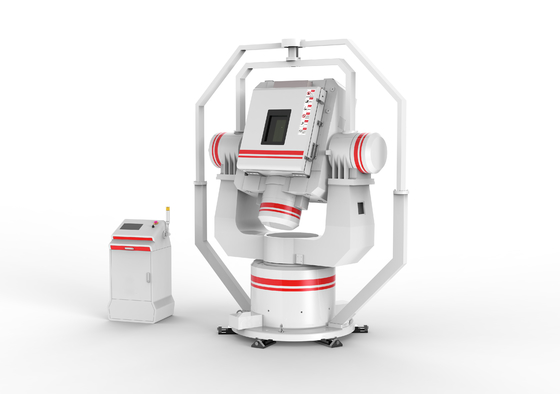

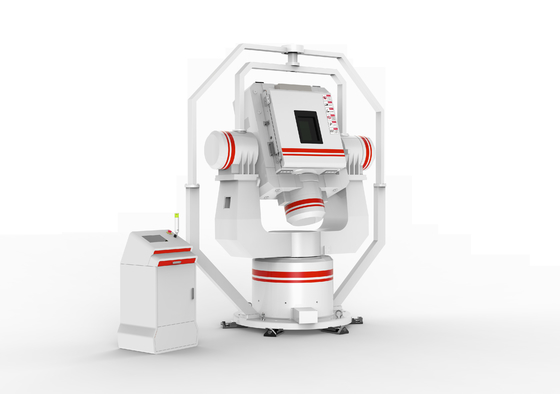

3TD-320 is a three axis half-frame structure, it has self-check and simulation function(including rate and position simulation). The system has good man-machine interface. operation is convenient and reliable by menu, zero point could be set freely. The system could protect the turntable and tested object from unexpected abnormal status such as over-speed, over-limit, emergency shut off.
Product Paremeters
| Load capacity | 30kg |
| End face jerk value | <0.01mm |
| Wobble error | Inner/outer frame: 360° Mid frame: 120° |
| Rotary angle range | Continuous infinite |
| Three axis intersection point error | 0.1mm within radius ball |
| Axis perpendicularity | ≤10' |
| Conductive slip rings | 60 rings |
| Inner ring | Mid-ring | Outer ring | |
| Angular position measure accuracy | ±7.2'' | ||
| Angular position measure resolution | 0.36'' | ||
| Angular position measure repeatability | ±7.2'' | ||
| Rate accuracy | 1% when it is ±0.001°/s | ||
|
Max angular speed |
400°/s | 400°/s | 300°/s |
|
Max angle acceleration
|
1000°/s2 | 1000°/s2 | 800°/s2 |
| Min smooth angular acceleration | 0.001°/s2 | ||
| Position state passband ΔA/A<3%, ΔΦ<3° ΔA/A<5%, ΔΦ<5° ΔA/A<10%, ΔΦ<10° |
3Hz 6Hz 8Hz |
3Hz 5Hz 6Hz |
3Hz 4Hz 6Hz |
| Speed state passband ΔA/A<3%, ΔΦ<3° ΔA/A<10%, ΔΦ<10° |
3Hz 8Hz |
3Hz 6Hz |
3Hz 6Hz |
