Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber

Brand Name: Firepower
Model Number: 2TD-320
MOQ: 1
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 10 pcs/5 months
Detail Information
Place of Origin:
CHINA
Certification:
CE
Product Name:
Dual Axis Rate Turntable
Load Weight:
20kg
Load Plate Size:
Ø320mm
Rotary Angle Range:
Continuous Rotation
Rate Range:
±0.001°/s~±200°/s
Wobble Error:
≤±2''
Rotary Table Structure:
U-T Type
Max Dual Axis Linkage Rate:
60°/s
Packaging Details:
Wooden Box
Supply Ability:
10 pcs/5 months
Highlight:

Precision Dual Axis Turntable

,

Dual Axis Positioning Rate Turntable

,

Dual Axis Turntable with Temperature Chamber

Product Description

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber



Product Description



The control mode include remote control and on-site control. By computer, working status, running parameter set and control, timing sampling, storage, display relevant data of running and transferring data in real time. It has good human-computer interface.



Product Paremeters



Load capacity 20kg
Table facet diameter Ø320mm
Table facet flatness 0.01mm
Wobble error Main axis: ≤±2''
Axes perpendicularity ≤±2''
Rotary angle range Inner loop: continuous infinite
Outer loop: +40°~-80°
Working mode Positioning, rate
Slip rings 40 rings
Angular position measure accuracy ±3''
Angular position measure resolution 0.36''
Angular position repeatability ±2''
Angular position control accuracy 2''
Control resolution 0.0001°
Rate range ±0.001°/s~±200°/s
Rate accuracy and smoothness 1x10-4(360° interval)
Rate resolution 0.0001°/s
Max dual axis linkage rate 60°/s
Sway frequency(dual axis) 5Hz(5kg load)
Sway amplitude(dual axis) 0.5°
Waveform distortion 3%



Detailed photos

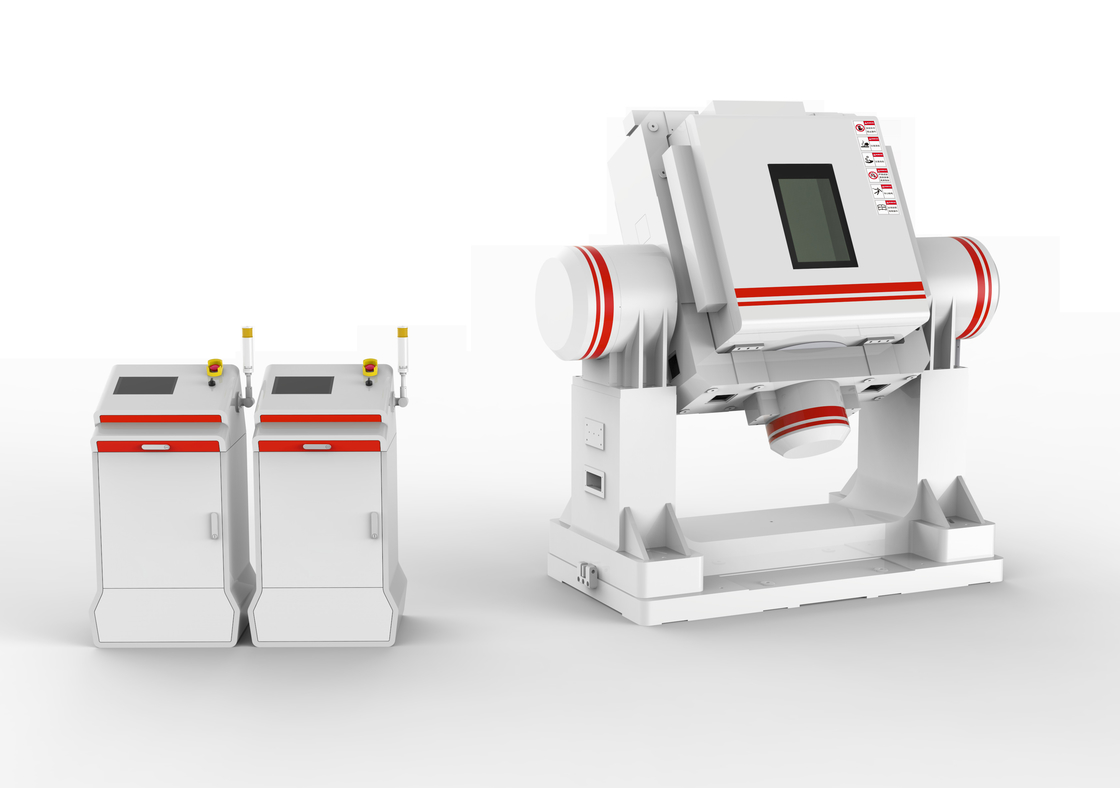

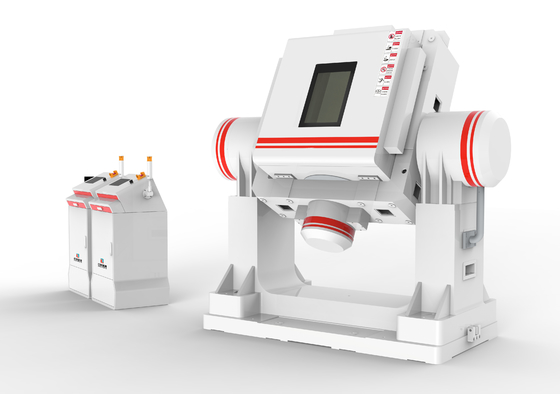

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 0

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 1





Main Applications



Main Applications

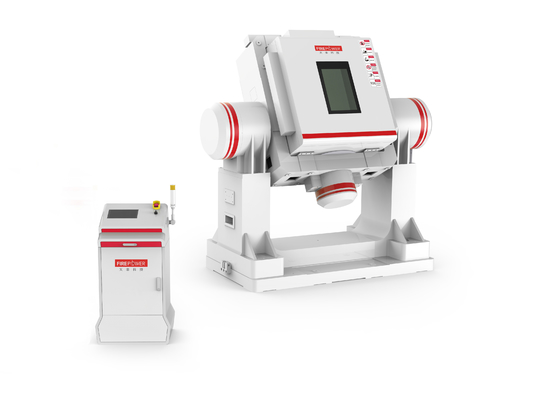

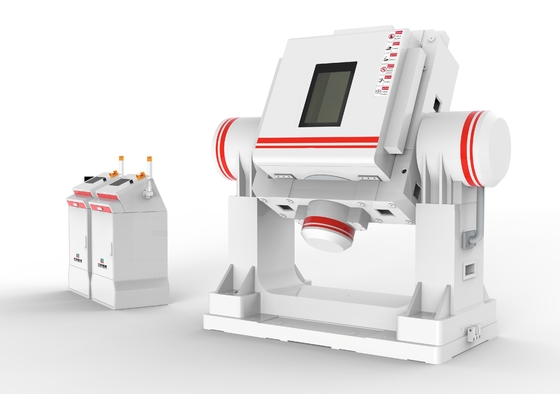

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 2

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 3

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 4



Factory photos



Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 5

Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 6



Precision Dual Axis Positioning Rate Turntable 20kg with Temperature Chamber 7







FAQ



Q1. What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.



Q2. How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.
4) We provide test report to customer to confirm before shipment;
5) If any unit was confirmed by customer and us not consistent with agreed specification or test report, we accept replacement/return/refund till customer's acceptance.


Q3. Do you accept OEM or ODM order?
A: Yes, we are a professional manufacturer that can provide OEM and ODM services according to customer needs



Q4. What are your terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.



Q5. What is the payment way?
A: TT, L/C, Pay Later, West Union,Online Bank Payment.



Q6. What is warranty?
A: Standard 12 months and negotiable for longer warranty.



Q7. What is the packing quality?
A: For sample order, we use carton box with sponge, and batch order, we use wooden box.



Q8. What is final price?
A: If standard product, price as in the price table, if customized product, price by checking with sales, so as to different qty needs.



Q9. How to choose product?
A: We are a professional manufacturer that can provide standard product on shafe, or products by customer's specific requirements;
1) Customer raise some certain different technical requirements based on standard products;
2) Customer provide specific and comprehensive technical requirements to sales to evaluate;
3) Customer explain application to sales to provide suitable products;
