RS232 High Speed Dual Axis Turntable for Precision Positioning
Product Description

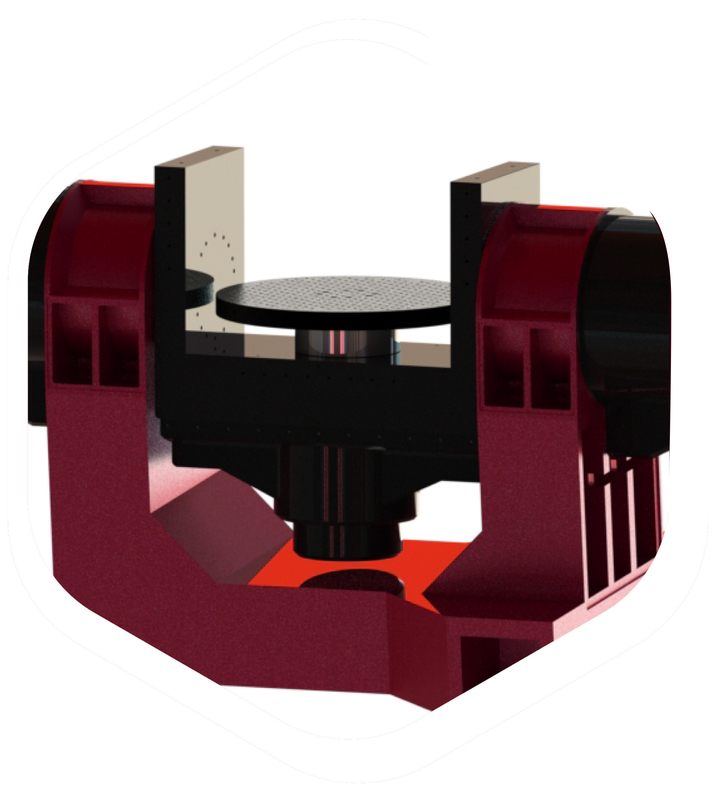

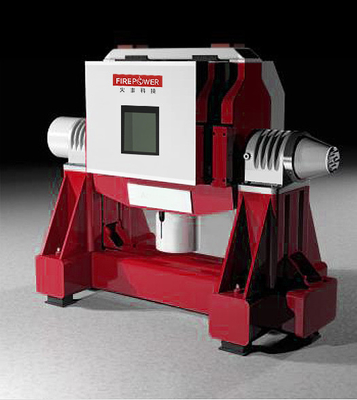

2TS-320B, tilting-type rate turntable are dual axis facet type mechanical shafting rate and positioning turntable. Inner loop is automatic main axis, owning functions of rate and positioning; outer loop is manual-operation tilting axis, owning functions of positioning. And they are also equipped with range adjustable heading axis. The turntable is equipped with standard serial port. Control and acquisition could be proceeded by computer, high test accuracy, high performance in rate smoothness, high accuracy positioning control. It is mainly used to dynamic and static test of inertial navigation system and device.
| items | 2ST-320B | 2ST-640A |
| Load capacity | 20kg | 30kg |
| Max tested object size | Ø320 x 250mm | 400 x 400 x 400mm |
| Table facet diameter | Ø320mm | Ø640mm |
| Table facet flatness | 0.01mm | 0.01mm |
| Table facet jerk value | 0.01mm | 0.01mm |
| Table facet material | Stainless steel | Granite or stainless steel, super hard aluminum, casting |
| wobble error | ±2'' | ±2'' |
| Axes perpendicularity | ±2'' | ±2'' |
| Rotary angle range | continuous | continuous |
| Heading adjustment range/accuracy | ±3/±2'' | ±3/±2'' |
| Working mode | Inner loop: position, rate | Inner loop: position, rate Outer loop: position |
| Machine body weight | About 620kg | About 1000kg |
| Outline size | Appr 800 x 670 x 920mm | Appr 1600 x 1100 x 1500mm |
| Slip rings | 40 rings x 3A | 60 rings x 2A |
| Absolute zero | yes | |
| Electrical control cabinet | 19'' standard cabinet Height: 1600mm |
19'' standard cabinet Height: 1600mm |
| Computer port | IEE-488 or RS232 | RS232 |
| item | 2TS-320B | 2TS-640A | |||
| Inner loop(principal axis) | Outer loop(tilting axis) | Inner loop(principal axis) | Outer loop(tilting axis) | ||
| Angular position measure accuracy | ±2''~±5'' | ±2''~±5'' | ±2''~±5'' | ±2''~±5'' | |
| Angular position measure resolution | 0.36'' | 0.36'' | 0.36'' | 0.36'' | |
| Angular position measure repeatibility | ±2″ | ±2″ | ±2″ | ±2″ | |
| rate range | 0.001°/s~720°/s | 0.001°/s~400°/s | |||
| rate accuracy and smoothness | (2~5) x 10-3 (360° interval ) |
(2~5) x 10-3 (360° interval ) |
|||
| Cycle pulse accuracy | ±2″ | ||||
