products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

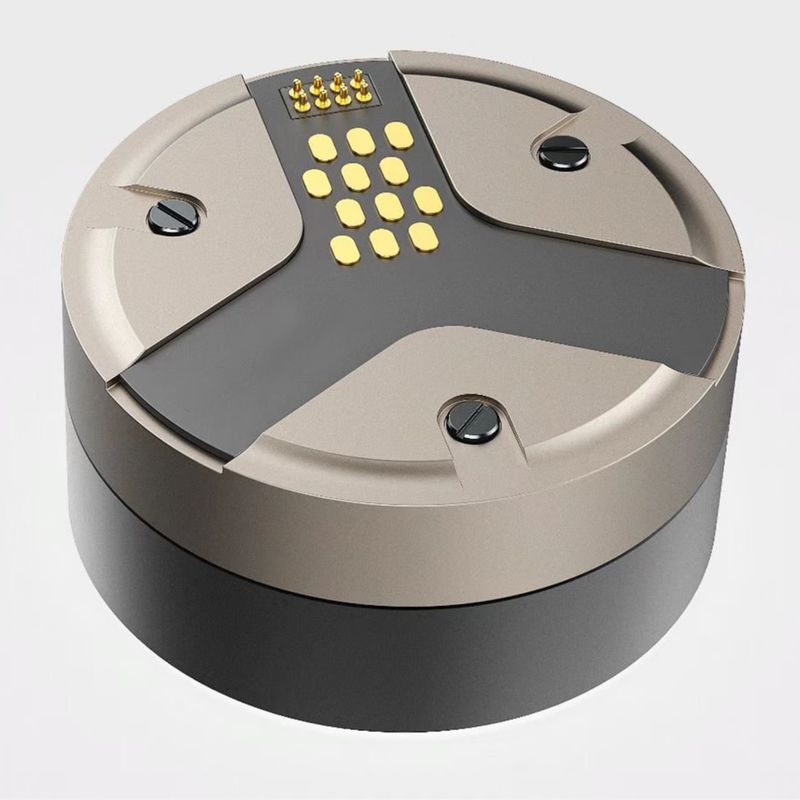

Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h

Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h

Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h

Brand Name: Firepower
Model Number: MFOG-40A
MOQ: 1 PCS
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 100 PCS per month
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Measuring Range:
±300~±500(optional)
Zero Bias Stability:
≤1°/h(10s, 1
Zero Bias Repeatability At Full Temperature:
≤2°/h(1
Random Walk Coefficient:
0.02°/√h
Scale Factor Nonlinearity:
500ppm
Scale Factor Repeatability:
300ppm
Scale Factor Asymmetry:
300ppm
Start Time:
≤2s
Bandwidth:
300Hz
Power Supply:
5±0.15V
Power:
≤1.5W
Operating Temperature:
-45~+70°C
Storage Temperature:
-55~+85°C
Vibration:
20~2000Hz, 0.04g²/Hz
Impact:
30g, 11ms
Data Refresh Rate:
2000 Hz (Customizable)
Baud Rate:
921600 (Customizable)
Overall Dimensions:
Φ40mm*20mm
Weight:
Aluminum Alloy Shell≤45g, Permalloy Shell≤75g
Packaging Details:
Sponge and box
Supply Ability:
100 PCS per month
Highlight:

Micro-nano integrated fiber optic gyroscope

,

Precision fiber optic gyroscope

,

Precision Fiber Optic Gyro

Product Description

Product Description


MFOG-40 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

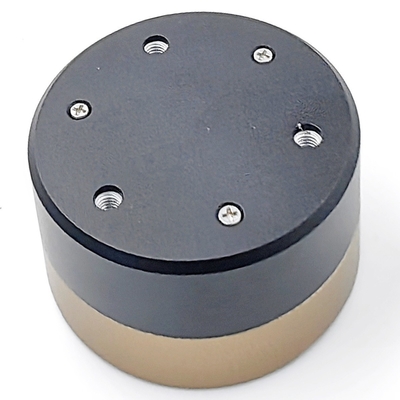

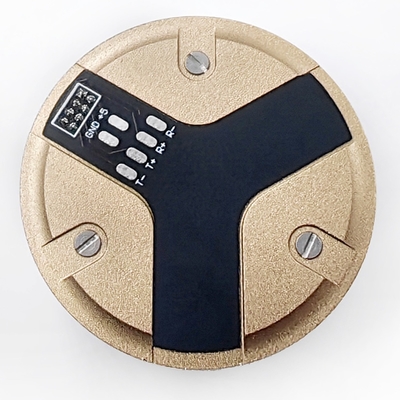

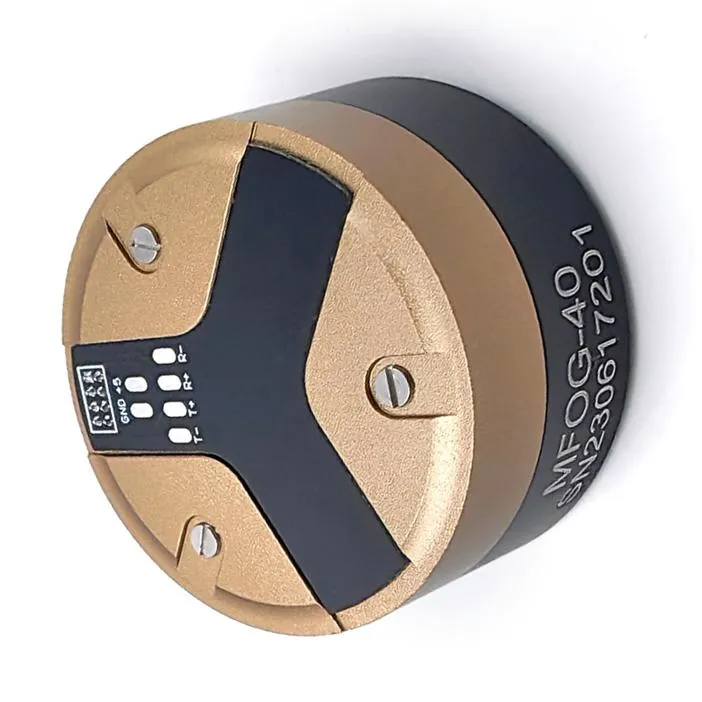

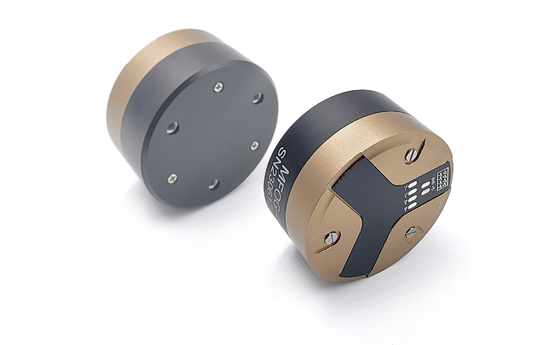

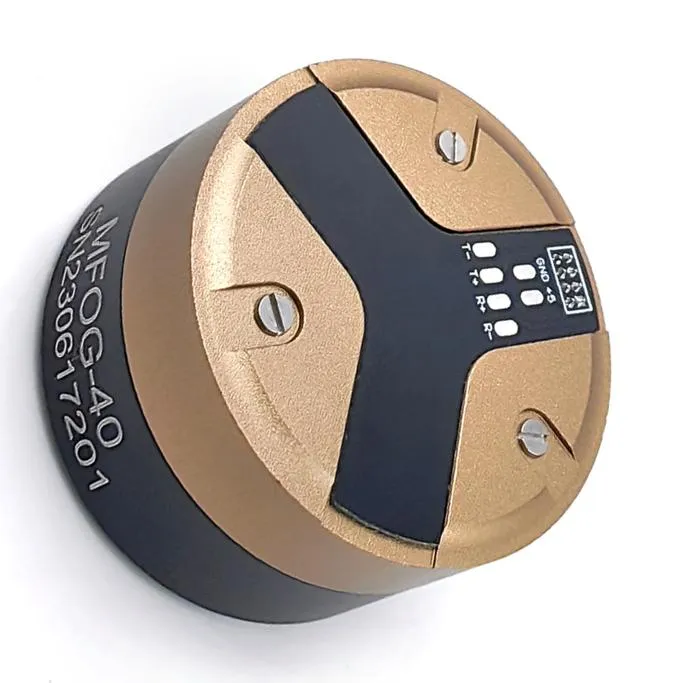

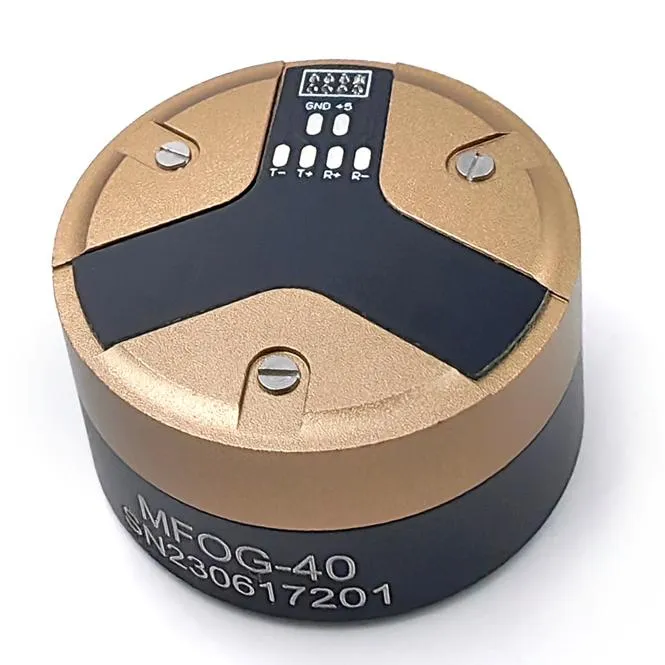

Detailed Photos

Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h 0
Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h 1
Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h 2


Product Parameters

Serial number Project Performance indicators
1 Range (°/s) ±500
2 Scale Factor (LSB/o/s) 3600
3 Scale factor nonlinearity (ppm) ≤300
4 Zero-bias stability (10s, 1σ, °/H) ≤2
5 Zero-bias repeatability (1σ, °/H) ≤2
6 Angular random walk (°/H1/2 ≤0.05
7 Zero-bias stability at full temperature (10s, 1σ, -40 ºC ~ + 65 ºC, °/H) ≤5
8 3dB Bandwidth (Hz) ≥400
9 Power supply (V) 5+0.15
10 Power Consumption (W) ≤1.5
11 Dimension (mm) φ40X20.5

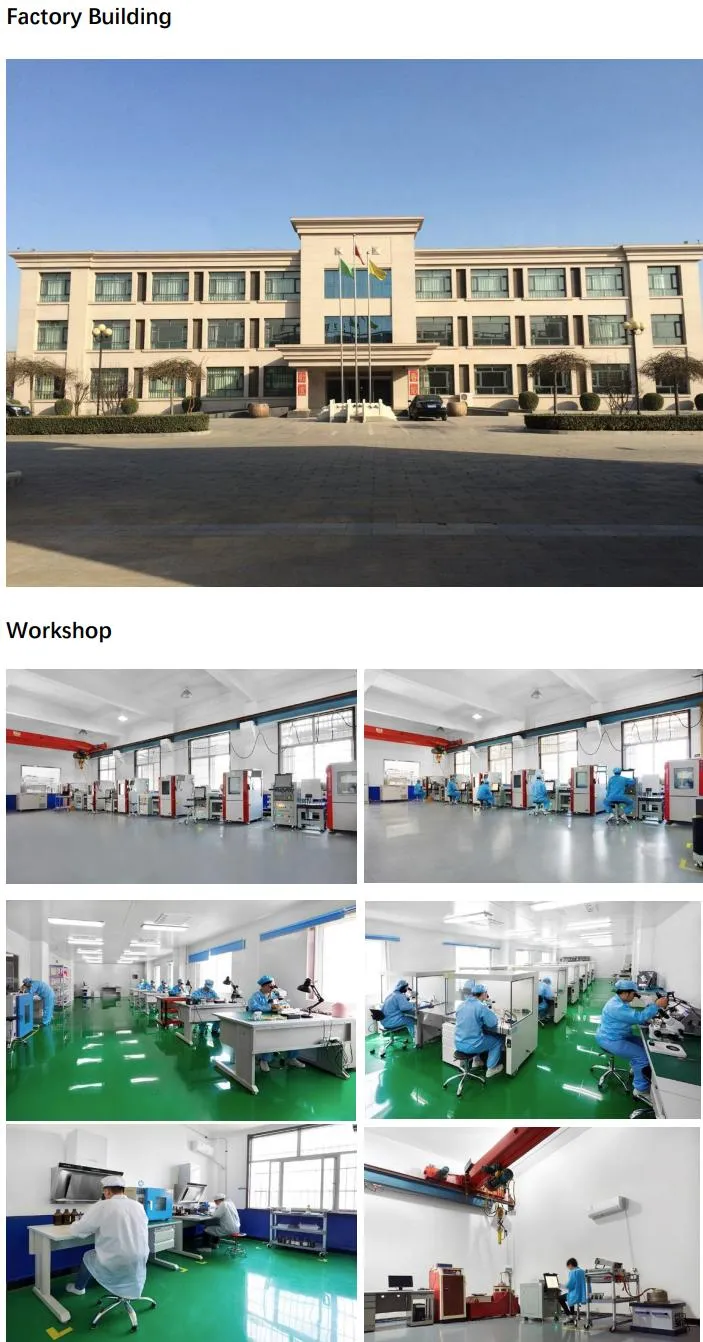

Company Profile


Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h 3Micro-nano Integrated Fiber Optic Gyroscope Precision Zero Bias Stability Better Than 0.5°/h 4
