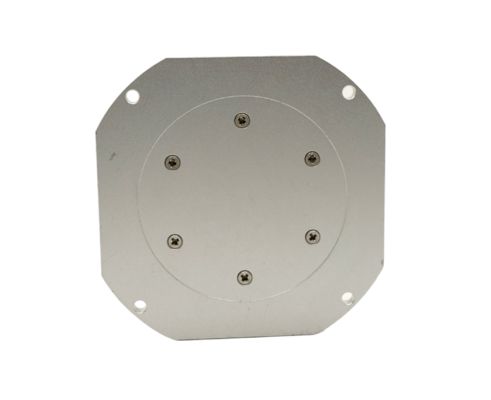

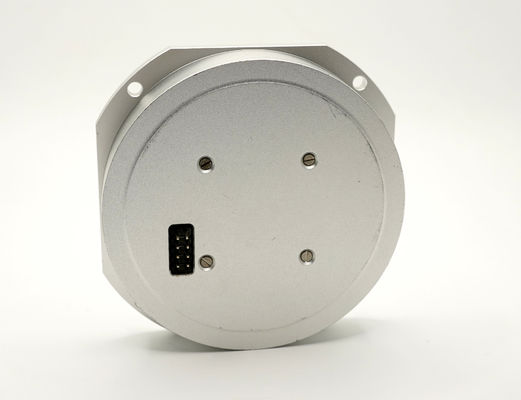

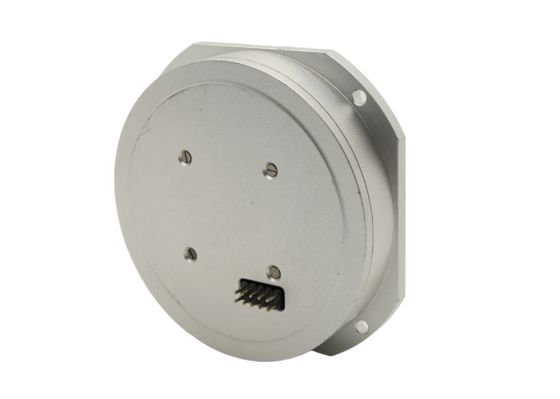

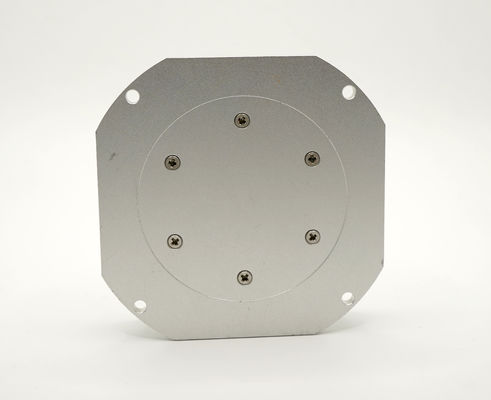

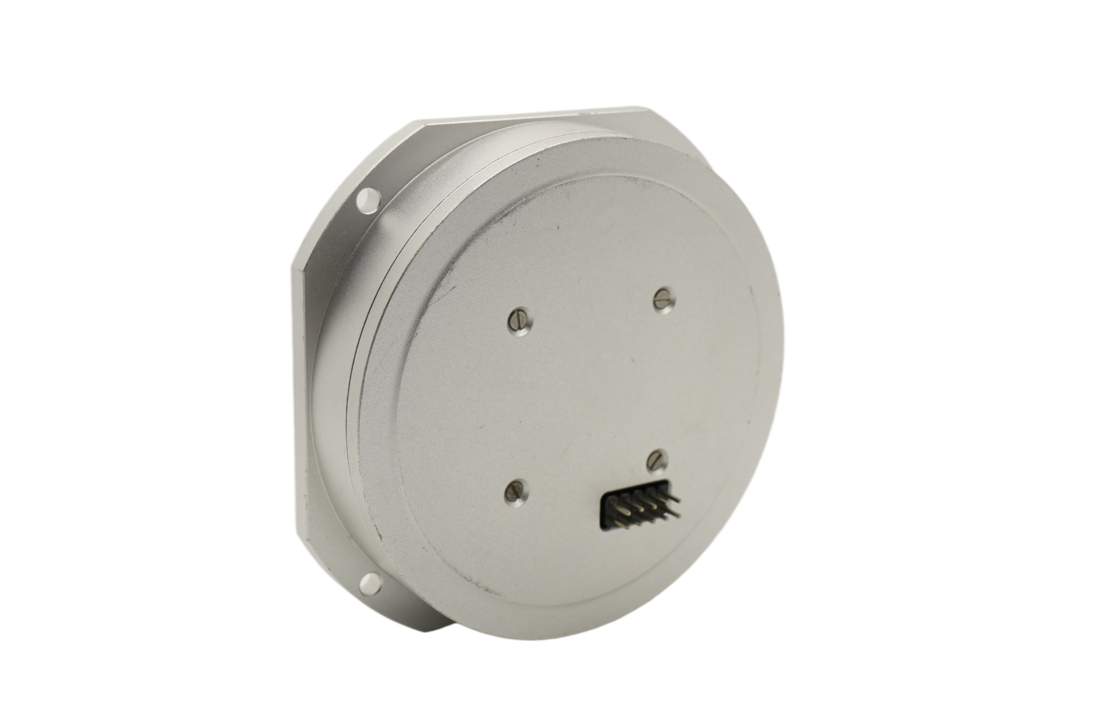

Fizoptika Vg910 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor

Fizoptika Vg910 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor

Fizoptika Vg910 Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor

Brand Name: Firepower
Model Number: MFOG-910
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Range:
±240°/s
Zero-bias Stability( (10s, 1σ):
≤0.8°/h
Power Consumption:
≤1.5W
Angular Random Walk:
≤0.02°/h
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Highlight:

Fizoptika Vg1703 fiber optic gyroscope

,

silicon photonic gyro sensor

,

replacement fiber optic gyro

Product Description
Fizoptika Vg910Replacement Silicon Photonic Integrated Fiber Optic Gyroscope Sensor
Product Overview
The MFOG-91 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Utilizing the Sagnac effect, it incorporates various micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.
Key Specifications

Serial number

Project

Performance indicators

1

Range (°/s)

±240

2

Scale factor (mV/ o /s)

47±5

3

Scale factor nonlinearity (ppm)

≤1000

4

Zero-bias stability (10s, 1σ, o /H)

≤0.8

5

Zero-bias repeatability (1σ, o /H)

≤0.8

6

3dB Bandwidth (Hz)

≥1000

7

Random walk ( o /√ H)

≤0.02

8

Power supply (V)

5+0.25

+12

9

Power Consumption (W)

≤1.5

10

Impact (g)

≥1500

11

Acceleration (g)

≥70

12

Life (years) (calculated assessment)

≥15

13

MTBF (Calculated Assessment)

≥100000
Key Features
  • Simple structure with no moving or wear parts
  • Fast startup and compact design (φ40×20mm)
  • Lightweight construction for versatile applications
  • Ideal for attitude control and carrier measurement systems
Technical Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Fiber ring skeleton and structural housing
