VG1703 Fiber Optic Gyroscope ±300°/s Range ≤0.5°/h Stability

Name: VG1703 Fiber Optic Gyroscope ±300°/s Range ≤0.5°/h Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	1350$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±300(°/s

Zero-bias Stability( (10s, 1σ):

≤0.5°/h

Angular Random Walk:

≤0.02°/h

3dB Bandwidth:

≥300Hz

Zero-bias Repeatability( (1σ):

≤0.5°/h

Scale Factor Nonlinearity:

≤500ppm

Dimension:

φ40X20mm

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

fiber optic gyroscope 300°/s range

fiber optic gyro 0.5°/h stability

high stability fiber optic gyroscope

Product Description

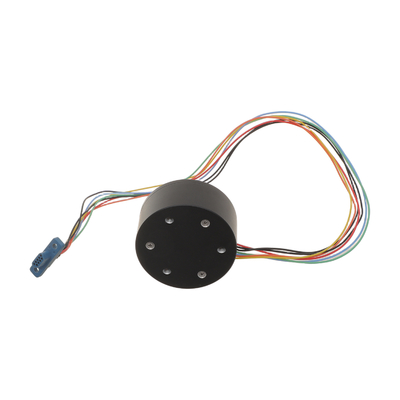

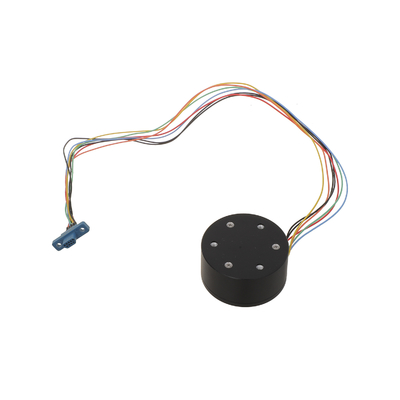

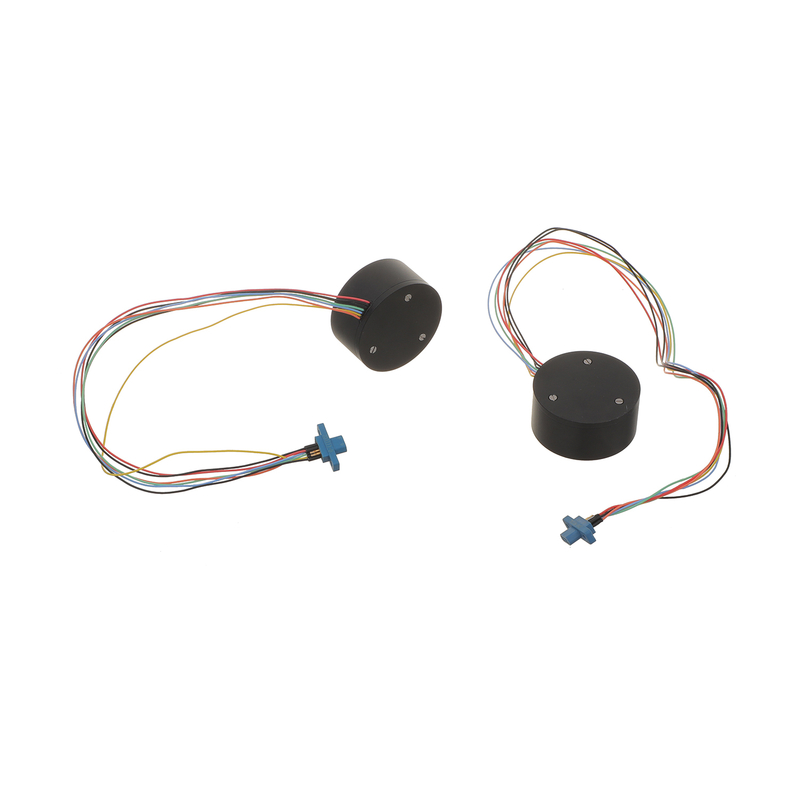

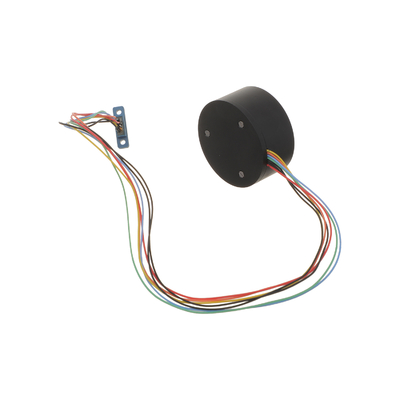

VG1703 Fiber Optic Gyroscope

Product Overview

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor integrating optical, mechanical, and electronic technologies. Utilizing the Sagnac effect with micro-nano fiber devices, it delivers high-precision measurement by detecting phase differences between counter-propagating light beams, processed through sophisticated electronics for precise control and measurement applications.

Key Features

Simple structure with no moving or wear parts
Fast startup capability with compact dimensions (φ40×20mm)
Lightweight construction for versatile platform integration
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Power Requirements

Parameter	Specification
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

Electrical Interface

Node number	Color	Definition
1	Tangerine	RS422 R-
2	Blue	RS422 R+
3	Green	RS422 T+
4	Yellow	RS422 T-
5	Black	GND
6	Black	GND
7	Red	5V

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H1/2)	≤0.02
Zero-bias stability at full temperature (°/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5±0.15
Power Consumption (W)	≤1.5

Product Diagrams

VG1703 Fiber Optic Gyroscope technical diagram

VG1703 Fiber Optic Gyroscope dimensional drawing
