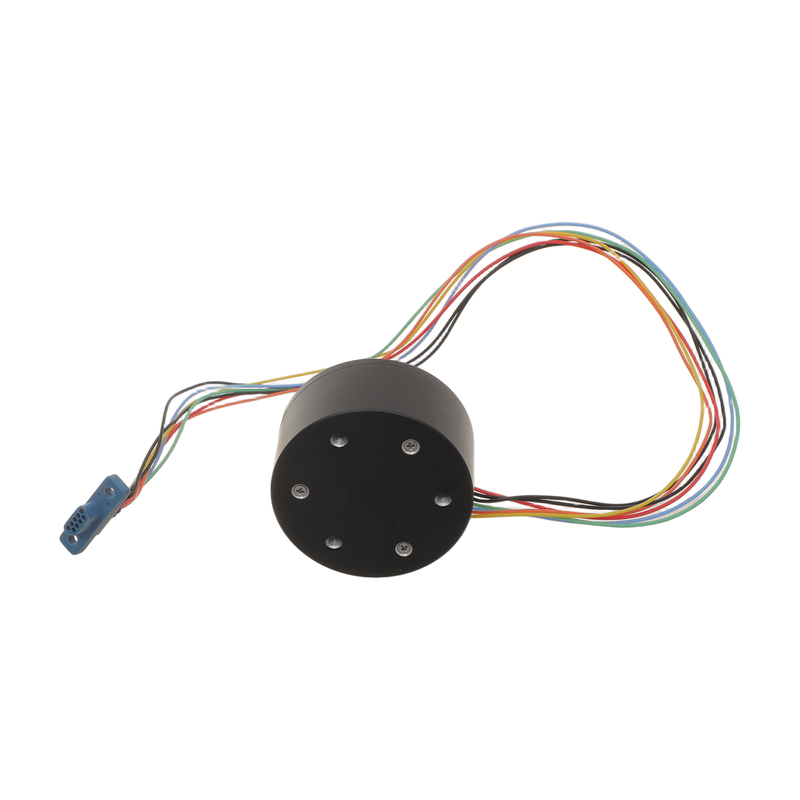

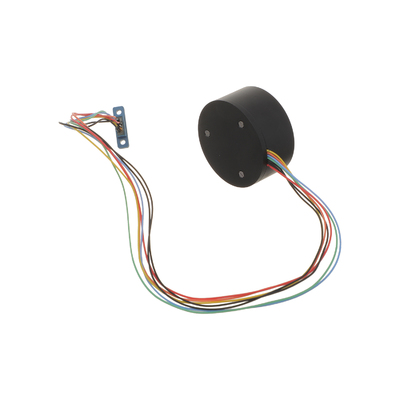

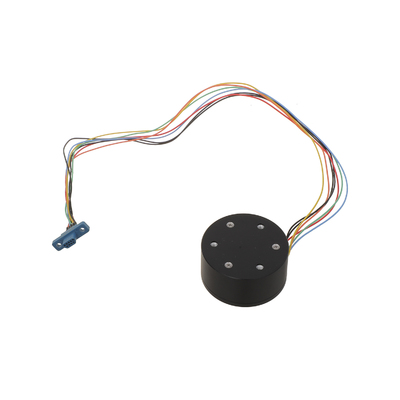

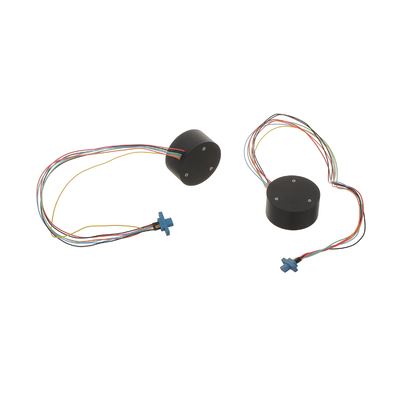

Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range

Name: Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	1350$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±300°/s

Zero-bias Stability( (10s, 1σ):

≤2°/h

Angular Random Walk:

≤0.04°/h

3dB Bandwidth:

≥300Hz

Zero-bias Repeatability( (1σ):

≤2°/h

Scale Factor Nonlinearity:

≤500ppm

Dimension:

φ40X20mm

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

Single Axis Fiber Optic Gyroscope

Fiber Optic Gyro 300°/s Range

MFOG40 Fiber Optic Gyroscope

Product Description

Single Axis Fiber Optic Gyroscope MFOG40 ±300°/s Range

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that seamlessly integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement.

This gyroscope detects angular velocity by monitoring the phase difference generated between two light beams propagating in opposite directions, processing this information through sophisticated electronics, and providing precise feedback for control or measurement purposes.

Product Highlights

Simple structure with no moving or wear parts
Fast startup and compact design (φ40*20mm)
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Power Requirements

Parameter	Specification
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

Electrical Interface

Node number	Color	Definition
1	Tangerine	RS422 R-
2	Blue	RS422 R+
3	Green	RS422 T+
4	Yellow	RS422 T-
5	Black	GND
6	Black	GND
7	Red	5V

Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor	7mv/o/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤2
5	Zero-bias repeatability (1σ, °/h)	≤2
6	Angular random walk (°/h 1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	3dB Band Width (Hz)	≥450
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24X39
