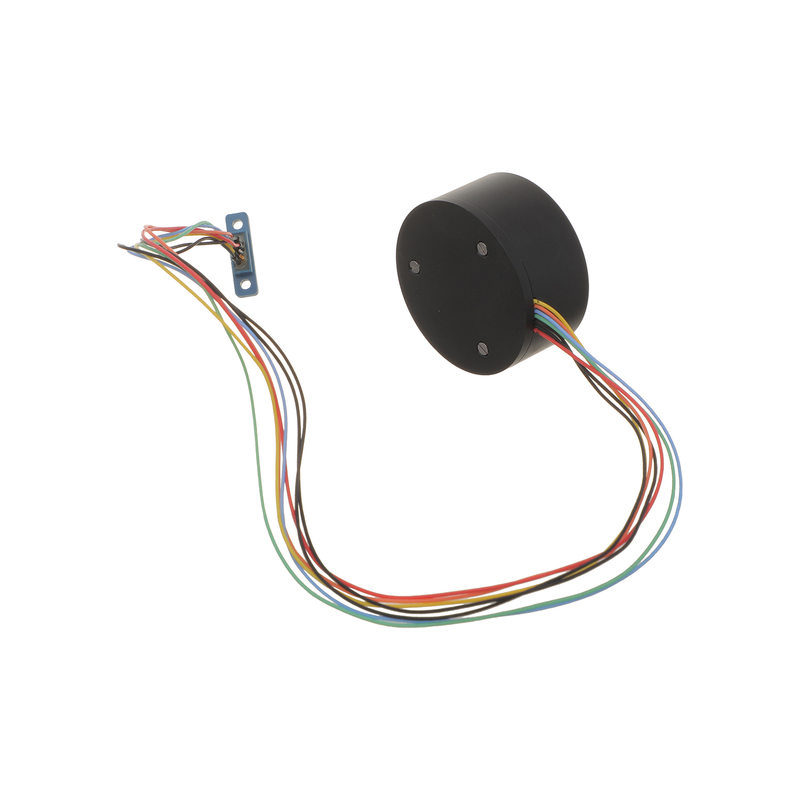

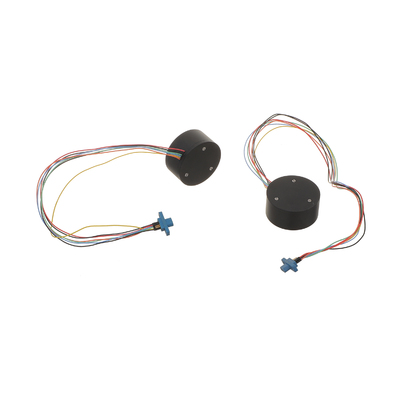

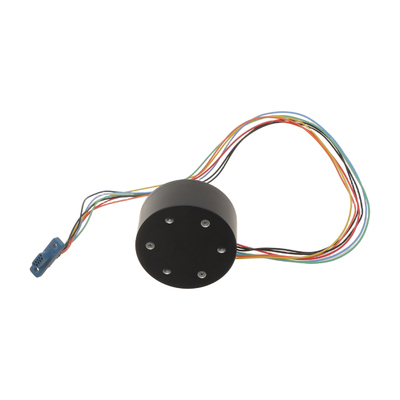

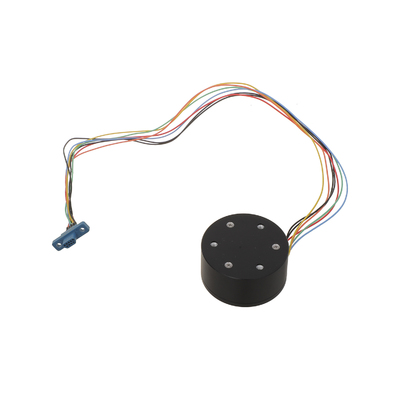

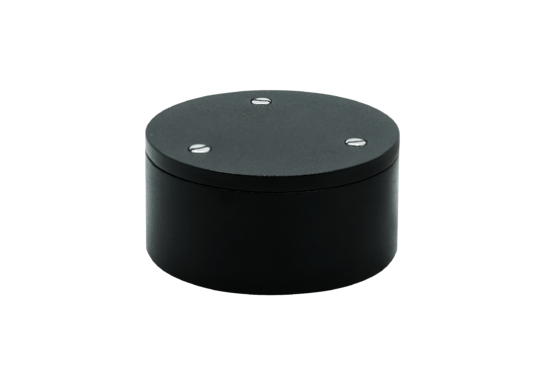

MFOG-40 Chinese Factory Supply Fiber Gyro Sensor Low Bias

Name: MFOG-40 Chinese Factory Supply Fiber Gyro Sensor Low Bias
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	1350$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±300(°/s

Zero-bias Stability( (10s, 1σ):

≤0.5°/h

Angular Random Walk:

≤0.02°/h

3dB Bandwidth:

≥300Hz

Zero-bias Repeatability( (1σ):

≤0.5°/h

Scale Factor Nonlinearity:

≤500ppm

Dimension:

φ40X20mm

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Product Description

MFOG-40 Chinese Factory Supply Fiber Gyro Sensor Low Bias

Key Features

Simple structure with no moving or wear parts
Fast startup and compact design (φ40*20mm)
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Product Overview

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that seamlessly integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it utilizes cutting-edge micro-nano fiber devices to achieve high-precision measurement. The gyroscope detects angular velocity by monitoring the phase difference generated between two light beams propagating in opposite directions, processing this information through sophisticated electronics, and providing precise feedback for control or measurement purposes.

This product is designed with simplicity and reliability in mind. It features a compact and lightweight structure, with no moving parts or components subject to wear, ensuring long-term stability and durability. Its fast start-up capability, combined with its small size and low weight, makes it highly suitable for applications in attitude control, navigation, and motion measurement of various carriers, including aerial, marine, and ground platforms.

Power Requirements

Parameter	Specification
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

Electrical Interface

Node number	Color	Definition
1	Tangerine	RS422 R-
2	Blue	RS422 R+
3	Green	RS422 T+
4	Yellow	RS422 T-
5	Black	GND
6	Black	GND
7	Red	5V

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H1/2)	≤0.02
Zero-bias stability at full temperature (°/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5±0.15
Power Consumption (W)	≤1.5

Product Diagrams

Fizoptika VG1703 Fiber Optic Gyroscope technical diagram

Fizoptika VG1703 Fiber Optic Gyroscope dimensional drawing
