Medium Accuracy Fiber Optic Gyro Sensor 0.8°/h Bias Stability for AGV & Servo Tracking Fizoptika VG1703 Replacement

Name: Medium Accuracy Fiber Optic Gyro Sensor 0.8°/h Bias Stability for AGV & Servo Tracking Fizoptika VG1703 Replacement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±300°/s

Bias Stability:

≤0.8°/h

Zero Bias Repatability:

≤0.8°/h

Random Walk Cefficient:

≤0.02°/√h

Supply Voltage:

+5V

Output Type:

Analog

Band Width:

≥300Hz

Dimension:

40mm × 20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

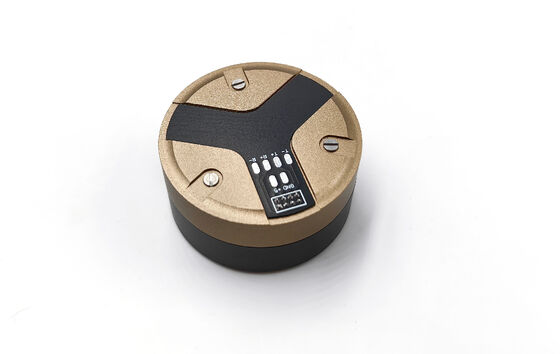

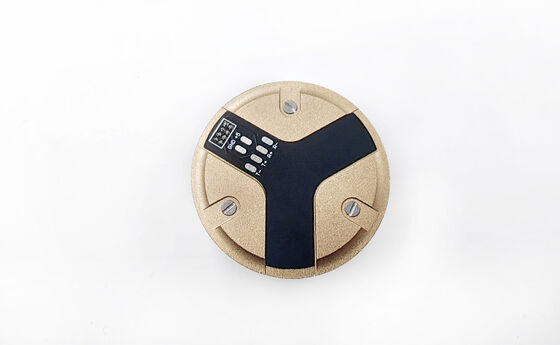

The MFOG-40 Micro-Nano Fiber Optic Gyroscope (FOG) is a high-performance angular rate sensor based on the Sagnac effect, integrating advanced optical, mechanical, and electronic technologies.

Designed with no moving parts, this gyroscope ensures exceptional reliability, long service life, and maintenance-free operation, making it ideal for demanding industrial and defense-grade applications.

With its compact size (φ40×20mm), lightweight structure (≤40g), and low power consumption, the MFOG-40 is perfectly suited for embedded systems requiring high-precision attitude measurement and motion control.

⚙️ Key Features

✅ High Precision Performance
Zero-bias stability ≤0.8°/h (10s, 1σ)
✅ Low Noise Output
Angular Random Walk ≤0.02°/√h
✅ Compact & Lightweight Design
Only φ40×20mm, ≤40g
✅ No Moving Parts
उच्च reliability, no wear, long lifespan
✅ Wide Temperature Range
Operating from -40°C to +70°C
✅ Fast Start-Up
Immediate response for real-time applications
✅ High Bandwidth
≥300Hz for dynamic motion tracking
✅ Strong Environmental Resistance
Withstands vibration up to 20g (20–2000Hz)
