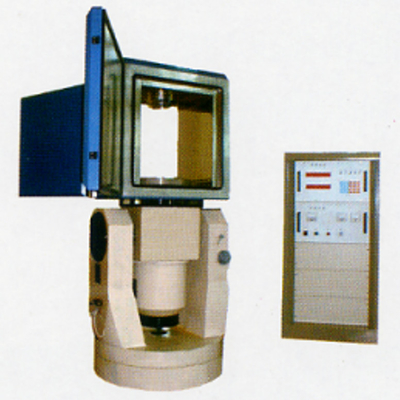

| Product Name | 2 Axis Turntable |
|---|---|
| Load Capacity | 20kg |
| Diameter | Ø400mm |
| Table Facet Flatness | 0.01mm |
| Flux Leakage | <4 Gauss |
| Product Name | Positioning Turntable |
|---|---|
| Wobble Error | ±1.5'' |
| Axes Perpendicularity | ±1'' |
| Table Facet Diameter | Ø250mm |
| Table Facet Flatness | 0.01mm |
| Load Capacity | 20kg |
|---|---|

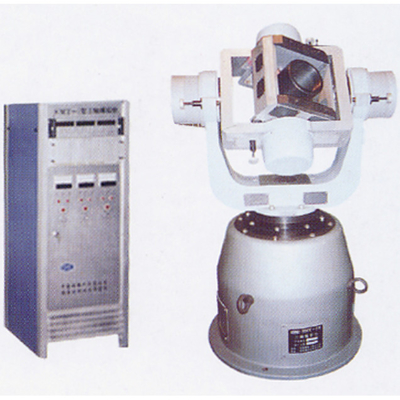

| Payload Size | Ø320 X 250mm |
| Table Facet Diameter | Ø320mm |
| Table Facet Flatness | 0.01mm |
| Table Facet Material | Stainless Steel |
| Load Capacity | 20kg |
|---|---|
| Max Measured Object Size | 220mm X 220mm X 280mm |
| Wobble | Inner/outer Frame: ±4’’ Mid Frame: ±6’’ |
| Perpendicularity | Mid-inner Frame ±5’’ Mid-outer Ring ±5’’ |
| Table Body Weight | About 800kg |

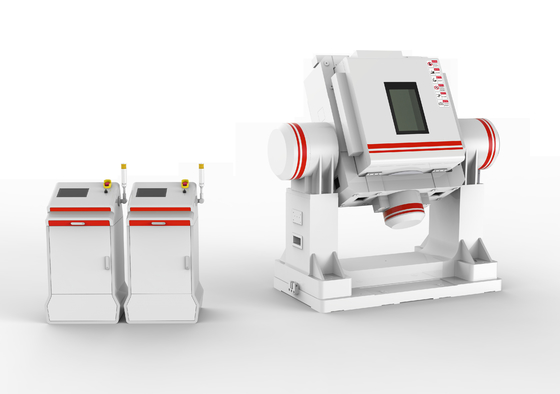

| Product Name | Rate Position Motion Simulator |
|---|---|
| Load Capacity | 20kg |
| Table Facet Size | 400mm |
| Inclination Rotary Accuracy | ±3'' |
| Conductive Loop | 50 Loops |

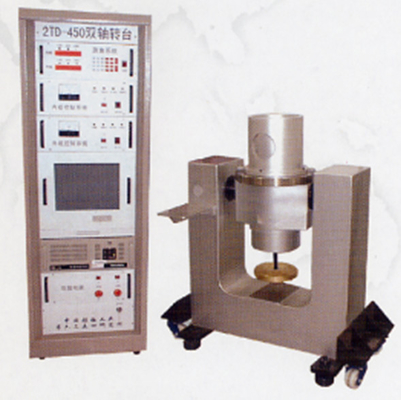

| Product Name | Dual Axis Power-driven Turntable |
|---|---|
| Load Capacity | 20kg |
| Table Facet Diameter | Ø360mm |
| Table Facet Flatness | 0.01mm |
| Wobble Error | Inner Loop: ±2’’ Outer Loop: ±3’’ |
| Product Name | Motion Simulator |
|---|---|
| Table Top Material | Stainless Steel |
| Flatness Of Table | 0.02 Mm |
| Rotation Accuracy | ± 2'' |
| Table Facet Flatness | 0.01mm |

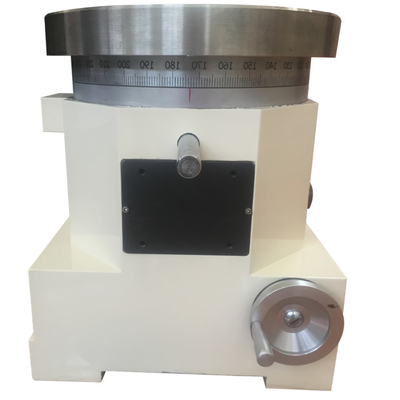

| Product Name | 1 Axis Turntable |
|---|---|
| Load Capacity | 20kg |
| Table Facet Size | Ø400mm |
| Table Facet Flatness | 0.01mm |
| Inclination Rotary Accuracy | ±3’’ |
| Product Name | Single Axis Rate Position Turntable |
|---|---|
| Function | Rate, Position |
| Max Payload | 30kg |
| Table Top Dimension | Ø320 X 250mm |
| Table Top Flatness | <0.01mm |

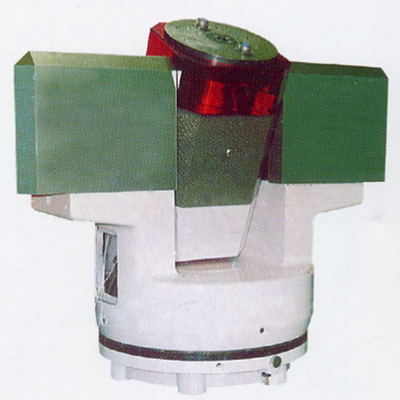

| Product Name | Motion Simulating Turntable |
|---|---|
| Table Top Material | Stainless Steel |
| Flatness Of Table | 0.02 Mm |
| Rotation Accuracy | ± 2'' |
| Table Facet Flatness | 0.01mm |
