Miniature Fiber Optic Gyroscope Angular Rate Sensor

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Angular Random Walk:

≤0.02°/h

Measurement Range:

± ±150°/s

Zero Bias Repeatability:

≤ 2º/h

Response Time:

≤ 1s

Initialization Time:

<5S

Scale Factor:

≥10mV/ ° /s

Nonlinearity:

≤ 0.1%

Power:

≤0.7W

Output Voltage:

Baud Rate:

921600(Customizable)bps

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Temperature Chamber 2 Axis Turntable

2 Axis Turntable Precise

2 Axis Turntable 20kg Load

Product Description

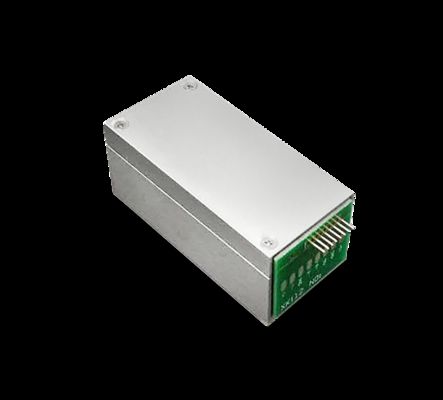

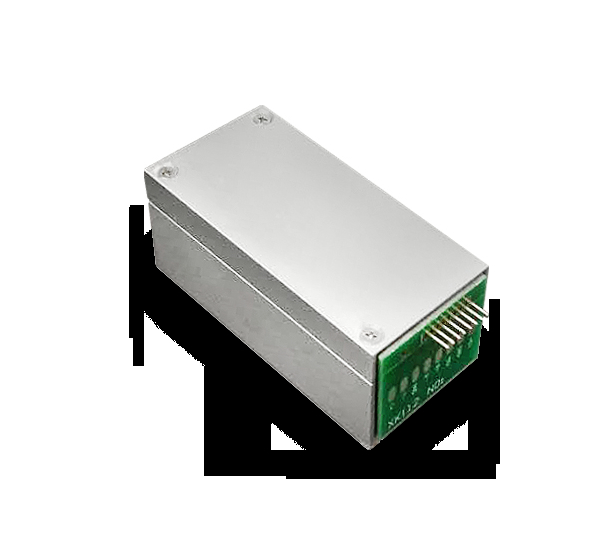

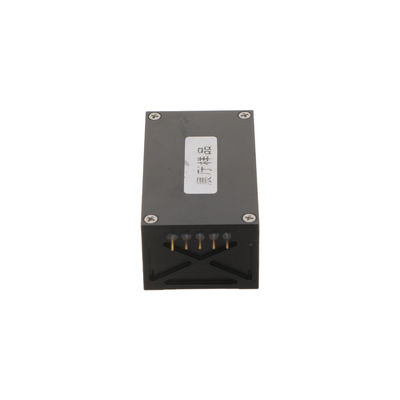

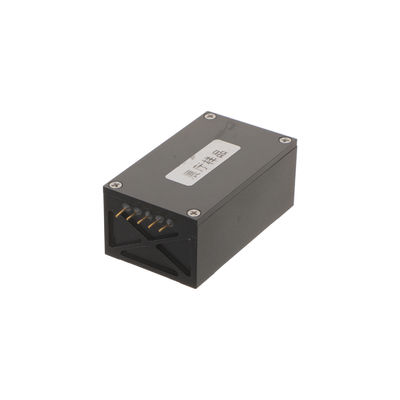

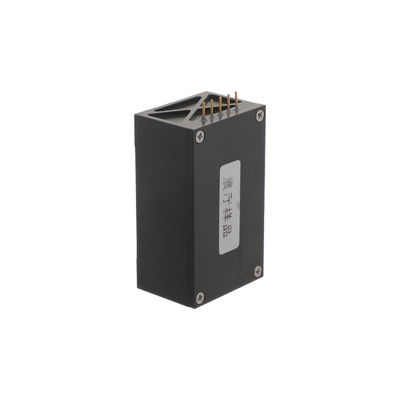

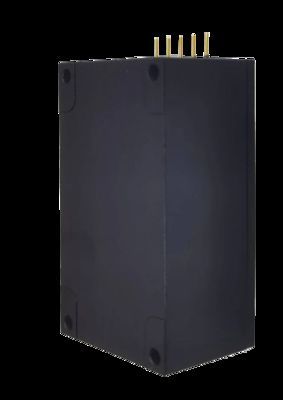

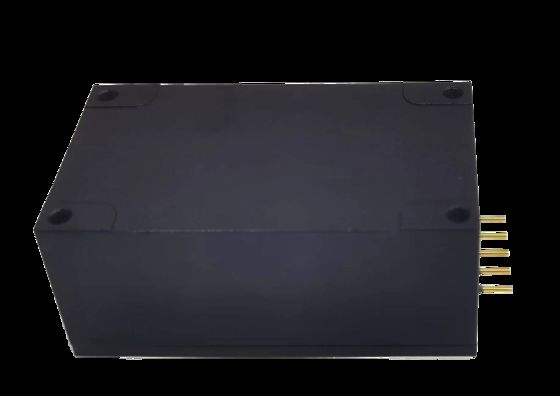

Miniature Fiber Optic Gyroscope Angular Rate Sensor

The Fizoptika VG095 Micro-Nano Fiber Optic Gyroscope is a high-performance angular rate sensor with exceptional environmental adaptability. This integrated system combines optics, mechanics, and electronics while utilizing the Sagnac effect. The unit includes optical path assembly, detection & control board, and structural components (coil skeleton, shell).

Key Features

Compact design with weight ≤70g
Wide operating temperature range: -40℃ to +70℃
Storage temperature range: -55℃ to +85℃
Vibration resistant (20g, 20Hz-2000Hz)
No moving parts for enhanced reliability
Fast startup time (≤1 second)
Ideal for carrier attitude measurement applications

Technical Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	≥10
3	Zero-bias stability (10s, 1σ, °/H)	≤2
4	Zero-bias repeatability (1σ, °/H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7
