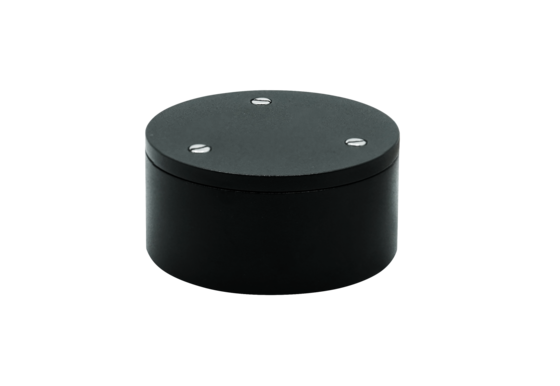

UAV navigation fiber optic gyroscope Fizoptika Vg1703 Replacement with No Moving Parts

Name: UAV navigation fiber optic gyroscope Fizoptika Vg1703 Replacement with No Moving Parts
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	1350$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±300(°/s

Zero-bias Stability( (10s, 1σ):

≤0.5°/h

Angular Random Walk:

≤0.02°/h

3dB Bandwidth:

≥300Hz

Zero-bias Repeatability( (1σ):

≤0.5°/h

Scale Factor Nonlinearity:

≤500ppm

Dimension:

φ40X20mm

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Product Description

UAV Navigation Fiber Optic Gyroscope Fizoptika VG1703 Replacement

Product Overview

The MFOG-40 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Utilizing the Sagnac effect, it incorporates various micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Key Specifications

Attribute	Value
Range	±300°/s
Zero-bias stability (10s, 1σ)	≤0.5°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥300Hz
Zero-bias repeatability (1σ)	≤0.5°/h
Scale factor nonlinearity	≤500ppm
Dimension	φ40×20mm
Power Consumption	≤1.5W

Key Features

Simple structure with no moving or wear parts
Fast startup and compact design (φ40×20mm)
Lightweight construction for versatile applications
Ideal for attitude control and carrier measurement systems

Technical Components

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton and structural housing

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H1/2)	≤0.02
Zero-bias stability at full temperature (°/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5±0.15
Power Consumption (W)	≤1.5

Product Diagrams

Technical Diagram of Fizoptika VG1703 Fiber Optic Gyroscope

Dimensional Drawing of Fizoptika VG1703 Fiber Optic Gyroscope
