Micro-Nano Integrated Fiber Optic Gyro for Automated Driving

Brand Name:	Firepower
Model Number:	MFOG-103PT
MOQ:	1
Price:	1350USD
Payment Terms:	T/T,L/C
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

350°/s

Scale Factor:

6±0.6mV/°/s

3dB Bandwidth:

≥1000Hz

Power Supply:

5±0.25V

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

RS232 1 Axis Turntable

1 Axis Turntable 15kg

Vacuum Chamber Angular Motion Simulator

Product Description

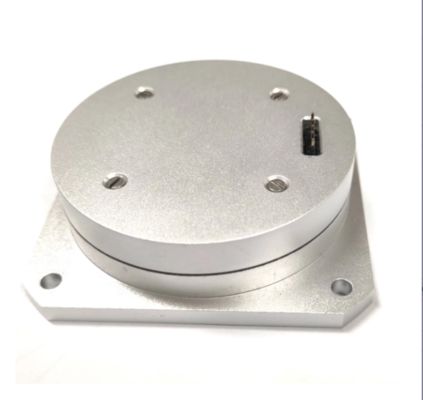

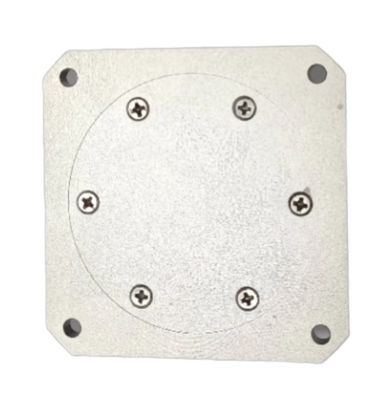

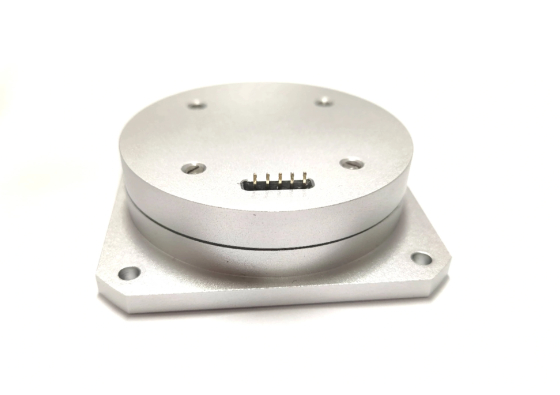

Micro-Nano Fiber Optic Gyro

Product Description

MFOG-103 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5±0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013.

The company is high-tech enterprise dedicated to R&D and production of vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products. The company has invested in and built multiple automated production lines in various locations such as Xi'an, Shenzhen, and Zhuhai. These production lines cover the manufacturing of MEMS gyro, MEMS inertial navigation systems, vibration acceleration sensors, communication products, and angle test equipment.

As an independent innovation-oriented high-tech enterprise, Firepower possesses China's leading production conditions for inertial navigation and communication products. The company always prioritizes scientific research and technological innovation, as well as self-reliance and control. It is committed to developing a series of autonomous navigation products with independent intellectual property rights, which are widely applied in the autonomous navigation perception fields of civilian vehicles and ships. With its self-developed array algorithm as the core technology, the company has developed a series of inertial navigation products that can provide users' carriers with key information such as current position, three-dimensional attitude, and speed, thereby achieving precise autonomous navigation control.

Company Advantage

Our Services

Packing & Shipping

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control throughout production: following technical requirements precisely, conducting full tests, and maintaining a professional QA/QC team.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services according to customer requirements.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms based on customer preference.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard warranty is 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge, while batch orders use wooden boxes.

Q: What is final price?

A: Standard products follow listed prices; customized products require quotation based on specifications and quantity.

Q: How to choose product?

A: We offer standard products or customized solutions. Customers can select from our catalog, specify technical requirements, or consult our sales team for application-specific recommendations.
