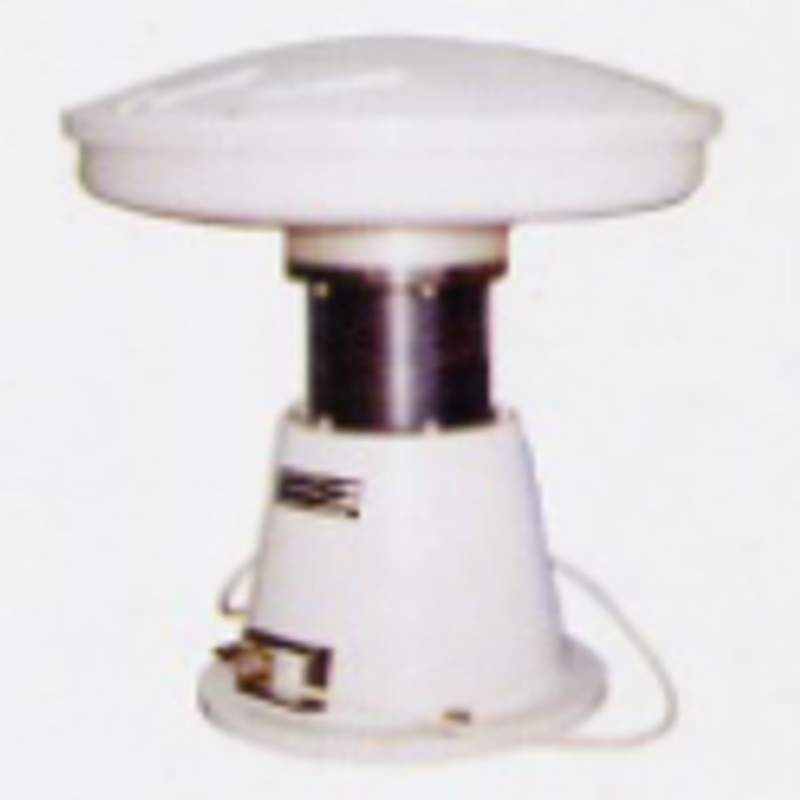

Single axis turntable high performance 1 axis motion simulator
Single axis turntable with vacuum chamber has functions: automatic angular position, automatic angular rate and automatic angular sway. Combined structure facilitates the installation of vacuum chamber. Control cabinet is equipped with standard RS-232 serial port, and state control and data acquisition could be proceeded automatically.
Load capacity | 15kg |
Measured object volume | 200 x 200 x 200mm |
Table facet size | Ø300mm |
Table facet flatness | 0.01mm |
Table facet jerk value | 0.01mm |
Rotation angle range | Continuous infinite |
Working mode | Position, rate |
wobble error | ±3’’ |
Angular position measure resolution | 0.36’’ |
Angular position measure accuracy | ±3’’ |
Angular position measure repeatability | ±2’’ |
Angular position control accuracy | ±5’’ |
rate range | 0.001°/s~400°/s |
rate accuracy | 5x10-3(by international military standard) |
rate stability | 5x10-3(by international military standard) |
Computer interface | RS-232 |
Operation method | Computer remote control and control cabinet panel keyboard control |
Requirements of vacuum chamber | Reach 10-3 torr, vacuum degree adjustable when rotating |
Slip rings | 10 rings x 2A |
