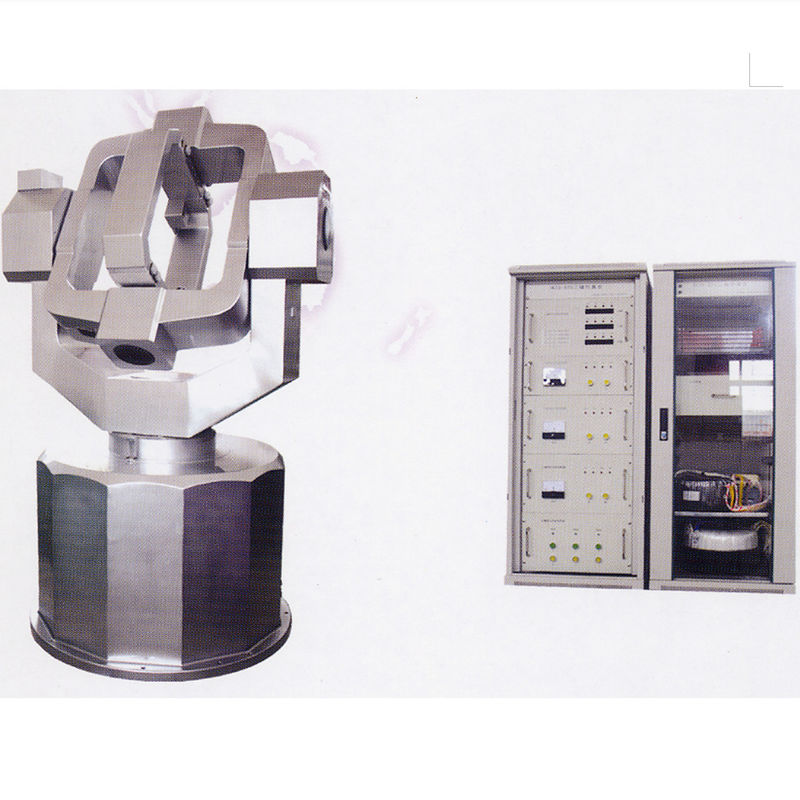

70kg Three Axis Turntable With Thermal Chamber 2'' Three Axis Motion Simulator

1
MOQ
70kg Three Axis Turntable With Thermal Chamber 2'' Three Axis Motion Simulator
Features Gallery Product Description Request A Quote
Features
Specifications
System Name: 3 Axis Turntable
Load Capacity: 70kg
Object Size: 760mm X 760mm X 760mm
Wobble Error: ±2''
Axis Perpendicularity: ±2''
Conductive Slip Rings: 80 Rings/3A
High Light:

70kg Three Axis Turntable

,

70kg Three Axis Motion Simulator

,

2'' Three Axis Motion Simulator

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 3T70
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

3 axis turntable with thermal chamber three axis motion simulator with temperature chamber price



The system is mainly used to test and calibration of inertial device and system, also it could do kinds of simulation test, it belongs to the relative big category of electric-driven three free axis turntable. The working mode could be electric control cabinet manual control and upper computer remote control. It provide dynamic linkbase, user could set the simulation program by himself. And it provide high speed USB communication interface connection.



Load capacity 70kg
Max measured object size 760mm x 760mm x 760mm
Wobble error ±2’’
Axis perpendicularity ±2’’
Outer frame north leading device rectangular prism
Three axis intersection point radius <0.25mm
Conductive slip rings 80 rings/3A



Angular position measure accuracy ±3.6’’
Angular position measure resolution 0.36’’
rate range

Outer ring: 0.01°/s~100°/s

Mid ring: 0.01°/s~30°/s

Inner ring: 0.01°/s~30°/s

rate accuracy and stability



5x10-5(360° average)

3x10-4(10° average)

1x10-3(1° average)

Max angle acceleration 300°/s2
Control system bandwidth 10Hz
