Low Noise MEMS Inertial Motion Sensor with Stable Performance

Name: Low Noise MEMS Inertial Motion Sensor with Stable Performance
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: M6-30
Price: 900 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	M6-30
MOQ:	1
Price:	900 usd
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Gyro Measuring Range:

±1000bps

Accelerometer Measuring Range:

±8g

Power Supply:

1.71V~3.6V

Power Consumption:

≤3.3mW

Operating Temperature:

-45~+85℃

Storage Temperature:

-45~+125℃

Packaging Details:

sponge+box

Supply Ability:

100/MONTH

Highlight:

INS500 Ins Navigation System

Fiber Ins Navigation System

Ins Navigation System Closed Loop

Product Description

Product Description

6-axis MEMS Inertial Sensor

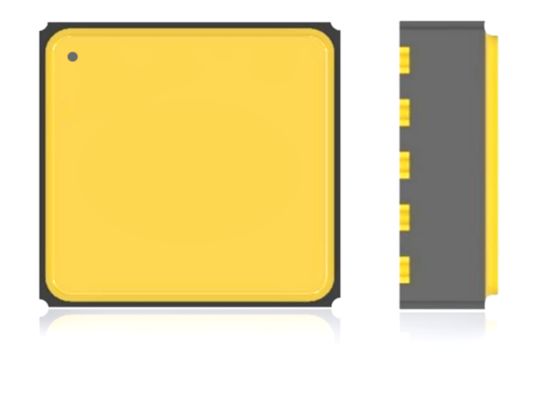

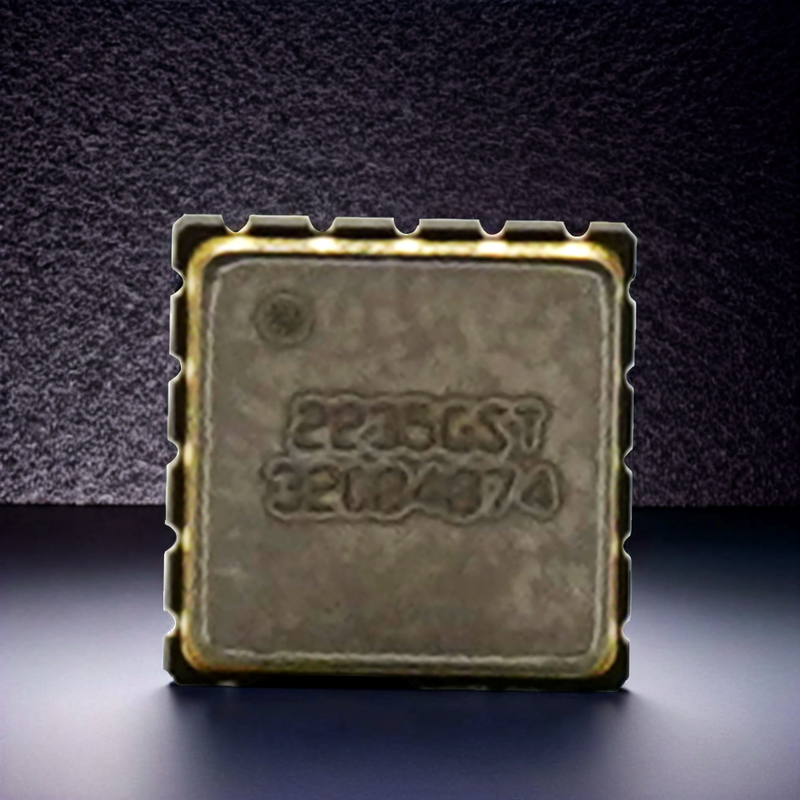

M6-30 is a 6-axis Motion-Tracking MEMS device consisting of a triaxial gyroscope, a triaxial accelerometer, hermetic sealed in a robust 7x7x2.42mm3 (20-pin CLCC) ceramic package.

Key Features:

1. Support for low power modes

2. Support for self-test includes a 16-bit on-chip ADC.

3. Programmable digital filter and embedded 16-bit temperature sensor

4. Supports low voltage mode down to 1.71 V

5. High speed 10 MHz SPI interface

Technical Specification

Parameter		Test conditions	Typical value	Unit
Gyro	Range	Optional	250~500	º/s
	Zero bias stability	Allan variance	5	º/h
	Zero bias	Zero bias range	±1	º/s
		Zero-bias variation over full temperature range1	±3	º/s
		Scale factor nonlinearity	0.2	%FS
	Bandwidth		100	Hz
Accelerometer	Range		4~16	g
	Zero bias stability	Allan variance	0.1	mg
	Zero bias	Zero bias range	±6	mg
		Zero bias change in full temperature range, peak-to-peak value1	±10	mg
		Scale factor nonlinearity	0.3	%FS
	Bandwidth		100	Hz

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, was established in 2013 and registered in Shenzhen, The company is high-tech enterprise dedicated to R&D and production of vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products. The company has invested in and built multiple automated production lines in various locations such as Xi'an, Shenzhen, and Zhuhai. These production lines cover the manufacturing of MEMS gyro, MEMS inertial navigation systems, vibration acceleration sensors, communication products, and angle test equipment.
As an independent innovation-oriented high-tech enterprise, Firepower possesses China's leading production conditions for inertial navigation and communication products. The company always prioritizes scientific research and technological innovation, as well as self-reliance and control. It is committed to developing a series of autonomous navigation products with independent intellectual property rights, which are widely applied in the autonomous navigation perception fields of civilian vehicles and ships. With its self-developed array algorithm as the core technology, the company has developed a series of inertial navigation products that can provide users' carriers with key information such as current position, three-dimensional attitude, and speed, thereby achieving precise autonomous navigation control.

FAQ

Q: What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time based on your order quantities.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.
Q: Do you accept OEM or ODM order?
A: Yes, we are professional manufacturer and we are capable for providing both OEM and ODM service by customer's needs.
Q: What are the terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.
Q: What is the payment way?
A: TT, L/C, Pay later, West Union, Online Bank Payment.
Q: What is warranty?
A: Standardly 12 months and negotiable for longer warranty.
Q: What is the packing quality?
A: For sample order, we use carton box with sponge, and batch order, we use wooden box.
Q: What is final price?
A: For standard product, price is as in the price table; For customized product, price by checking with sales, so as to different quantity needs.
Q: How to choose product?
A: We are professional manufacturer, we could provide standard product on shelf, or products by customer's specific requirements:
1) Choose from MadeinChnia platform or website;
2) Customer raise some certain different technical requirements based on standard products;
3) Customer provide specific and comprehensive technical requirements to sales to evaluate;
4) Customer explain application to sales to provide suitable products.
