Agricultural Machinery MEMS INS Inertial Navigation System with GNSS

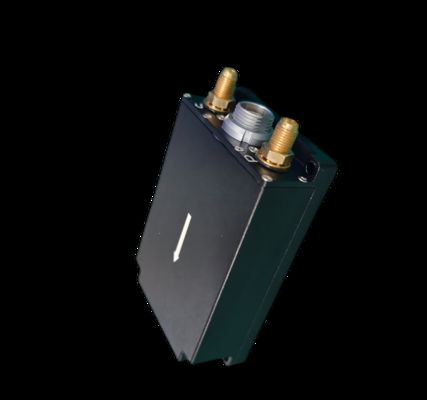

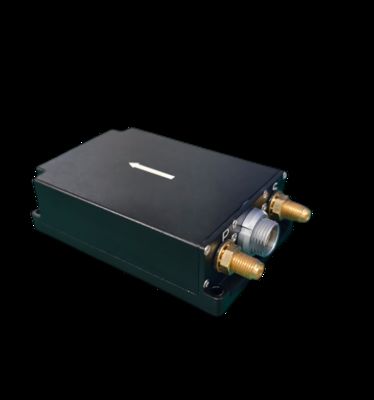

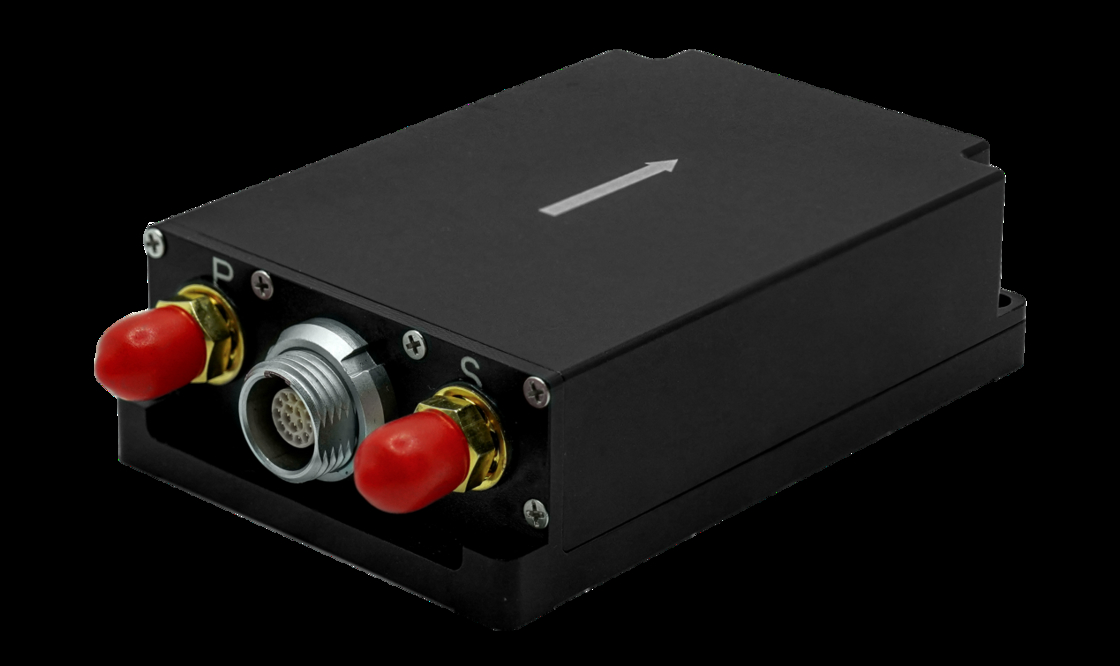

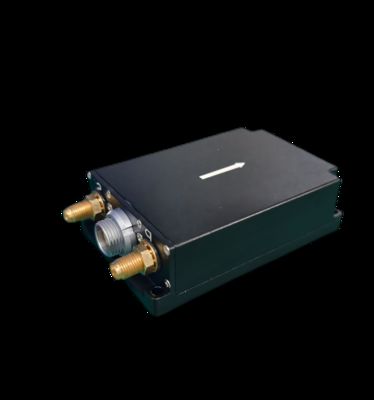

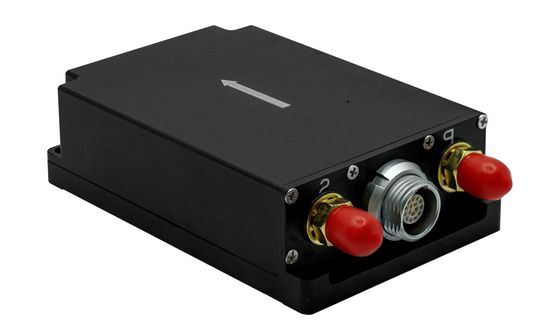

Name: Agricultural Machinery MEMS INS Inertial Navigation System with GNSS
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS100E
Price: 800 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS100E
MOQ:	1
Price:	800$
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Heading Accuracy:

0.1°

Attitude Accuracy:

0.1°

Positioning Accuracy:

1.5m；1cm+1ppm

Acc Range:

±16g

Acc Bias Stability:

0.2mg

Gyro Range:

±500°/s

Gyro Bias:

4°/h

Dimension:

80 Mm×53 Mm×23mm

Packaging Details:

Carton

Supply Ability:

1000pcs

Highlight:

70kg Three Axis Turntable

70kg Three Axis Motion Simulator

2'' Three Axis Motion Simulator

Product Description

Agricultural Machinery Inertial Navigation System with GNSS

Performance Specifications

Project	Metrics (RMS)	Remark
Heading accuracy	0.1°	GNSS valid
Heading holding	0.2°/min	GNSS failure
Attitude accuracy	0.1°	GNSS is valid (Single-point L1/L2, RTK)
Attitude holding	0.2°/min	GNSS failure
Positioning accuracy (Horizontal)	1.5m; 1cm+1ppm	GNSS valid; RTK (Single point L1/L2; Differential)
Positioning accuracy (Elevation)	2.5m; 2cm+1ppm	GNSS valid; RTK (Single point L1/L2; Differential)
Position holding	20m	GNSS failure (Unlocked for 60s)
Horizontal velocity accuracy	0.1m/s	GNSS is valid (Single-point L1/L2, RTK)
Gyroscope measuring range	±500°/s
Gyroscope zero bias stability	4°/h	Allan variance
Accelerometer measuring range	±16g	Customizable 200 g
Accelerometer zero bias stability	0.2mg	Allan variance
Satellite board cold start	< 30 seconds	Open environment
Satellite board hot start	5 seconds	Open environment

Technical Specifications

Feature	Specification
Type of receiver	BDS B1I/B2I/B3I GPS L1C/A/L2P (Y)/L2C/L5 GLONASS G1/G2 Galileo E1/E5a/E5b QZSS L1/L2/L5
Communication interface (RS232)	Route 2
Communication interface (RS422)	Route 1
Voltage	9~36VDC
Power consumption	≤3W
Ripple	100 mV P-P
Size	80 mm53 mm23mm
Weight	≤150g
Operating temperature	-40℃~+60℃
Storage temperature	-45℃~+65℃
Vibration	20~2000Hz, 6.06g
Impact	30g, 11ms
Degree of protection	IP65
MTBF	30000h
Life span	> 15 years
Continuous working time	>24h

Note: Effective 2m baseline of dual antenna, or dynamic alignment of single antenna

Product Overview

The INS100E integrated navigation system features built-in high-performance MEMS gyroscope and accelerometer, capable of receiving internal GNSS data. It implements multi-sensor fusion and integrated navigation solution algorithms, with short-term inertial navigation capability during GNSS failure.

This product offers high reliability and strong environmental adaptability. With customizable software, it's suitable for various applications including industrial unmanned motion carriers, unmanned vehicles, unmanned ships, communication in motion, mapping, and stable platforms.

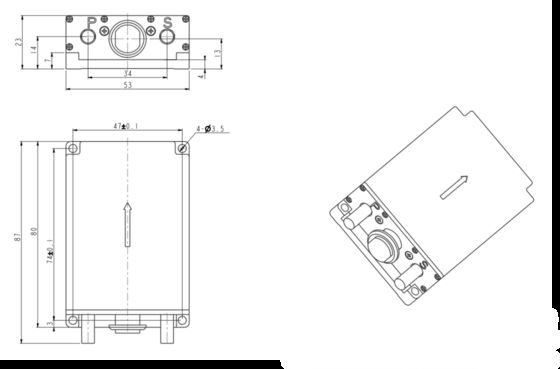

Overall Dimensions
