Micro-Nano Sensor with Medium Accuracy

Micro-Nano Sensor with Medium Accuracy

Brand Name:	Firepower
Model Number:	1T320
MOQ:	1
Price:	1217
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

350°/s

Scale Factor:

6±0.6mV/°/s

Zero Bias Stability:

≤1°/H, 10s, 1σ

Zero Bias Repeatability:

≤1°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

Vertical 1 Axis Turntable

Accelerometer 1 Axis Turntable

IMU 1 Axis Turntable

Product Description

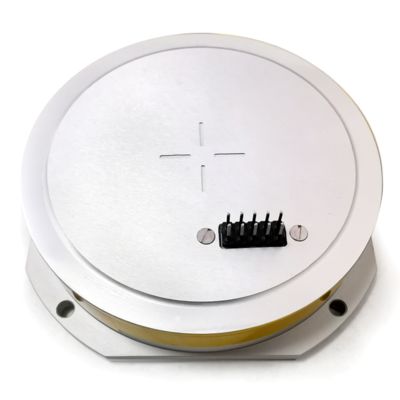

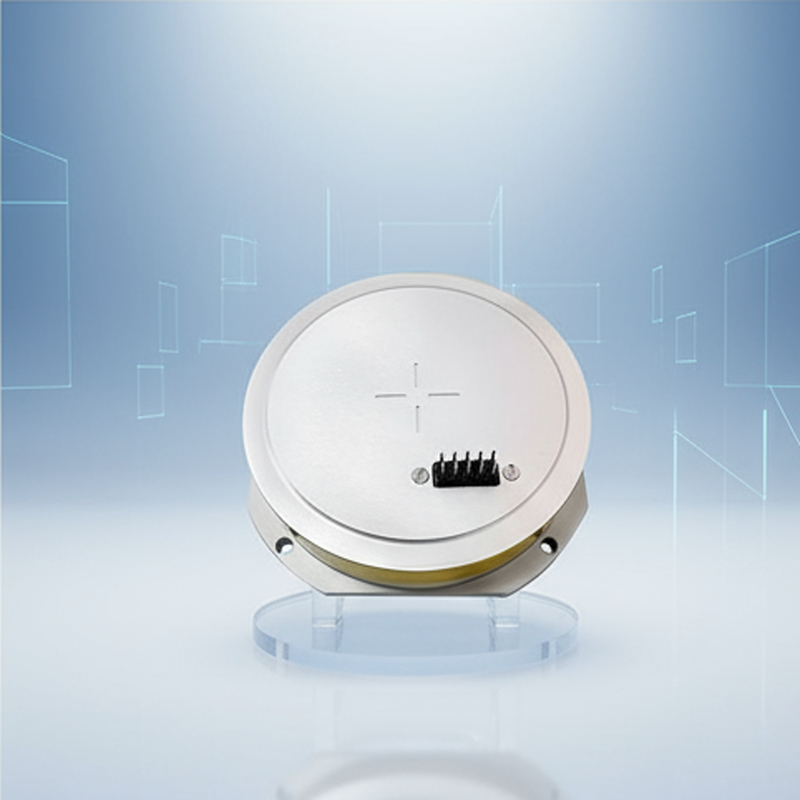

Micro-Nano Fiber Optic Gyro

Product Description

MFOG-103 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Key Features

Simple structure with no moving or wear parts
Fast start-up capability
Compact size and lightweight design
Ideal for attitude control and carrier measurement applications

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton, shell, and other structural components

Technical Parameters

Project	Performance indicators
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years)	≥15
MTBF	≥100000

Company Profile

Firepower Control Technology Co., Ltd, established in 2013 and headquartered in Shenzhen.

The company is high-tech enterprise dedicated to R&D and production of vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products. The company has invested in and built multiple automated production lines in various locations such as Xi'an, Shenzhen, and Zhuhai. These production lines cover the manufacturing of MEMS gyro, MEMS inertial navigation systems, vibration acceleration sensors, communication products, and angle test equipment.

As an independent innovation-oriented high-tech enterprise, Firepower possesses China's leading production conditions for inertial navigation and communication products. The company always prioritizes scientific research and technological innovation, as well as self-reliance and control. It is committed to developing a series of autonomous navigation products with independent intellectual property rights, which are widely applied in the autonomous navigation perception fields of civilian vehicles and ships. With its self-developed array algorithm as the core technology, the company has developed a series of inertial navigation products that can provide users' carriers with key information such as current position, three-dimensional attitude, and speed, thereby achieving precise autonomous navigation control.

Company Advantage

Our Services

Package & Shipping

FAQ

What is your lead time?

Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on your order quantities.

How does your factory do regarding quality control?

Quality is our priority. We implement strict quality control measures:

Production according to agreed technical requirements
Comprehensive testing per methodology
Professional QA/QC team oversight

Do you accept OEM or ODM order?

Yes, we offer both OEM and ODM services tailored to customer needs.

What are the terms of delivery?

We accept EXW, FOB, CIF, and other terms for your convenience.

What is the payment method?

TT, L/C, Pay later, West Union, Online Bank Payment.

What is warranty?

Standard 12 months warranty, negotiable for longer periods.

What is the packing quality?

Sample orders: carton box with sponge. Batch orders: wooden box.

How to choose product?

We offer multiple selection methods:

Choose from our standard product catalog
Modify technical requirements based on standard products
Provide comprehensive technical specifications for evaluation
Explain your application for suitable product recommendations
