Vertical 1 Axis Turntable With Chamber For Gyro Accelerometer IMU

1
MOQ
Vertical 1 Axis Turntable With Chamber For Gyro Accelerometer IMU
Features Gallery Product Description Request A Quote
Features
Specifications
System Name: Single Axis Motion Simulator
Functions: Position Rate Swing
Table Size: φ320mm
Table Material: Stainless Steel
Load Ability: 10~30kg
Flatness: 0.01mm~0.05mm
Highlight:

Vertical 1 Axis Turntable

,

Accelerometer 1 Axis Turntable

,

IMU 1 Axis Turntable

Basic Infomation
Place of Origin: China
Brand Name: Firepower
Model Number: 1T320
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

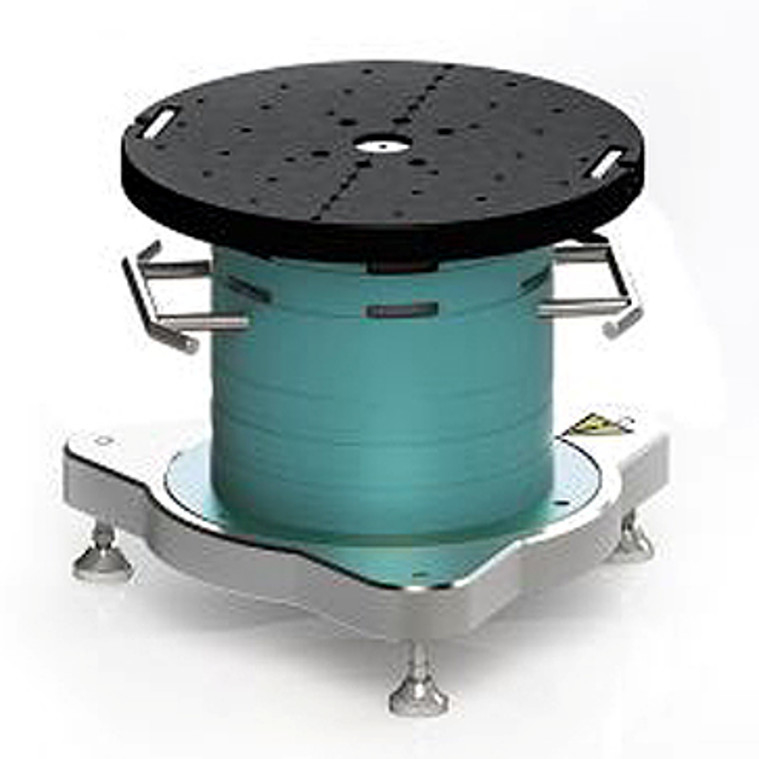

Single-Axis turntable with chamber





The single-axis turntable is divided into vertical and horizontal type according to the structure form. The vertical single-axis turntable can provide high-precision angular position and angular rate datum for gyro, accelerometer, IMU and magnetic sensor, so as to carry out precision calibration test and other purposes. The single spindle turntable should be equipped with a temperature box, which is an optional part. The single turntable with temperature box can be used for testing and calibration of gyro, accelerometer, IMU and other sensors in the full temperature range. Single axis rate position turntable with temperature chamber

The turntable owns precision rate and position functions.Control cabinet is equipped with standard RS232/RS4422 serial port, and state control and data acquisition could be proceeded automatically.



structural Vertical Horizontal type Vertical Vertical
Functions PositionRateSwing Position PositionRateSwing
Table Size φ320mm/φ450mm/φ500mm Customizable φ320mm/φ450mm/φ500mm Customizable φ320mm/φ450mm/φ500mm Customizable
Table Material Stainless steel/Aluminum alloy Aluminum alloy Stainless steel
Load Ability 10~30kg(Customizable)
Flatness 0.01mm~0.05mm 0.01mm~0.05mm 0.01mm~0.05mm
Jerk Value 0.02mm~0.08mm 0.02mm~0.08mm 0.02mm~0.08mm
Rotation Accuracy ±2″ ±2″ ±2″
Rate Resolution 0.001°/s ------ 0.001°/s
Rate Range 0.001°/s~1000°/s ------ 0.001°/s~1000°/s
Angular rate accuracy and smoothness 1×10-5(360°Average)1×10-4(10°Average)1×10-3(1°Average) ------ 1×10-5(360°Average)1×10-4(10°Average)1×10-3(1°Average)
Position Accuracy ±2″~±30″ ±3″~±30″ ±2″~±30″
Position repeatability ±1″~±15″ ±1″~±15″ ±1″~±15″
Position Resolution 0.36″ 1″ 0.36″
Angular position range Continuous rotate /Customizable
Angular acceleration 300°/s² Customizable ------ 300°/s² Customizable
Swing range 0°-±45° ------ 0°-±45°
Swing cycle 2s-20s ------ 2s-20s
User slip ring 60Rings Customizable Customizable 60Rings Customizable
Interface RS232/RS422/Ethernet RS232/RS422 RS232/RS422/Ethernet
With Temperature Chamer NO NO YES
Test Target Gyro,Accelerometer,Magnetic sensor,IMU Gyro Gyro,Magnetic sensor,IMU
