Integrated Photonic Chip Fiber Optic Gyroscope with Low Drift

Brand Name:	Firepower
Model Number:	MFOG910
MOQ:	1
Price:	700$
Payment Terms:	L/C,T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Repeatability:

≤0.8º/h

Bias Stability:

≤0.8°/h

Measurement Range:

±240°/s

Consumption:

≤1.5w

Vibration:

20~2000Hz

Storage Temperature:

-55~+85°C

Sensing Element:

Fiber Optic Coil

Scale Factor Nonlinear:

≤1000ppm

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Temperature Controlled 2 Axis Turntable

2 Axis Turntable High Accuracy

Calibration 2 Axis Turntable

Product Description

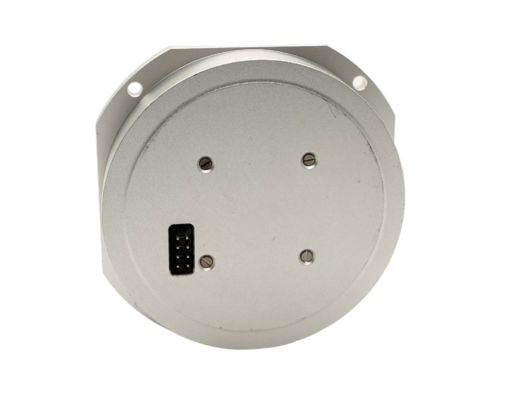

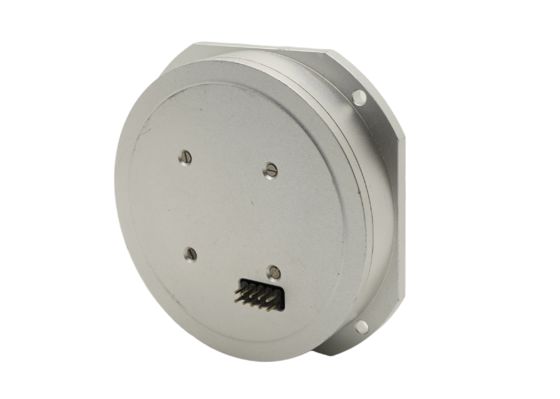

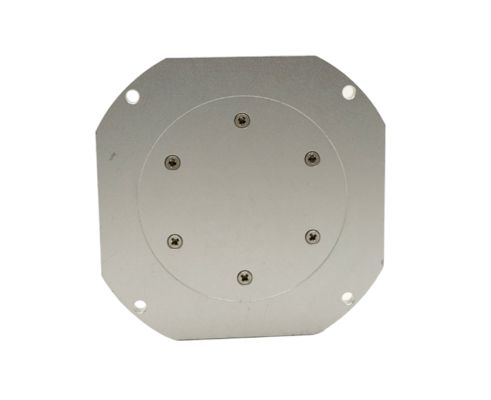

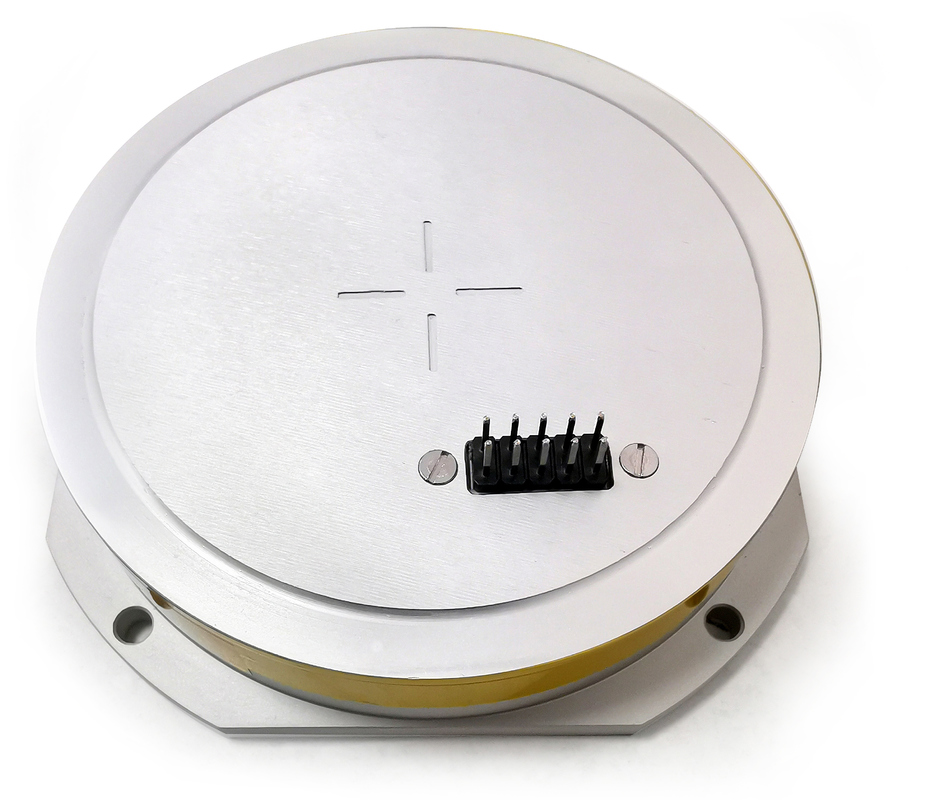

Integrated Photonic Chip Fiber Optic Gyroscope with Low Drift

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5 + 0.25 + 12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

The MFOG-910 Fiber Optic Gyroscope integrates optics, mechanics, and electronics in one solid-state design. Based on the Sagnac effect, it detects angular motion with high sensitivity and stability.

Its fast startup, low power consumption, and robust structure make it suitable for attitude control, stabilization, and motion measurement in demanding environments.

Mechanical and Electrical Interfaces
