Advanced Silicon Photonic Chip Fiber Optic Gyroscope FOG with Fast Startup

Brand Name:	Firepower
Model Number:	MFOG910
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Stability:

≤0.8°/h

Measuring Rsnge:

±240°/s

Power Supply:

5±0.15V

Scale Factor Asymmetry:

≤1000ppm

Communication Mode:

RS422

Bandwidth:

≥1000Hz

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

High Accuracy Two Axis Turntable

Temperature Chamber Two Axis Turntable

Product Description

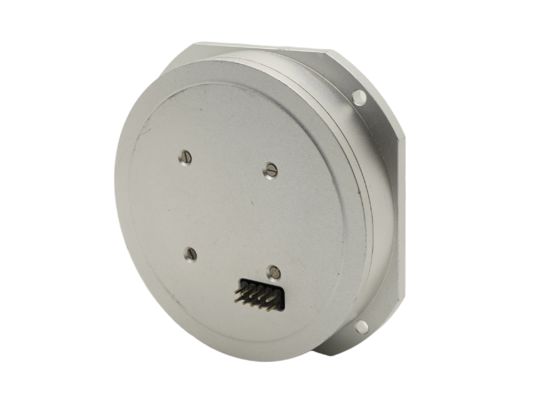

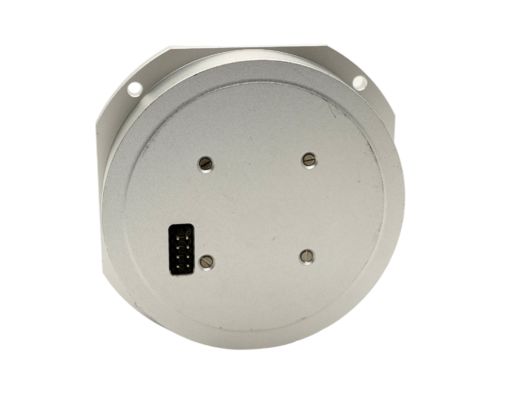

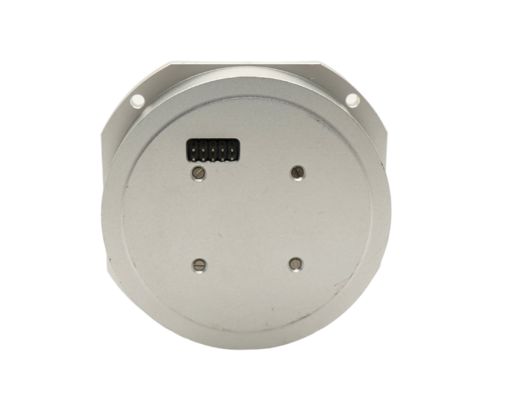

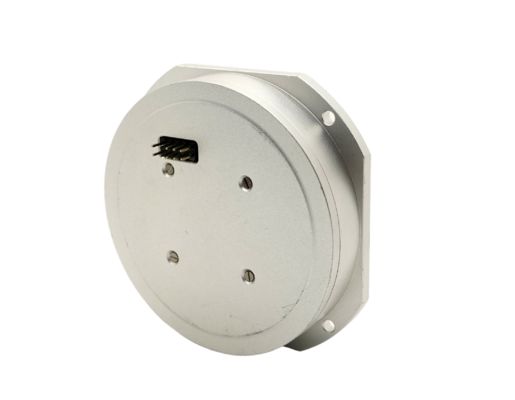

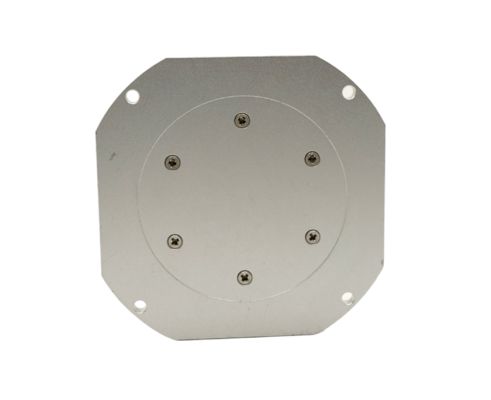

MFOG-910 Micro-Nano Fiber Optic Gyroscope

The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor based on the Sagnac effect. It integrates optical, mechanical, and electronic technologies to measure angular velocity with exceptional accuracy.

Featuring a solid-state design with no moving or wearing parts, it ensures high reliability, compact size, low weight, and fast startup. Ideal for attitude control and navigation of UAVs, vehicles, ships, and aerospace platforms.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Main Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5 +0.25 +12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000
