Cost Effective Fiber Optic Gyro for Agricultural Machinery Autopilot

Name: Cost Effective Fiber Optic Gyro for Agricultural Machinery Autopilot
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 800 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	800$
Payment Terms:	L/C,T/T
Supply Ability:	500pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Range:

±500°/s

Scale Factor:

3600LSB°/s

Zero-bias Stability:

≤1.5°/s

Zero-bias Repeatability:

≤1.5°/s

3dB Band Width:

≥300Hz

Dimension:

φ24X39mm

Packaging Details:

BOX

Supply Ability:

500pcs

Highlight:

Position 3 Axis Turntable

3 Axis Turntable UUT

Temperature Box 3 Axis Turntable

Product Description

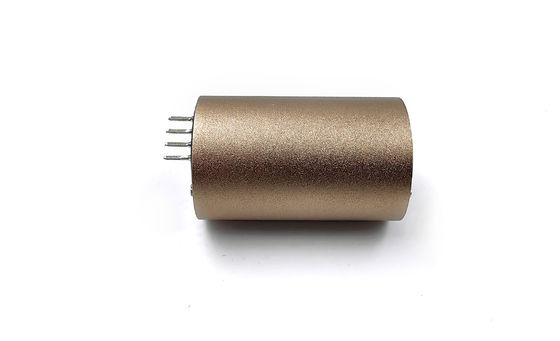

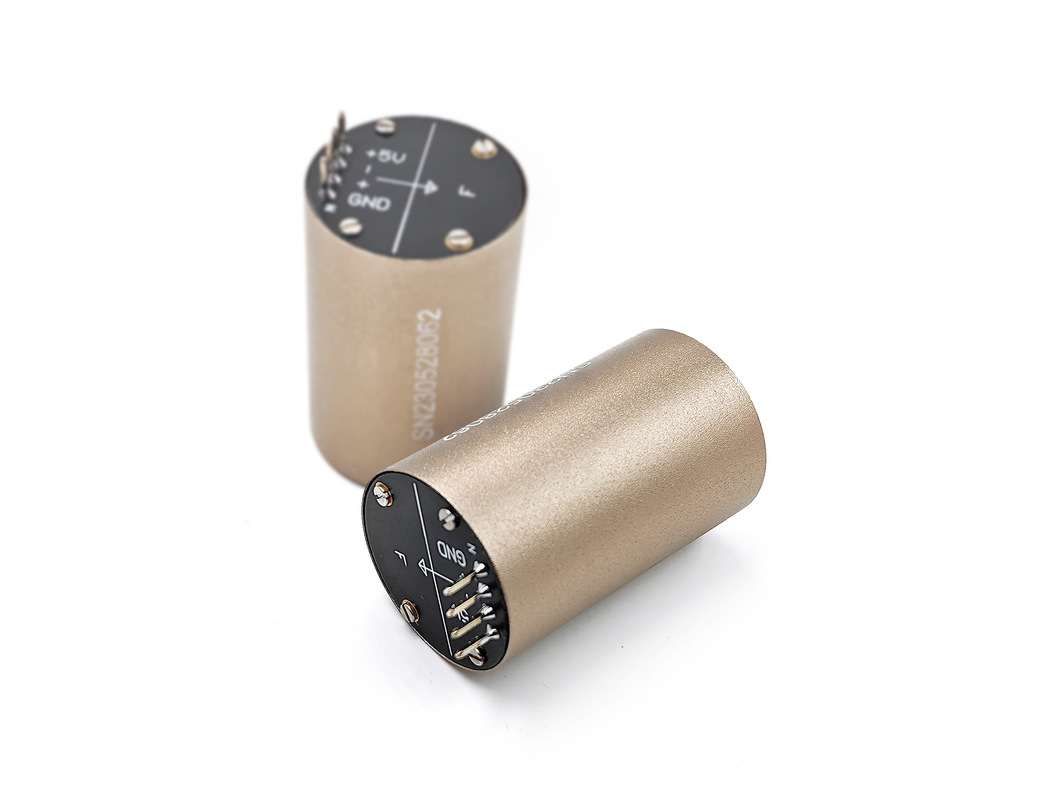

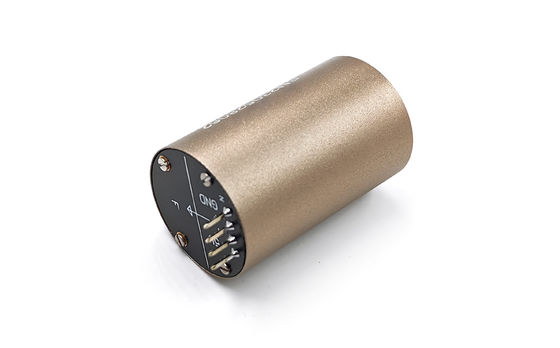

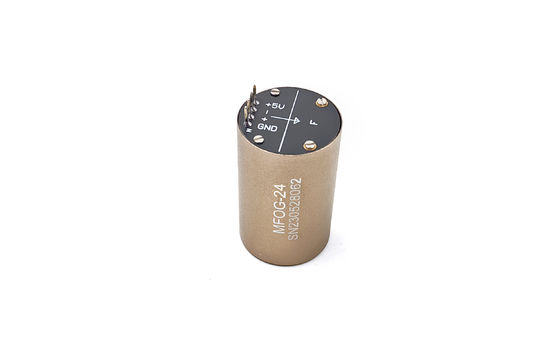

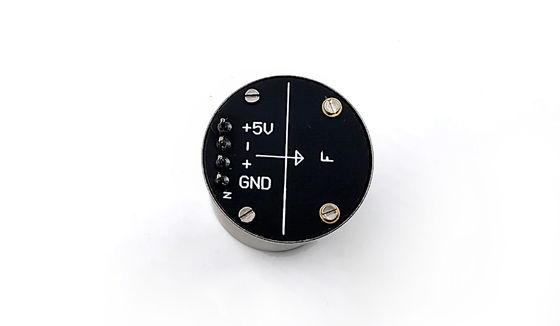

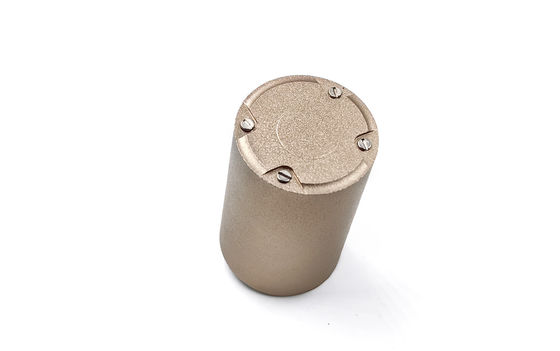

Cost Effective Fiber Optic Gyro for Agricultural Machinery Autopilot

The MFOG-24 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Utilizing the Sagnac effect and incorporating multiple micro-nano fiber devices, it precisely measures phase differences between counter-propagating light beams to determine angular velocity.

This compact sensor features a robust design with no moving parts, ensuring fast startup, minimal wear, and reliable performance. Its small form factor and lightweight construction make it ideal for attitude control and measurement applications in various carrier systems.

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber optic ring skeleton, housing, and structural components

Physical Specifications

Appearance: Cylindrical design
Dimensions: φ24mm × 39mm
Weight: ≤30g

Outline drawing of MFOG-24 micro-nano fiber optic gyroscope

Environmental Specifications

Operating Temperature: -40℃ to +65℃
Storage Temperature: -55℃ to +85℃
Random Vibration: 20g (20Hz - 2000Hz)

Performance Parameters

Serial No.	Project	MFOG-24	MFOG-24-AN
1	Range (°/s)	±500	±300
2	Scale factor	3600(LSB/o/s)	7mv/o/s
3	Scale factor nonlinearity (ppm)	300	≤1000
4	Zero-bias stability (10s, 1σ, °/h)	≤1.5	≤2
5	Zero-bias repeatability (1σ, °/h)	≤1.5	≤2
6	Angular random walk (°/h 1/2)	≤0.03	≤0.04
7	Zero bias (°/s)	≤0.02	≤0.05
8	3dB Band Width (Hz)	≥300	≥450
9	Power supply (V)	5+0.15	5+0.15
10	Power Consumption (W)	≤1.5	≤0.7
11	Dimension (mm)	φ24×39
