Fog Integrated Inertial Navigation System Ins Rs422 Interface

Fog Integrated Inertial Navigation System Ins Rs422 Interface
Features Gallery Product Description Request A Quote
Product Name: Inertial Navigation System
Azimuth Accuracy: 0.1 Deg
Roll Accuracy: ≤0.1 Deg
Pitch: ≤0.1 Deg
Speed Accuracy: 0.1m/s
High Light:

Integrated Inertial Navigation System


FOG Inertial Navigation System

Basic Infomation
Place of Origin: China
Brand Name: avic
Certification: CE ROHS
Model Number: INS150
Payment & Shipping Terms
Packaging Details: sponge+carton
Delivery Time: 30 day for sample
Payment Terms: T/T
Supply Ability: 200/month
Product Description

FOG integrated inertial navigation system low cost INS



Azimuth accuracy Parameter 150A 150B 150C 150D
(2m Baseline) 0.1 deg 0.1 deg 0.1 deg 0.1 deg
Satellite signal loss 0.01deg /5min 0.015deg /5min 0.02 deg /5min 0.025deg /5min
0.06 deg /1h 0.09 deg /1h 0.12 deg /1h 0.15 deg /1h
attitude Roll ≤0.1 deg ≤0.2 deg ≤0.5deg ≤0.8 deg
Pitch ≤0.1 deg ≤0.2 deg ≤0.5 deg ≤0.8 deg

Combined external


Speed accuracy 0.1m/s
Single point positioning accuracy DGPS accuracy 0.5m /RTK accuracy 2cm
Directional accuracy 0.1deg,(2m Baseline)
measure measuring range Azimuth ±180 deg
Roll angle ±90 deg
Pitch angle ±90 deg
angle speed ±300 deg/s
Acceleration ±4 g
interface characteristic power supply 9~36 VDC, ≤3 W @ 24VDC
Output interface RS422
Data update rate 100 Hz @ 115,200 baud rate
Use environment Operating temperature -40°C ~ +60°C
storage temperature -55°C ~ +85°C
physicalcharacteristic size 153 ×142 × 115 mm(Designable)
weight ≤1000 g
Connector Y11P-1210ZK10

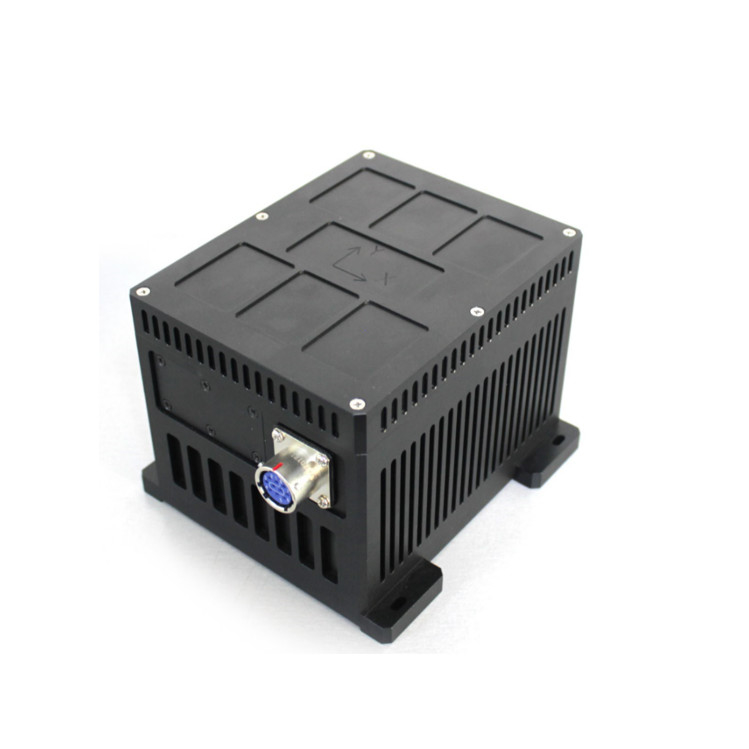

Fog Integrated Inertial Navigation System Ins Rs422 Interface 0
