Single Axis Fiber Optic Gyro , Low Bias Fiber Optical Gyro

Name: Single Axis Fiber Optic Gyro , Low Bias Fiber Optical Gyro
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Sensor Name:

Low Bias Gyro

Bias Stabillity:

≤1°/h

Interface:

RS-422

Dynamic Range:

±150°/s

Power:

≤1W

Operating Temperature:

-40°C To 85°C

Baud Rate:

921600 (Customizable)

Overall Dimension:

40mm × 20mm

Packaging Details:

sponge+box

Supply Ability:

100/month

Highlight:

Servo Tracking Fiber Optic Gyro

50ppm Gyro Sensor

RS-422 Fiber Optical Gyro

Product Description

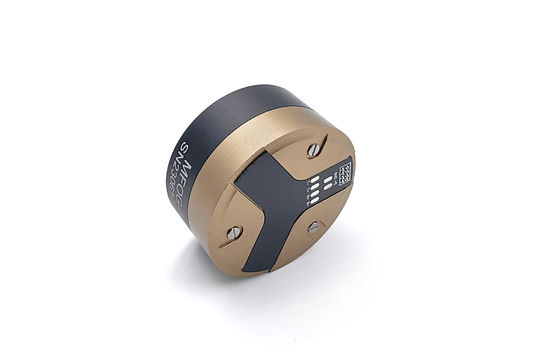

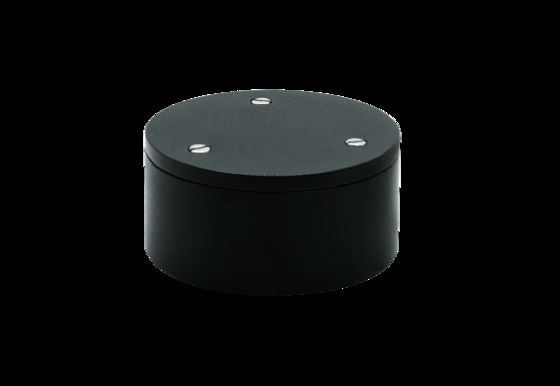

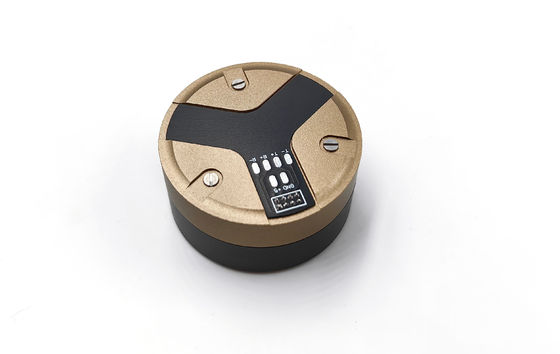

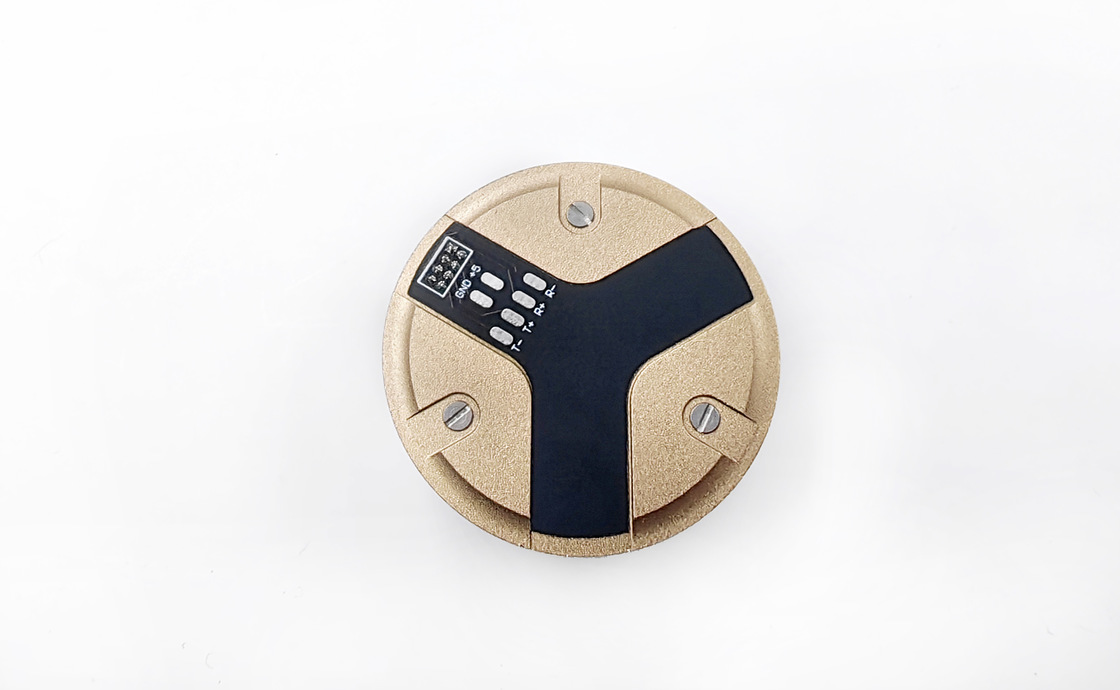

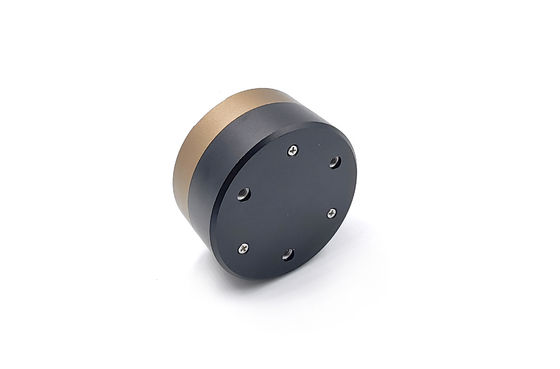

Single Axis Fiber Optic Gyro (MFOG-1703)

The MFOG-1703 is a precision micro-nano fiber optic gyroscope based on the Sagnac effect, integrating optics, electronics, and mechanics in a compact form factor (φ40×20mm, ≤40g). Featuring no moving parts, fast startup, and excellent vibration resistance (20g, 20–2000Hz), it is perfectly suited for stabilization, navigation, and attitude measurement. Fully compatible with Fizoptika VG1703.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Physical Specifications

Dimensions:

φ40mm × 20mm (cylindrical)

Weight:

≤40g

Environmental Specifications

Operating Temperature:

-40℃ to +70℃

Storage Temperature:

-55℃ to +85℃

Random Vibration:

20g, 20Hz to 2000Hz

Performance Parameters

Parameter	Specification
Range (°/s)	±150
Scale factor (mV/°/s)	12±1.2
Zero-bias stability (10s, 1σ, °/h)	≤1
Zero-bias repeatability (1σ, °/h)	≤1
Angular random walk (°/h 1/2)	≤0.02
Zero-bias temperature sensitivity (uV/°C)	≤1
Scale Factor Temperature Sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450

Power Requirements

Parameter	Specification
Voltage	4.75V to 5.25V
Ripple	20mV
Current	0.2A
