Temperature Chamber 2 Axis Turntable Precise 20kg Load Capacity

1
MOQ
Temperature Chamber 2 Axis Turntable Precise 20kg Load Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 2 Axis Turntable
Load Capacity: 20kg
Diameter: Ø400mm
Table Facet Flatness: 0.01mm
Flux Leakage: <4 Gauss
Angular Position Measure Accuracy: ±3''
High Light:

Temperature Chamber 2 Axis Turntable

,

2 Axis Turntable Precise

,

2 Axis Turntable 20kg Load

Basic Infomation
Place of Origin: CHINA
Brand Name: avic
Model Number: 2TS-400
Payment & Shipping Terms
Delivery Time: 6 month
Payment Terms: T/T
Product Description

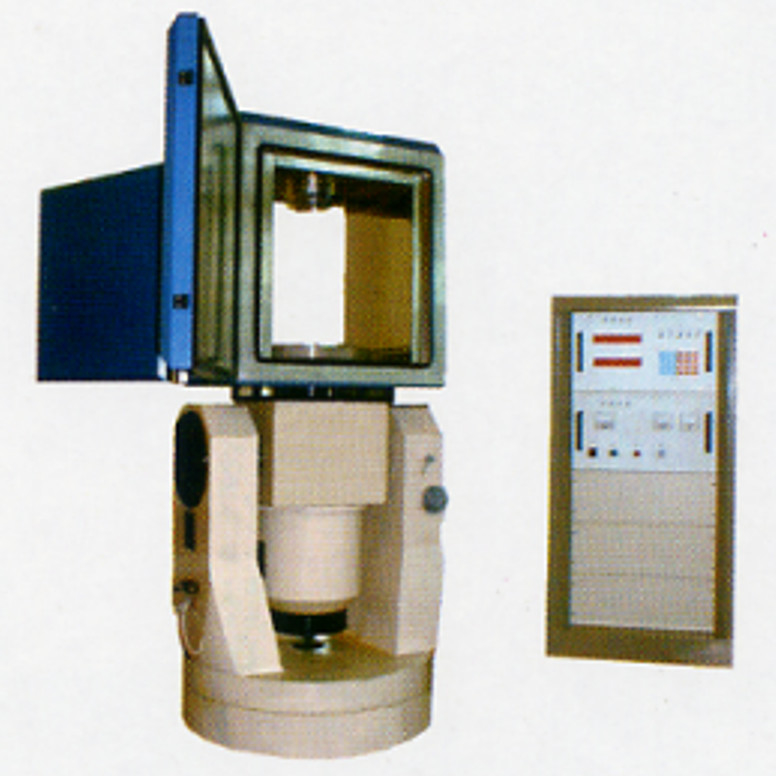

precise dual axis rate position turntable with temperature chamber



dual axis rate position turntable with temperature chamber is used to measure and calibration of dynamic and static parameters of inertial device and system under normal temperature, high&low temperature. It has over-rate, over-current, over-voltage, emergency power off protection function. The temperature chamber adopts two-door.



Main technical parameters



Turntable
Load capacity 20kg
Table facet diameter Ø400mm
Table facet flatness 0.01mm
Table facet jerk value 0.015mm
Table facet flux leakage <4 gauss(10mm from table facet)
Inclination rotary accuracy Main axis: ±1’’; pitch: ±2’’
Axes perpendicularity ±2’’
Rotary angle range Main axis: continuous; pitch: ±95°
Working mode

Inner loop: power-driven, position, rate, sway;

outer loop: manual position

Slip rings 80 rings
Electric control cabinet 19’’ standard cabinet, height: 1600mm
Angular position measure accuracy ±3’’
Angular position measure resolution 0.36″
Angular position measure repeatibility ±2″
rate range 0.001°/s~400°/s
rate range and smoothness 5 x 10-3(360° interval)
Max acceleration ≥200°/s2(payload 20kg)
Max angular acceleration 200°/s2
Temperature chamber
Temperature control range -50°c~+70°c(water cooling)
Temperature accuracy and smoothness ±0.5°c
Distance from Inner wall to table facet 500mm
Temperature rise and drop rate 2°c/min
